62D4036 17
BBV, SBV Series Natural Vent Gas Fireplaces ELECTRICAL INSTALLATION
Verify proper operation after servicing.
REMOTE WALL MOUNTED SWITCH
A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach
the wall switch in a junction box at the desired location on the wall. Figure 16. Do not extend beyond
the wall switch wire length provided.
NOTE: Extended lengths of wire may cause the fireplace not to function properly. Longer length
of wire is permitted if the wire is made out of larger gauge (diameter) wire. Always check with
local codes.
W
ARNING
Electrical connections should only be performed by a qualified, licensed
electrician. Main power must be off when connecting to main electrical
power supply or performing service. All wiring shall be in compliance
with all local, city and state codes. The appliance, when installed, just be
electrically grounded in accordance with local codes, or in the absence
of local codes, with the National Electrical Code ANSI/NFPA 70 (latest edi-
tion) and Canadian Electrical Code, CSA C22.1.
CAUTION
Label all wires before disconnecting
when servicing controls. Wiring errors
can cause improper and dangerous op-
eration.
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
PILOT HI
O L
NO FF O TH
TP
TH/TP
ON
OFF
SPILL
SWITCH
RS
&0
""63"6
W
ARNING
Do not connect wall switch to AC
(110 V) circuit.

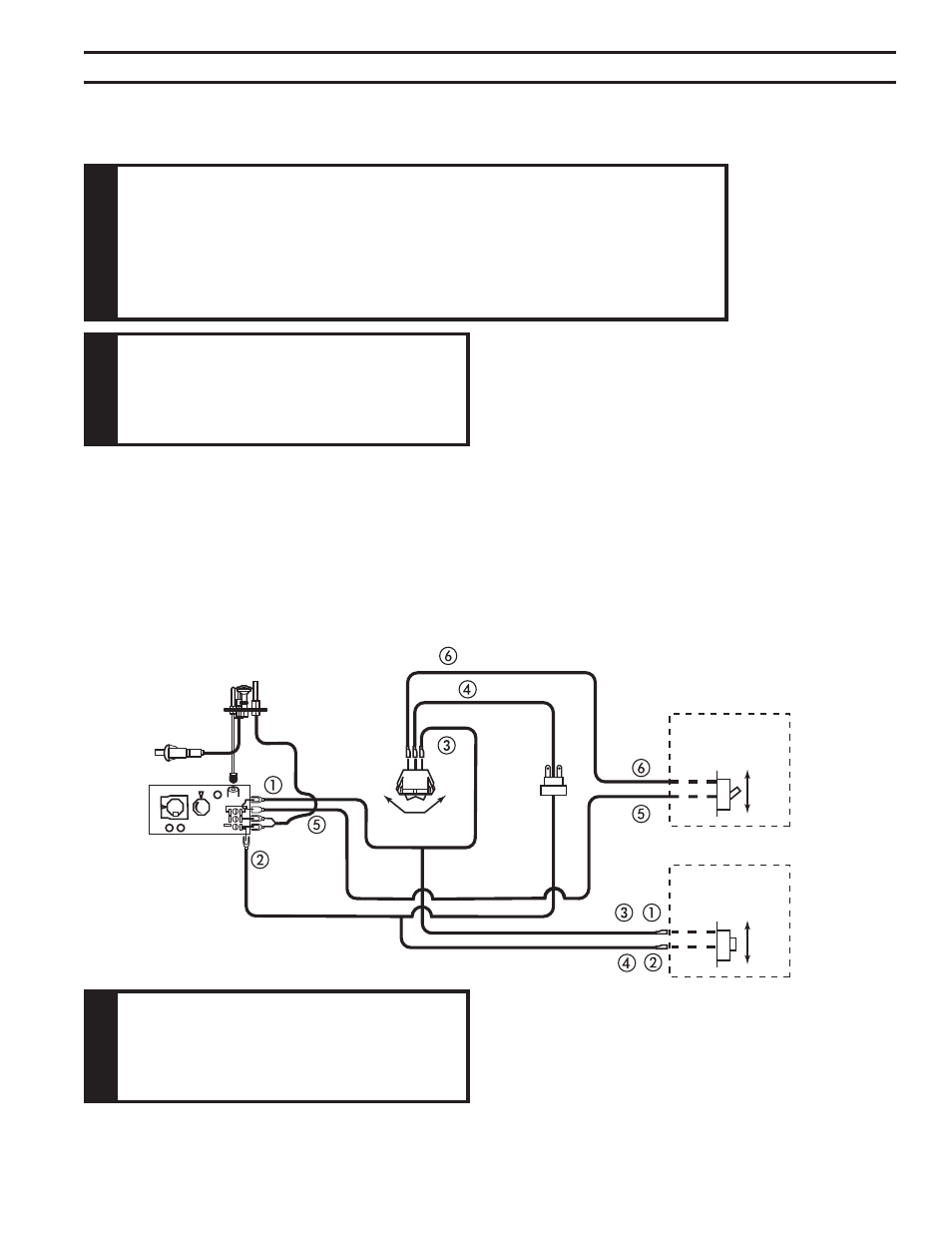

ELECTRICAL WIRING
Figure 16 -
Wall Switch Wiring Diagram
