Grounded tools require a three wire exten-
sion cord. Double insulated tools can use
either a two or three wire extension cord.
As the distance from the supply outlet
increases, you must use a heavier gauge
extension cord. Using extension cords with
inadequately sized wire causes a serious
drop in voltage, resulting in loss of power
and possible tool damage. Refer to the table
shown to determine the required minimum
wire size.
The smaller the gauge number of the wire,
the greater the capacity of the cord. For ex-
ample, a 14 gauge cord can carry a higher
current than a 16 gauge cord. When using
more than one extension cord to make up
the total length, be sure each cord contains
at least the minimum wire size required. If
you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum wire size.
Guidelines for Using Extension Cords
• If you are using an extension cord out-
doors, be sure it is marked with the suffi x
“W-A” (“W” in Canada) to indicate that it
is acceptable for outdoor use.
• Be sure your extension cord is prop-
erly wired and in good electrical
condition. Always replace a damaged
extension cord or have it repaired by a
qualifi ed person before using it.
• Protect your extension cords from sharp
objects, excessive heat and
damp or wet areas.
READ AND SAVE ALL INSTRUCTIONS FOR FUTURE USE.
Recommended Minimum Wire Gauge
for Extension Cords*
Extension Cord Length
* Based on limiting the line voltage drop to
fi ve volts at 150% of the rated amperes.
Nameplate
Amperes
0 - 2.0
2.1 - 3.4
3.5 - 5.0
5.1 - 7.0
7.1 - 12.0
12.1 - 16.0
16.1 - 20.0
25'
18
18
18
18
16
14
12
75'
18
18
16
14
12
10
100'
18
16
14
12
10
150'
16
14
12
12
50'
18
18
18
16
14
12
10
Double Insulated
Symbology
Underwriters Laboratories, Inc.,
United States and Canada
Volts Alternating Current/
Direct Current
No Load Revolutions per
Minute (RPM)
Amps
EXTENSION CORDS
Specifi cations
Depth of Cut
at 45°
0 to 1-13/16”
Blade
Size
7-1/4”
Cat.
No.
6391
Depth of Cut
at 90°
0 to 2-15/32”
Arbor
5/8”
No Load
RPM
5800
Volts
AC/DC
120
Amps
15
9
8
7
6
5

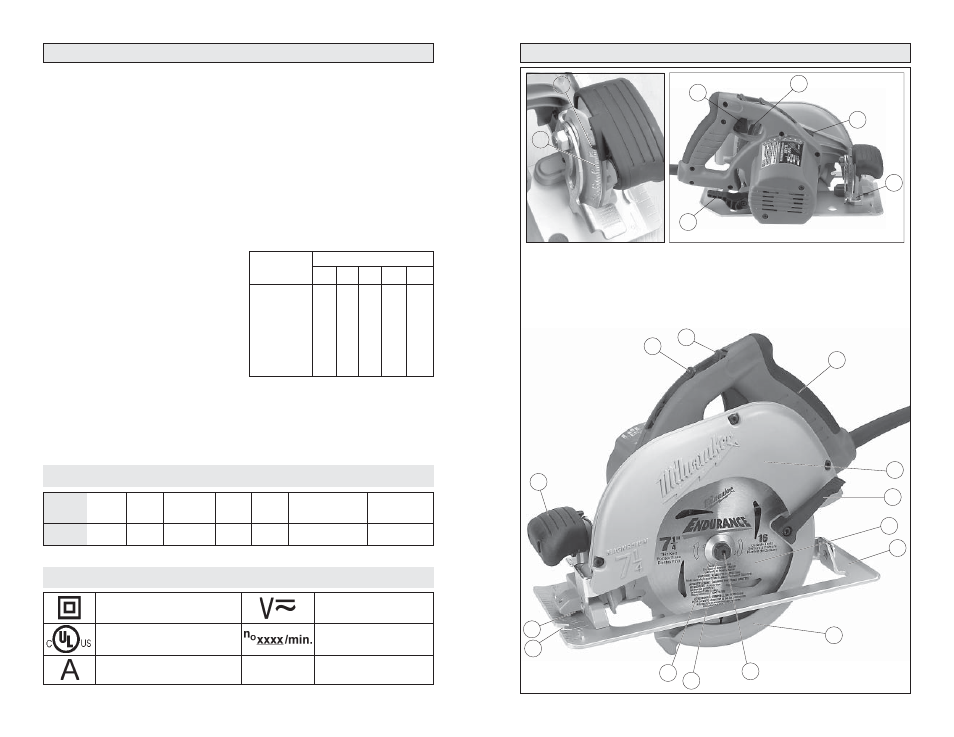

FUNCTIONAL DESCRIPTION
3
4
19
20
21
2
1
10
11
12
13
14
16
15
17
18
1. Handle release lever
2. Handle lever release button
3. Bevel
scale
4. Bevel
pointer
5. Depth adjusting lever
6. Trigger
7. Depth setting gauge
(not
shown)
8. Spindle lock button
9. Bevel adjusting lever
10. Tilt-Lok™ handle
11. Upper guard
12. Lower guard lever
13. Blade
14. Shoe
15. Lower guard
16. Blade bolt
17. Outer blade fl ange
18. Inner fl ange (not shown)
19. Sight line
20. Rip fence slot
21. Front handle
