eG-05012B page 2 of 2
Specifications
Mounting (Cut-out) Dimensions:
7.05 x 5.25 x 2.76 in. (179 x 133 x 70 mm)
Mounting Screws:4, #6-32 screws and Nitrile
rubber O-ring supplied to meet NEMA4 specs.
Case Material:
Black Polycarbonate, textured finish, UV stabilized.
Connection:
600V rated multi-wire quick connect for DC con-
nections, suitable for wire harnessing.
Power supply:
Operates from any 8-35VDC supply, continuous.
Brownout (5V) ridethrough is 5 seconds and a total
blackout (0V) ridethrough of 100 milliseconds.
Communications:
– 1 - RS232 port
– 1 - RS485 port
– 1 - RS232/RS485 port
– 1 - J1939 port
Display: 64 x 128 pixel full graphic LCD display
with backlight.
Faceplate Keypad: 12-position keypad.
Vibration/Survivability:
3g, 3 axis, frequency swept 10-1000 Hz.
Operating/Storage Temperature Range:
–40/+185°F (–40/+85°C).
LCD Operating Range:
–4/+176°F (–20/+80°C).
I/O’s:
– 24 - Digital inputs
– 8 - Analog inputs (one dedicated for battery)
– 1 - Magnetic pickup input
– 8 - 20A Form “C” relays.
Shipping Dimensions:
10 x 9 x 6 in. (254 x 229 x 152 mm)
Shipping Weights:
2 lb. (910 g.).
Performance Specs
SAE Load Dump Test
How to Order
Call Murphy’s I.P.D. (Industrial Panel Division)
for Ordering, Application and Configuration
Assistance.

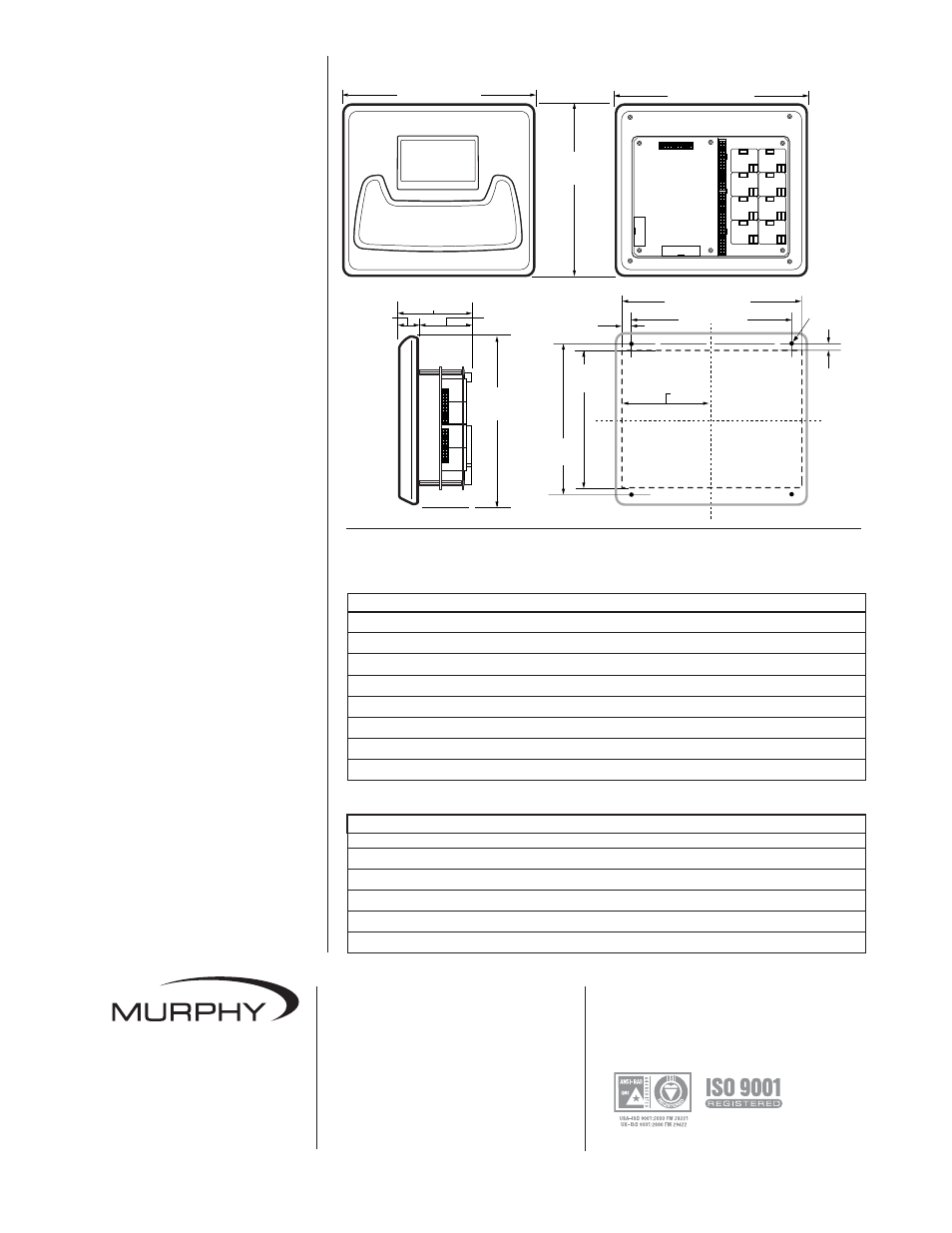

Dimensions
7.5 in. (191 mm) 7.5 in. (191 mm)
BACK
SIDE
2.41 in.
(61 mm)
0.46 in.
(12 mm)
3.18 in. (81 mm)
6.25 in.
(159 mm)
6.25 in.
(159 mm)
5.650 in.
(144 mm)
5.25 in.
(133 mm)
0.2 in.
(5 mm)
0.20 in. dia.
4 places
7.05 in. (179 mm)
CUT-OUT
6 in. (152 mm) 0.525 in.
(13 mm)
3.525 in. (90 mm)
CL
Wire Harnessing
Senders and End Devices
Accessories
75-00-0074 4-position power connector; 12 ft (3.65 m) wire leads.
75-00-0075 10-position comm. connector—J1939, RS232, RS485; 12 ft. (3.65 m) wire lead
75-00-0076 10-position communications connector - RS232, RS485
75-00-0077 Digital Inputs 1-8; 12 ft. (3.65 m) wire leads 12 ft. (3.65 m) wire leads
75-00-0078 Digital Inputs 9-24; 12 ft. (3.65 m) wire leads
75-00-0079 Analog Inputs, Magnetic Pickup; 12 ft. (3.65 m) wire leads
75-00-0080 ESD Jumper; 0.2 feet (61 mm) wire leads
75-00-0089 Serial Port PC Programming Cable Assembly; 6 ft. (1.8 m) wire leads
05-70-1858 0-100 psi Oil pressure sender
10-70-2013 300 °F (150°C) Coolant temperature sender
15-70-0116 EL150K1 Oil level indicator and low oil level shutdown
15-70-0104 L129 high/low Oil level indicator and shutdown
15-70-0660 LM2000 Engine oil replenisher and low oil level shutdown
05-70-6345 PXMS-100 4-20mA Pressure sender 100 psi
Part Number Description
Part Number Description
