Monessen Hearth 424WBST - Manual (Page 4)

4
424WBST Designer Woodburning Fireplaces
87D1506
FP701a
424WBST Woodburning Fireplace

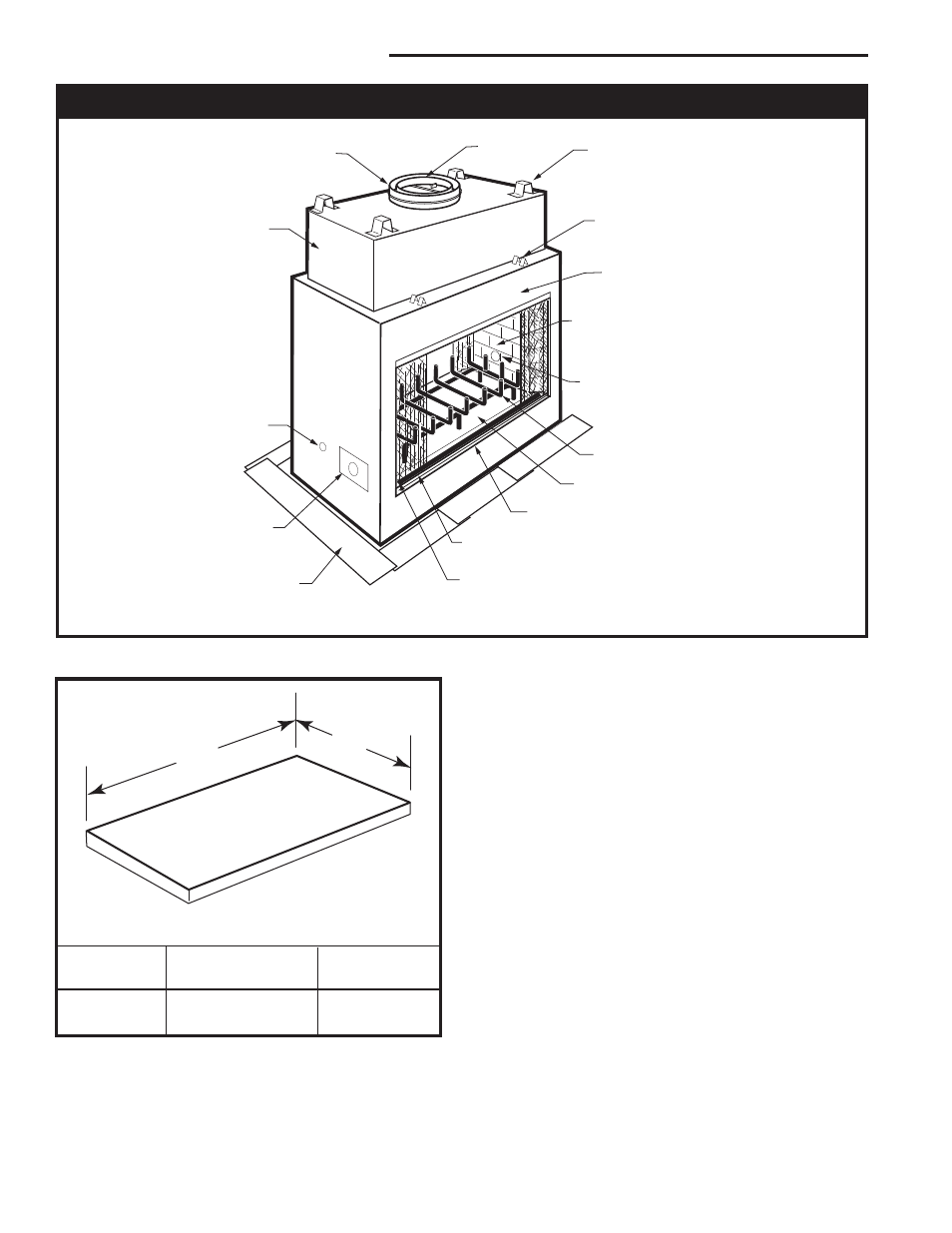

Fig. 3 424WBST Parts Identification.
A
B
FP1545
hearth dimensions
1/05
Front/Back Width Side Width
A B
424WBST 29" 17Z\,"
(737 mm) (435 mm)
FP1545
Fig. 3a Hearth dimensions.
FP701a
STR Parts ID
Gas Line
Access
Outer
Dome
Outside Air
Access
Ledge Brackets
Header Standoffs
Flue Damper Control
(Inside)
Flue Collar
Outer Collar
Gas Line Knock-out
(Both Sides)
Brick liner on
Sides and Hearth
Air Inlet
Hearth
Wood Grate
Firebox
Metal Safety Strips,
shown not in place
(1, 2, or 3 Pieces)
Outside Air
Control
