424WBST Designer Woodburning Fireplaces
87D1506
961
MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without
notice.
5
1, 2, 3
4
6
7
a
b
c
d
8
9
10
11
961
STR parts
5/16/00 djt
12

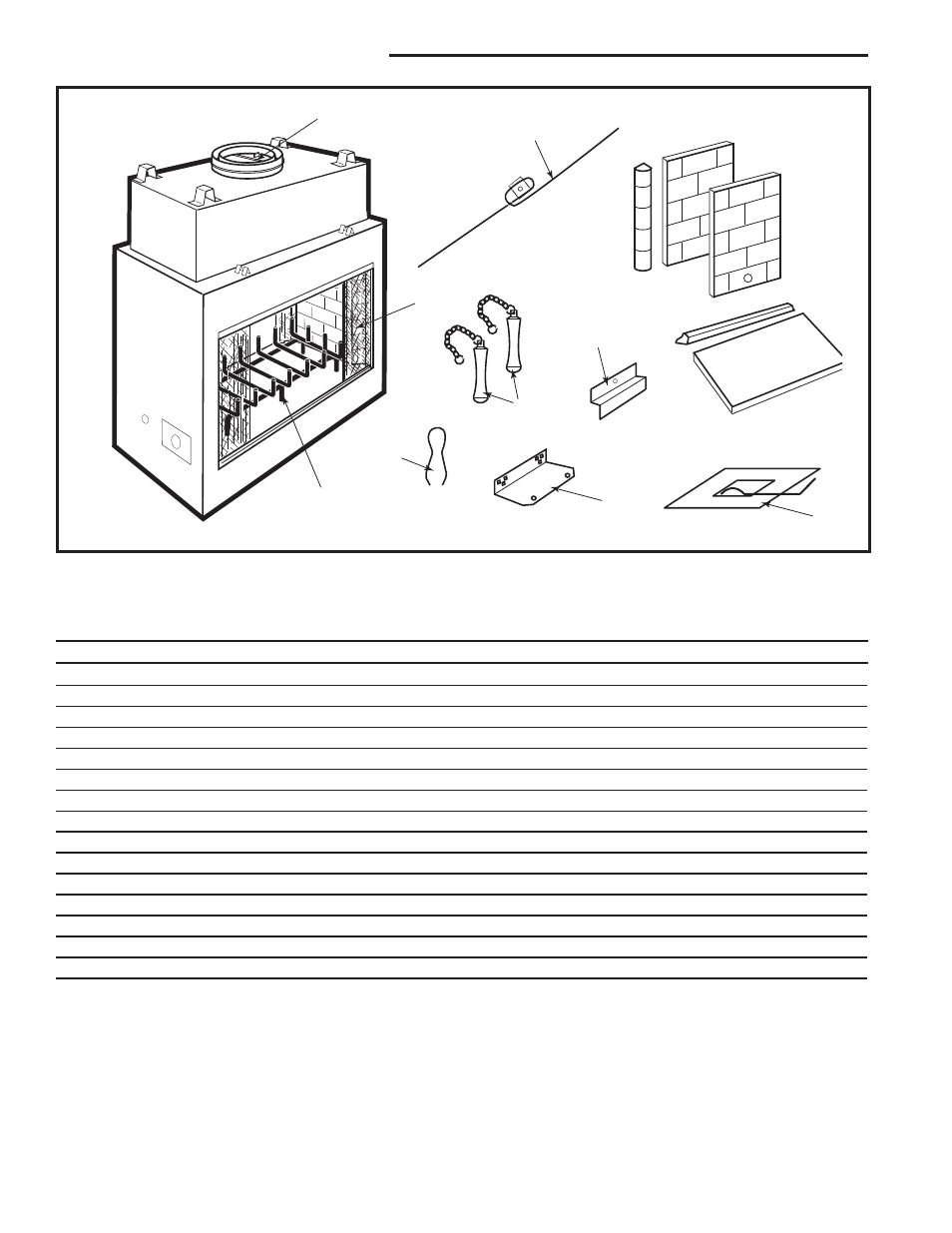

424WBST Woodburning Fireplace
Ref. Description 424WBST
1. Flue Damper RP102
2. Damper Handle 7548170
3. Damper Handle Push Nut 7512903
4. Screen Rod Assembly (two per fireplace) 3030126
5. Screen Assembly (four per fireplace) 7554338
6. Screen Pulls (four per fireplace) 5584139
7a. Firebrick - Hearth 3102103
7b. Firebrick - Side Ashlip (two per fireplace) 3102102
7c. Firebrick - Side (two per fireplace) 9079147
7d. Side Filler (four per fireplace) 3079148
8. Top Brick Retainers (four per fireplace) 3079130
9. Cable Clips (eight per fireplace) 7512135
10. Nailing Flange (eight per fireplace) 5069164
11. Basket Grate 2056100
12. O.S.A. Assy. 20003212
