Part names and functions
For buttons not explained here, see the page indicated in parentheses ( ).

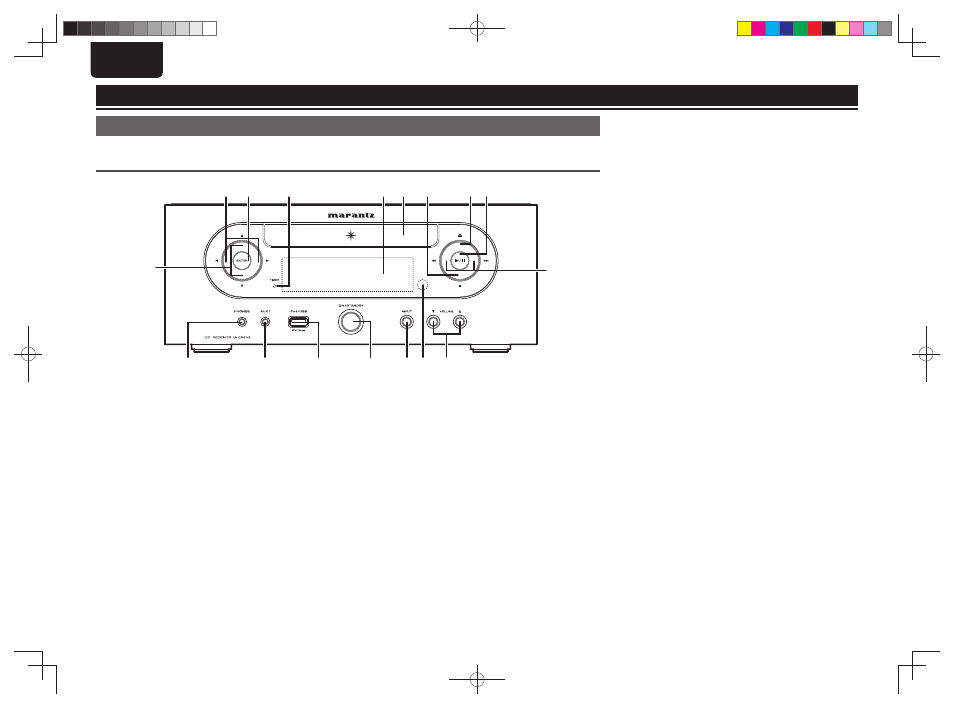

Front panel
Q6
Q4 Q3 Q2 Q0 o Q1
i
Q5 Q6
q r y u e w t
q Headphones jack (PHONES) ··················································· (13)
Used to connect headphones.
w AUX1 input jack ······································································· (25)
Used to connect portable audio devices.
e USB port (iPod/USB) ······························································ (10)
Used to connect USB devices.
r Power operation button (ON/STANDBY) ····························· (11)
t INPUT button ··········································································· (12)
Selects the input source.
y Remote control sensor ····························································· (4)
u Volume up/down button (VOLUME df) ······························ (12)
Adjusts the audio volume.
i Reverse-skip/Forward-skip buttons (8, 9) ·················· (13)
o Play/Pause button (1/3) ························································ (13)
Q0 Disc tray open/close button (5) ············································· (13)
Used to open/close the disc tray.
Q1 Stop button (2) ······································································· (13)
Q2 Disc tray ····················································································· (3)
Tray used to insert a compact disc.
Q3 Display
Displays play status, settings, etc.
Q4 TIMER indicator ······································································· (28)
Q5 ENTER button ·········································································· (12)
Used to confi rm an item.
Q6 Cursor button (uiop) ·························································· (12)
