34
ENGLISH

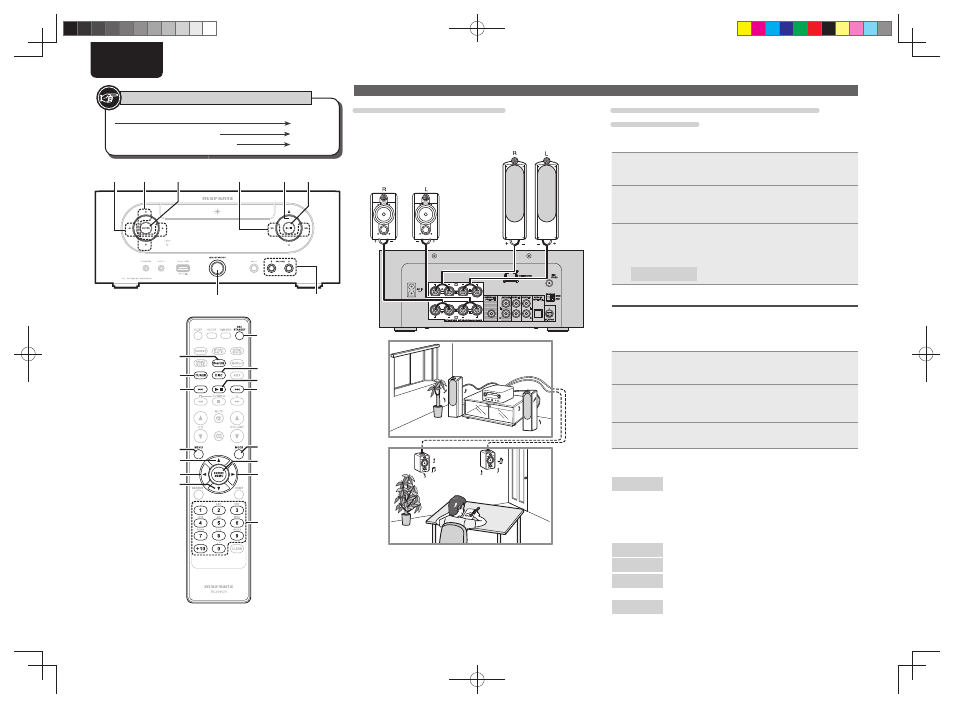

Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to the unit, and be
sure to connect the channels and polarities correctly.
M-CR603
Setting the others [Other]
Button located on both the main unit and the remote control
BUTTON
Button only on the main unit Button only on the remote control [BUTTON]Symbols used to indicate buttons in this guide[NUMBER]up[ENTER/MEMO]io[TUNER][DISC][iPod/USB][MENU]8913[MODE]ON/STANDBYdf>ON/STANDBYu/i<5>o/p8 913 Adjusting the audio level balance between
speakers A and BWith the output of Speaker A fi xed, the audio level of Speaker B can
be adjusted within the range –6 dB to +6 dB.1Press [MENU].Turns on the Menu settings mode and the Menu appears on the
display. (vpage 26 “Menu map”)2Use ui to select “Other”-“Speaker Setup”-“Volume Offset”, then press [ENTER/MEMO], or p.3Use ui to ajust volume offset, then press [ENTER/MEMO], or p.[Adjustable range]-6 dB, 0 dB, +6 dB Setting AMP characteristics• Amp properties can be changed according to the location speakers are installed.• Five types of characteristics can be selected.
• Different characteristics can be selected for Speaker A and Speaker B.1Press [MENU].Turns on the Menu settings mode and the Menu appears on the
display. (vpage 26 “Menu map”)2Use ui to select “Other”-“Speaker Setup”-“Response”, then press [ENTER/MEMO], or p.3Use ui to select the characteristics you want to set, then press [ENTER/MEMO], or p.[Selectable items]FLAT Properties are fl at. (Default) This enhances bass frequencies when speakers are
placed directly on furniture or on a rack. If you feel that there is too much bass, select your
favorite properties from among RESPONSE1 to
RESPONSE4.RESPONSE 1 Cuts low frequencies 60 Hz or under by –12 dB/oct.RESPONSE 2 Cuts low frequencies 100 Hz or under by –12 dB/oct.RESPONSE 3 Cuts low frequencies 60 Hz or under by –12 dB/oct. Also, raises the 400 Hz region by 3 dB.RESPONSE 4 Cuts low frequencies 100 Hz or under by –12 dB/oct. Also, raises the 400 Hz region by 3 dB.
Button only on the remote control [BUTTON]
Symbols used to indicate buttons in this guide
[NUMBER]
u
p
[ENTER/MEMO]
i
o
[TUNER]
[DISC]
[iPod/USB]
[MENU]
8 9
13
[MODE]
ON/STANDBY
df> ON/STANDBY
u/i <5> o/p 8 9 13
Adjusting the audio level balance between
speakers A and B
With the output of Speaker A fi xed, the audio level of Speaker B can
be adjusted within the range –6 dB to +6 dB.
1 Press [MENU] .
Turns on the Menu settings mode and the Menu appears on the
display. (vpage 26 “Menu map”)
2 Use ui to select “Other”-“Speaker Setup”-
“Volume Offset”, then press [ENTER/MEMO] ,
or p .
3 Use ui to ajust volume offset, then press [ENTER/
MEMO] , or p .
[Adjustable range]
-6 dB, 0 dB, +6 dB
Setting AMP characteristics
• Amp properties can be changed according to the location speakers
are installed.
• Five types of characteristics can be selected.
• Different characteristics can be selected for Speaker A and Speaker B.
1 Press [MENU] .
Turns on the Menu settings mode and the Menu appears on the
display. (vpage 26 “Menu map”)
2 Use ui to select “Other”-“Speaker Setup”-
“Response”, then press [ENTER/MEMO] ,
or p .
3 Use ui to select the characteristics you want to set,
then press [ENTER/MEMO] , or p .
[Selectable items]
FLAT Properties are fl at. (Default)
This enhances bass frequencies when speakers are
placed directly on furniture or on a rack.
If you feel that there is too much bass, select your
favorite properties from among RESPONSE1 to
RESPONSE4.
RESPONSE 1 Cuts low frequencies 60 Hz or under by –12 dB/oct.
RESPONSE 2 Cuts low frequencies 100 Hz or under by –12 dB/oct.
RESPONSE 3 Cuts low frequencies 60 Hz or under by –12 dB/oct.
Also, raises the 400 Hz region by 3 dB.
RESPONSE 4 Cuts low frequencies 100 Hz or under by –12 dB/oct.
Also, raises the 400 Hz region by 3 dB.
