GN-BR30N-RH 2.4GHz AirCruiser N300 Wireless Router

19

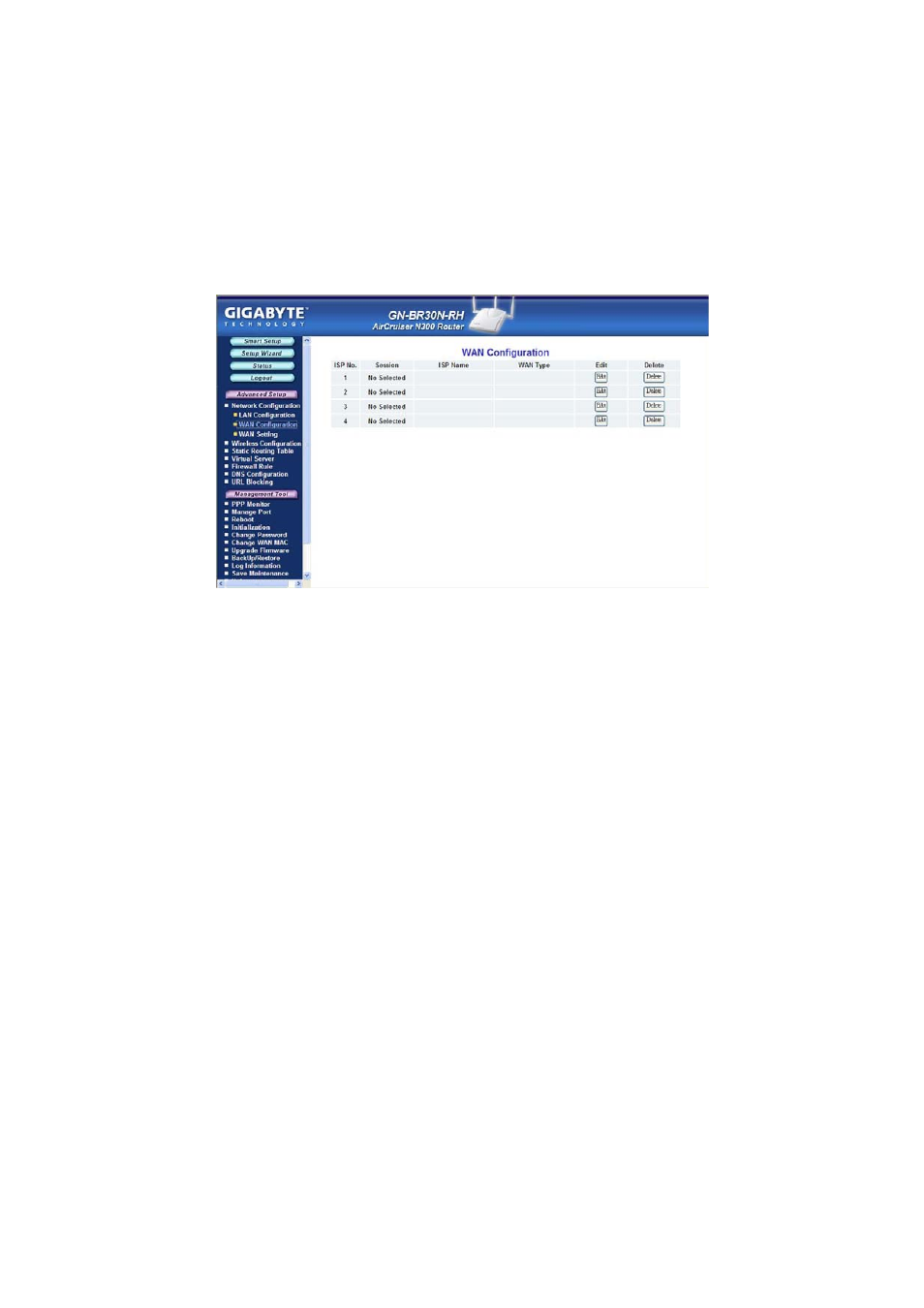

The WAN Configuration Tab


The BR30N-RH has many advanced WAN configuration features. As a
special redundant feature, you can configure up to 4 WAN connections and
each may have its own connection type (PPPoE, PPPoE Unnumber, Dynamic
IP address, Static IP address) and other properties. The device can
automatically attempt to connect to these in order if your primary connection
fails.

Click the Edit button to the right of the ISP that you wish to modify. A screen
will appear allowing you to change the Internet connection type. (see below)
Click the Next button to continue with modifications.
