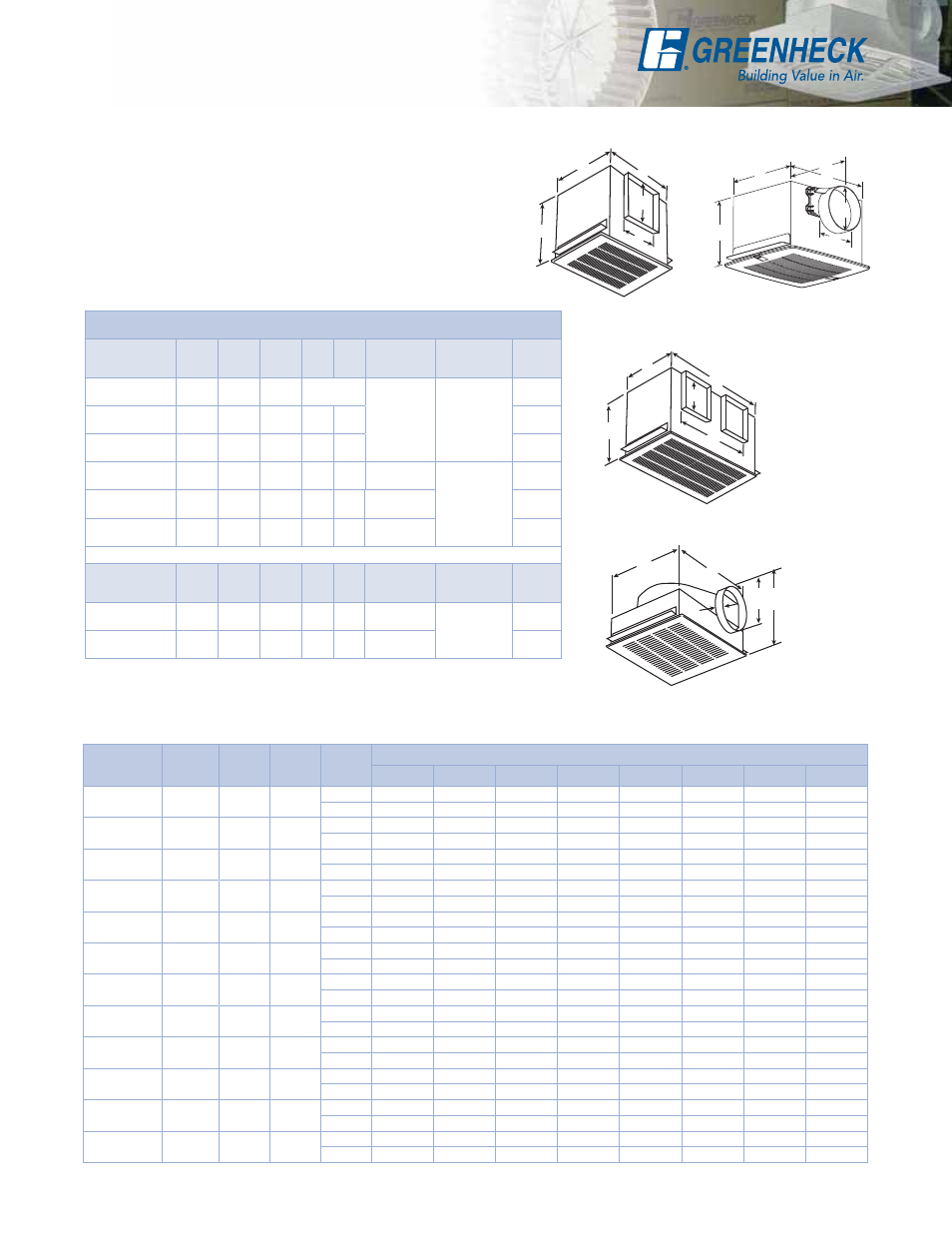

20
Model SP
50 Cycle Performance
Model RPM Amps* Watts
CFM / Static Pressure in Inches of wg.
0.000 0.050 0.100 0.125 0.150 0.250 0.375 0.500
SP-A110
(50 Hertz Motor)
950 0.29 49
CFM 119 115 110 106 103 88
Sones 1.3 1.3 1.2 1.2 1.3 1.6
SP-A190
(50 Hertz Motor)
1400 0.65 113
CFM 216 206 197 192 187 167 133
Sones 3.2 3.0 2.8 2.9 2.9 3.1 3.4
SP-A290
(50 Hertz Motor)
1050 0.36 81
CFM 329 315 302 296 290 262 222 164
Sones 3.2 3.3 3.3 3.3 3.4 3.7 4.0 4.9
SP-A390
(50 Hertz Motor)
1350 0.67 135
CFM 410 402 395 392 387 368 345 325
Sones 5.4 5.4 5.4 5.4 5.5 5.7 6.0 6.3
SP-A510
(50 Hertz Motor)
900 1.65 224
CFM 447 425 400 388 376 315 159
Sones 3.7 3.5 3.3 3.3 3.3 3.1 2.6
SP-A780
(50 Hertz Motor)
1334 1.65 348
CFM 677 659 642 633 625 591 544 493
Sones 8.8 8.9 8.8 8.7 8.6 8.2 8.1 8.1
SP-A1050
(50 Hertz Motor)
950 3.15 420
CFM 990 945 905 886 867 769 531
Sones 7.2 7.0 6.8 6.8 6.8 6.6 6.5
SP-A1550
(50 Hertz Motor)
1340 4.3 818
CFM 1337 1314 1290 1279 1266 1211 1161 1112
Sones 11.1 10.7 10.6 10.6 10.6 10.5 11.6 13.5
SP-B90
(50 Hertz Motor)
700 0.325 50
CFM 102 97 92 88 86 75 59 45
Sones 1.9 2.2 2.6 2.7 2.7 3.0 3.6 4.1
SP-B110
(50 Hertz Motor)
950 0.57 80
CFM 133 124 114 110 107 97 95 94
Sones 2.0 2.0 2.1 2.2 2.2 2.4 2.7 2.8
SP-B150
(50 Hertz Motor)
1050 0.85 129
CFM 160 158 156 155 155 154 152 149
Sones 3.0 3.1 3.3 3.3 3.4 3.7 4.3 4.5
SP-B200
(50 Hertz Motor)
1100 1.1 173
CFM 197 196 195 194 194 191 187 184
Sones 4.4 4.7 4.6 4.7 4.9 5.1 5.6 5.8
Model SP with 50 hertz motor is not AMCA certified or ENERGY STAR ® qualified.
Model SP Dimensions
SP-A A B C D E
Designer
Grille*
Decorative
Grille
Unit
Weight
50, 70, 90
13 1 ⁄
4
(337)
10 5 ⁄
8
(270)
9
(229)
6
(152)
14 7 ⁄
8
x 13 1 ⁄
4
(378 x 337)
15 1 ⁄
4 (387)
square
12
(5)
110, 125, 190
13 1 ⁄
4
(337)
10 5 ⁄
8
(270)
9
(229)
8
(203)
6
(152)
17
(8)
200, 250, 290,
390
14
(356)
11 7 ⁄
8
(302)
11 1 ⁄
4
(286)
8
(203)
8
(203)
24
(11)
410, 510
18
(457)
14 3 ⁄
8
(365)
14 1 ⁄
2
(368)
8
(203)
8
(203)
19 3 ⁄
8
x 16 3 ⁄
8
(492 x 416)
—
31
(14)
710, 780
18
(457)
14 3 ⁄
8
(365)
14 1 ⁄
2
(368)
10
(254)
8
(203)
19 3 ⁄
8
x 16 3 ⁄
8
(492 x 416)
34
(15)
900, 1050,
1410, 1550
23 3 ⁄
4
(603)
14 3 ⁄
8
(365)
14 1 ⁄
2
(368)
18 3 ⁄
4
(476)
8
(203)
25 x 16 3 ⁄
8
(635 x 416)
56
(25)
Outlet connection width is 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm).
SP-B A B C D E
Designer
Grille
Decorative
Grille
Unit
Weight
50, 70 & 80
13 7 ⁄
8
(352)
11 1 ⁄
2
(292)
7
(178)
6
(152)
1 1 ⁄
4
(32)
14 7 ⁄
8
x 13 1 ⁄
4
(378 x 337) 15 1 ⁄
4 (387)
square
9
(4)
90, 110, 150,
200
13 7 ⁄
8
(352)
11 1 ⁄
2
(292)
7
(152)
6
(152)
1 1 ⁄
4
(32)
14 7 ⁄
8
x 13 1 ⁄
4
(378 x 337)
10
(5)
All dimensions are in inches (millimeters) and weight in pounds (kilograms). *Add 1½ in. (38 mm) to C
dimension for incandescent light. Mounting bracket width is 1½ in. (38 mm). For complete dimensional
information, see CAPS submittal drawings. *Sizes 410 and larger have an aluminum grille as standard.
For uses in countries with 50 cycle (50 Hz) power,
Greenheck offers the same reliability and performance
for ceiling mounted exhaust fans model SP.
• Same dimensions and outlet options
• Performance shown in 50 cycle RPMs
• Full-line of grille and discharge accessories available
A
B
C
D
E
A
B
C D
E
A
B
C
D
E
*Note: Amp draw is approximate and may vary based on motor manufacturer.
SP-A 110-510, 710, 780
SP-A (double-wide) 700, 900-1550
SP-B 50-200
B
C
A
E
D
3 15/16
SP-A 50-90
