GIGABYTE GN-BR404W - Manual (Page 72)

3-4-4. Virtual Server
Virtual server setting split into two different case. Case 1 is router having only 1 global IP
address, PPPoE/DHCP/Static is this case. Case 2 is router having more than 1 global IP
address, normal having 8 or 16 IP address, PPPoE unnumbered is this case. In case 1,
virtual server only need to configure LAN host information, because WAN IP address
always the same, but in case 2, virtual server also need to configure which WAN IP address
need redirect to internal LAN host.

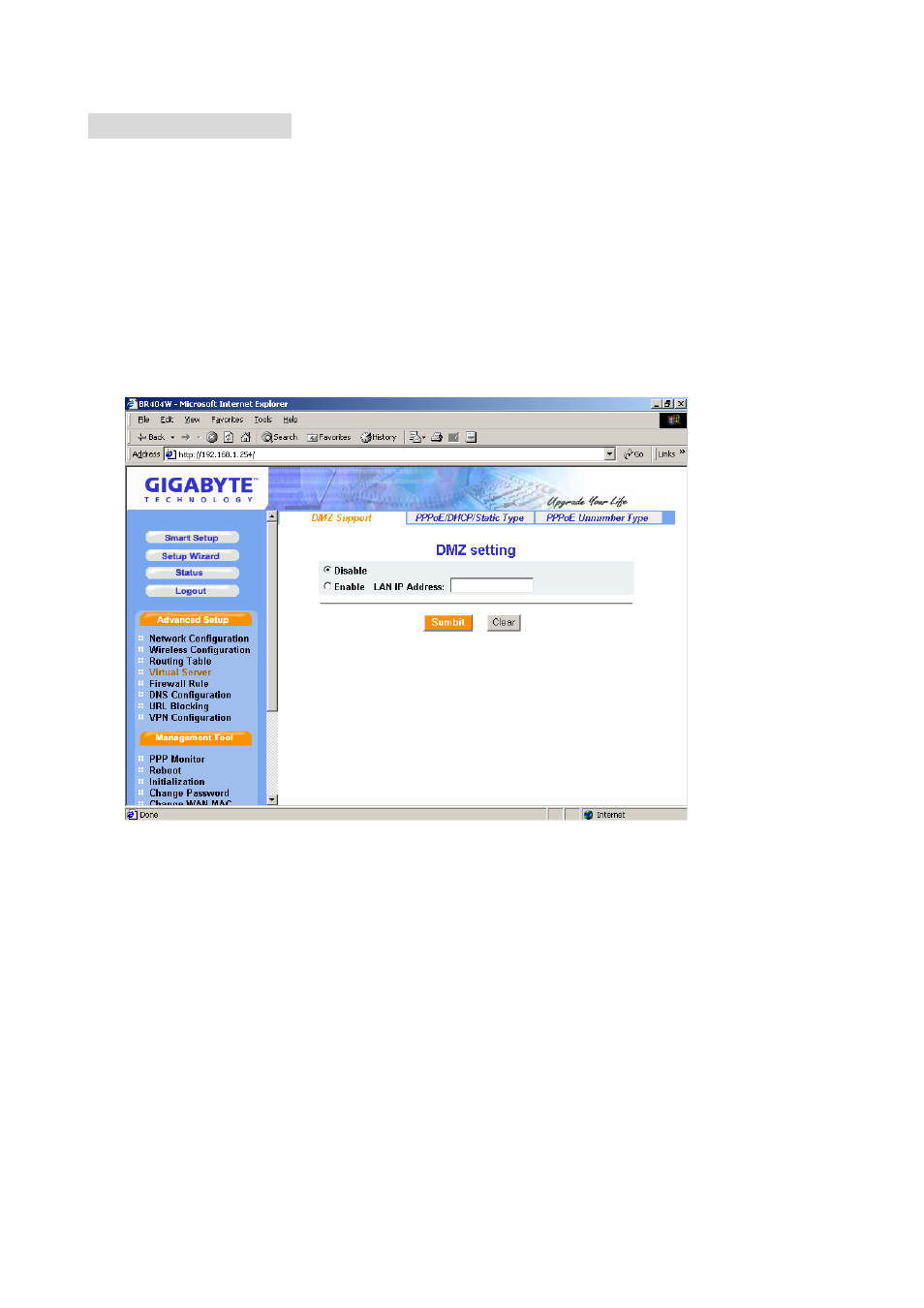

DMZ Support of the Virtual Server
If you have a computer that cannot run an Internet application (e.g. internet game,
vedio conferencing, or VPN connections) properly from behind the NAT firewall, or set
up a server which can connect to the Internet in the Intranet then you can open the
computer up to unrestricted two-way Internet access.To use the DMZ, you have to set
a static IP address for the computer. The IP Address (such as 192.168.1.2) of the
computer at the LAN terminal can be used to input to the field of LAN IP Address.
Verify the desired setting and then click the “Submit” button to set the value into
GN-BR404W.
67
