802.1x

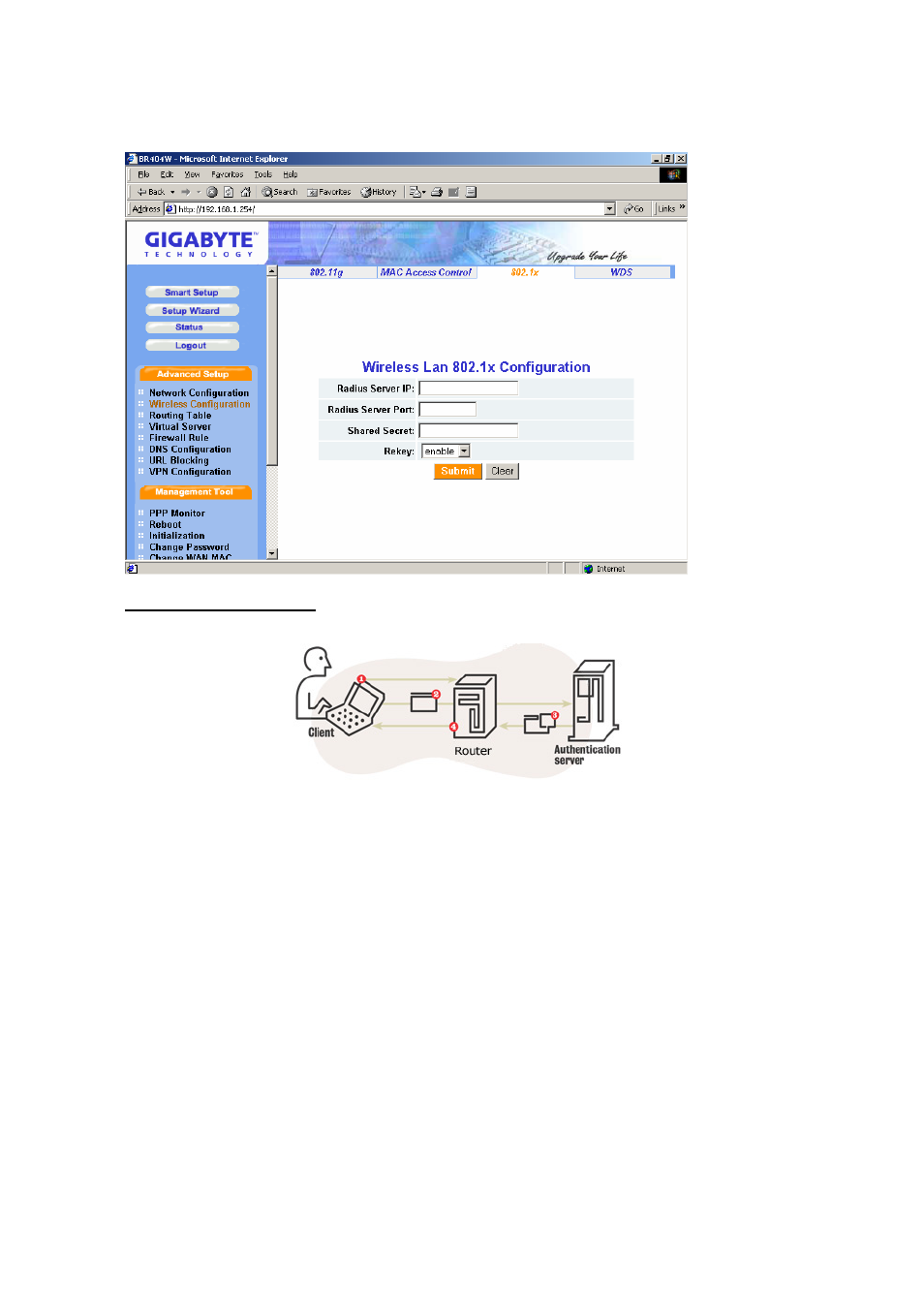

802.1x authentication for wireless LANs provides centralized, server-based
athentication of end users.
1) A client sends a “start” message to a router, which requests the identity of the
client.
2) The client replies with a response packet containing an identity, and the router
forwards the packet to an authentication server.
3) The authentication server sends an “accept” packet to the router.
4) The router places the client port in authorized state, and traffic is allowed to
proceed.
• RADIUS server IP
Please assign a IP address to the RADIUS server IP(authentication server).
• RADIUS server Port
The setting range is 1~65536.
62
