Hardware Installation - 25 -
English

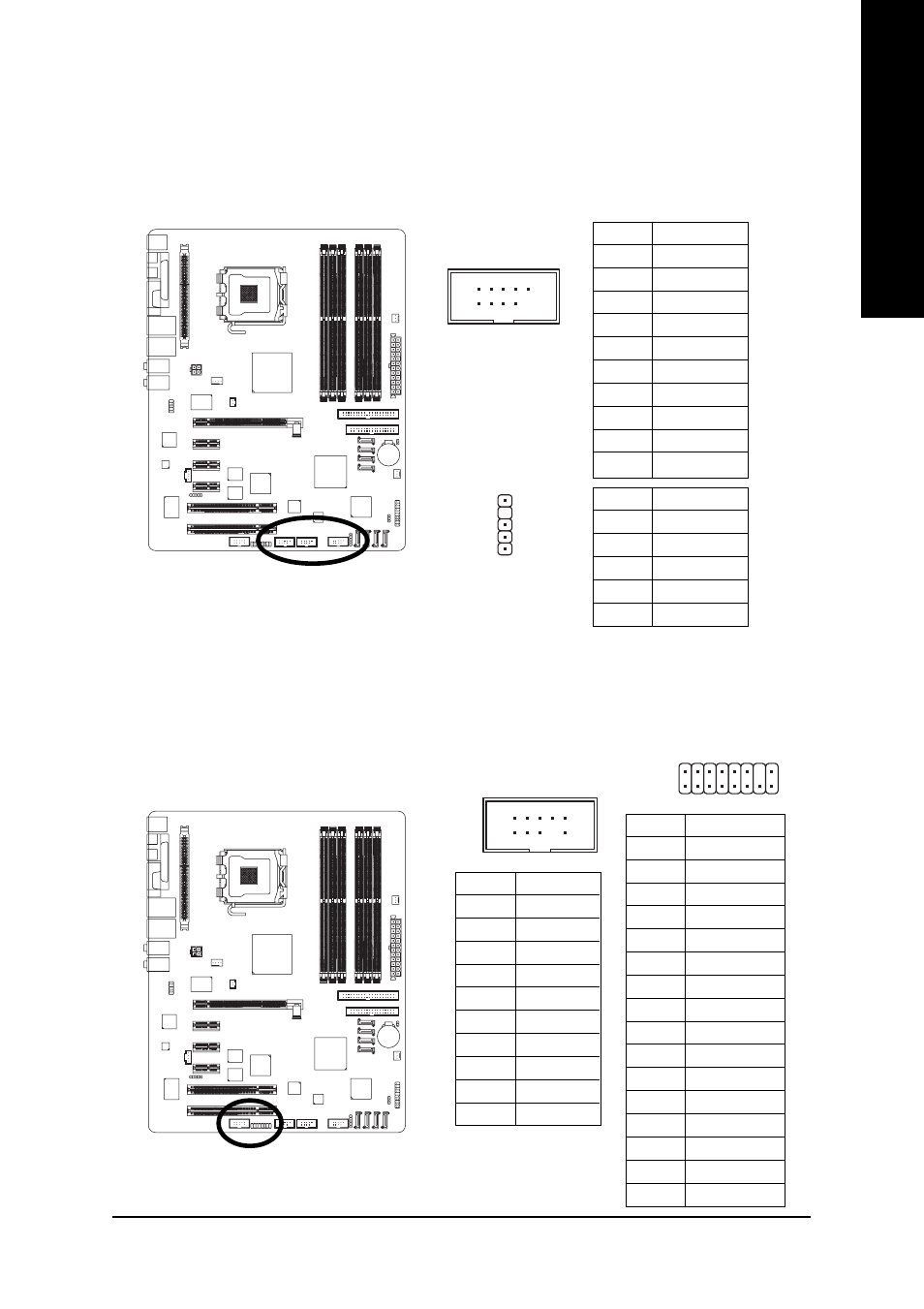

16) F1_1394/F2_1394 (IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features like
high speed, high bandwidth and hot plug. Be careful with the polarity of the IEEE1394 connector. Check
the pin assignment carefully while you connect the IEEE1394 cable, incorrect connection between the
cable and connector will make the device unable to work or even damage it. For optional IEEE1394
cable, please contact your local dealer.
Pin No. Definition
1 Power
2 Power
3 TPA1+
4 TPA1-
5 GND
6 GND
7 TPB1+
8 TPB1-
9 Power
10 Power
11 TPA2+
12 TPA2-
13 GND
14 No Pin
15 TPB2+
16 TPB2-
15) F_ USB1 / F_USB2 / F_USB3 / F_USB4 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local dealer.
The "USB Device Wake up From S3" is only supported by rear USB ports.
Pin No. Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
2 16
1 15
2 10
1 9
F2_1394
F1_1394
1
2
9
10
1
Pin No. Definition
1 TPA0+
2 TPA0-
3 GND
4 GND
5 TPB0+
6 TPB0-
7 No Pin
8 Power
9 Power
10 GND
Pin No. Definition
1 Power
2 USB DX-
3 USB DX+
4 No Pin
5 GND
F_ USB1 / F_USB2 / F_USB3
F_ USB4
