26

The Virtual Server Screen

The PPPoE/DHCP/Static Tab

A Virtual Server allows computers on the WAN side of the network to connect
with a PC server on the LAN side of the network.

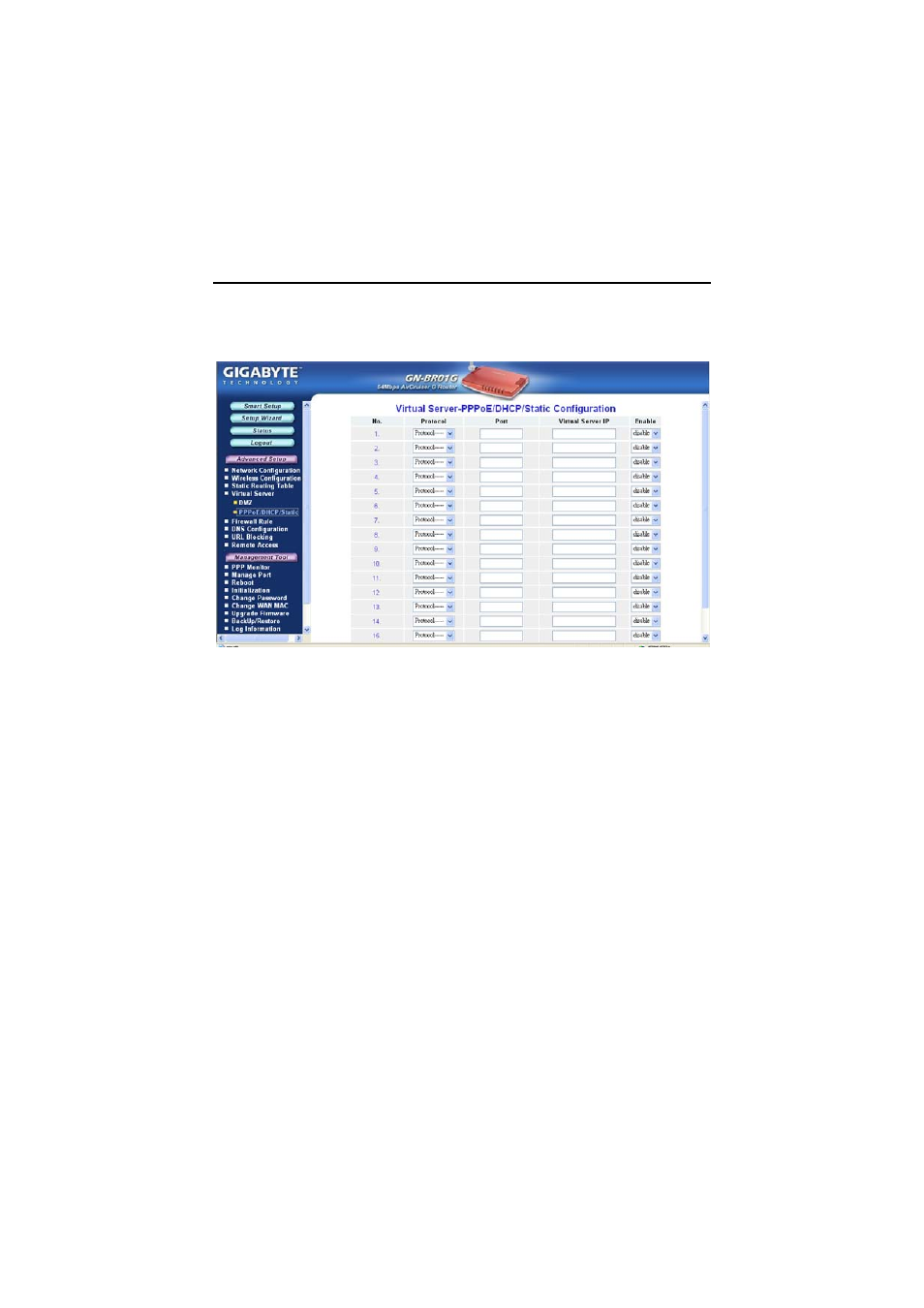

Figure 6-10 – Virtual Server setup

For example, a PC on the LAN side with an IP address of 192.168.1.1 would
have the following virtual server settings:

Protocol: TCP
Port: 21
Virtual Server IP: 192.168.1.1
Enable: enable


In this case, any PC on the WAN side of the network can connect to the internal
FTP server (192.168.1.1) using the IP address on the WAN end of the
AirCruiser G Wireless Router.
