4. Tighten the depth locking lever (13) by pushing the lever
upwards (Fig. N).
Note. Always use the correct blade depth setting. The
correct blade depth setting for all cuts should not be more
than 5mm below the material being cut. Allowing more
depth will increase the chance of kickback and result in a
rough cut.
Adjusting the bevel angle
CAUTION. Always ensure that the tool is switched off
and unplugged from the power supply before making
any adjustments.
1. The saw can be adjusted to
cut at any angle between
0° and 45°.

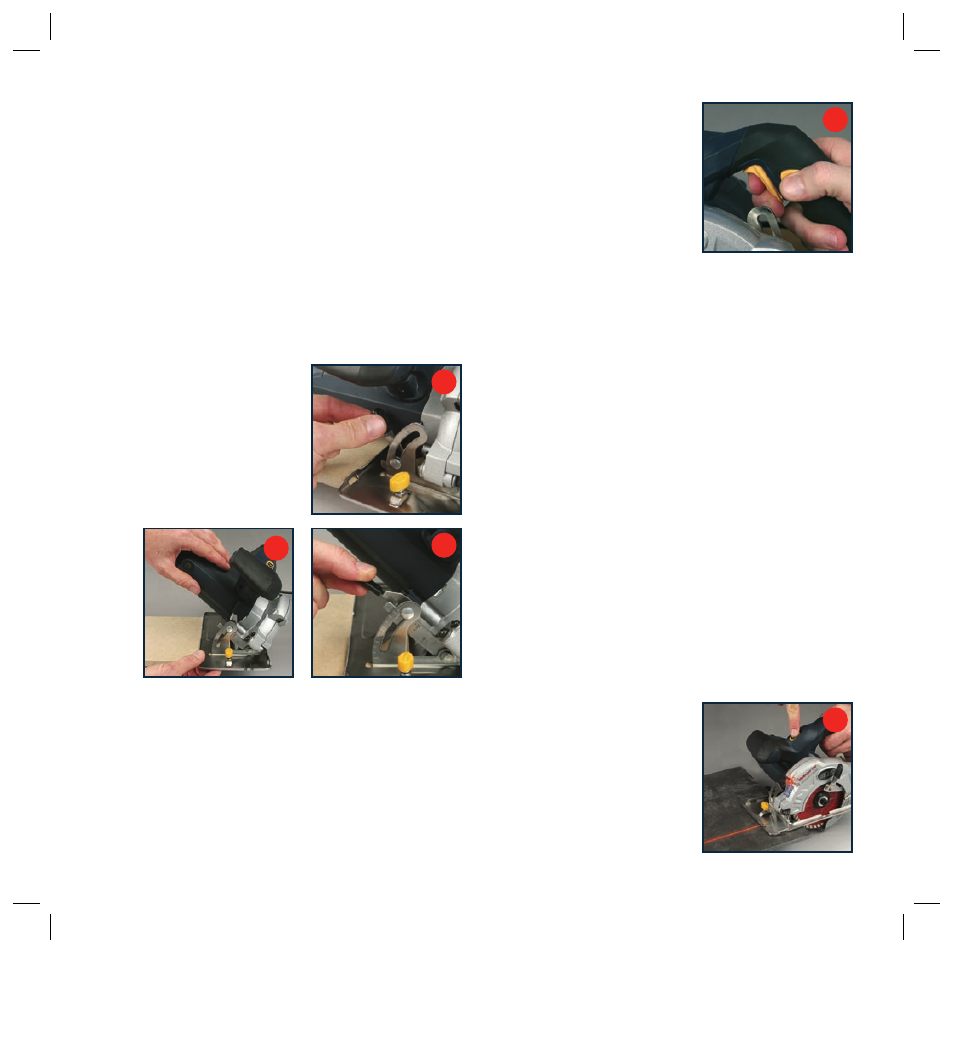

2. Loosen the bevel adjustment
lever (8) located at the front of
the base plate (12) (Fig. Q).
3. Tilt the body of the saw until
the required angle is reached
(Fig. R & S).
4. Tighten the bevel adjustment lever (8) to secure the
base plate.
Note. Always make a trial cut in a scrap piece of material
along a guideline to determine how much you should offset
the blade from the guideline to make an accurate cut.
Operation
CAUTION. This tool should only
be used on horizontal surfaces.
Switching on and off
1. Connect the plug to the
power supply.
2. To switch on the saw, use your
thumb to first press and hold in the lock off button (3) and
then squeeze the trigger switch (2) (Fig. T). Once the saw
has started there is no need to hold the lock off button
depressed.
3. When you release the trigger switch (2), the saw turns off.
4. To restart, it is necessary to again first depress the lock
off button.
CAUTION. Allow the blade to come to a complete standstill
before setting the saw down.
Using the REDEYE ® system
WARNINGS. Do not stare directly at the laser beam.
Never aim the beam at any person or an object other than
the workpiece.
Do not deliberately aim the beam at personnel and ensure
that it is not directed towards the eye of a person for longer
than 0.25 seconds.
Always ensure the laser beam is aimed at a workpiece
without reflective surfaces. Mirror tiles or the like are not
suitable for laser use as the reflective surface could direct
the beam back at the operator.
Only turn laser beam on when
the tool is on the workpiece.
1. Mark the line of the cut on the
workpiece.
2. Adjust the depth of cut and
bevel angle as required.
3. Rest the front edge of the
base on the workpiece.
