-18-

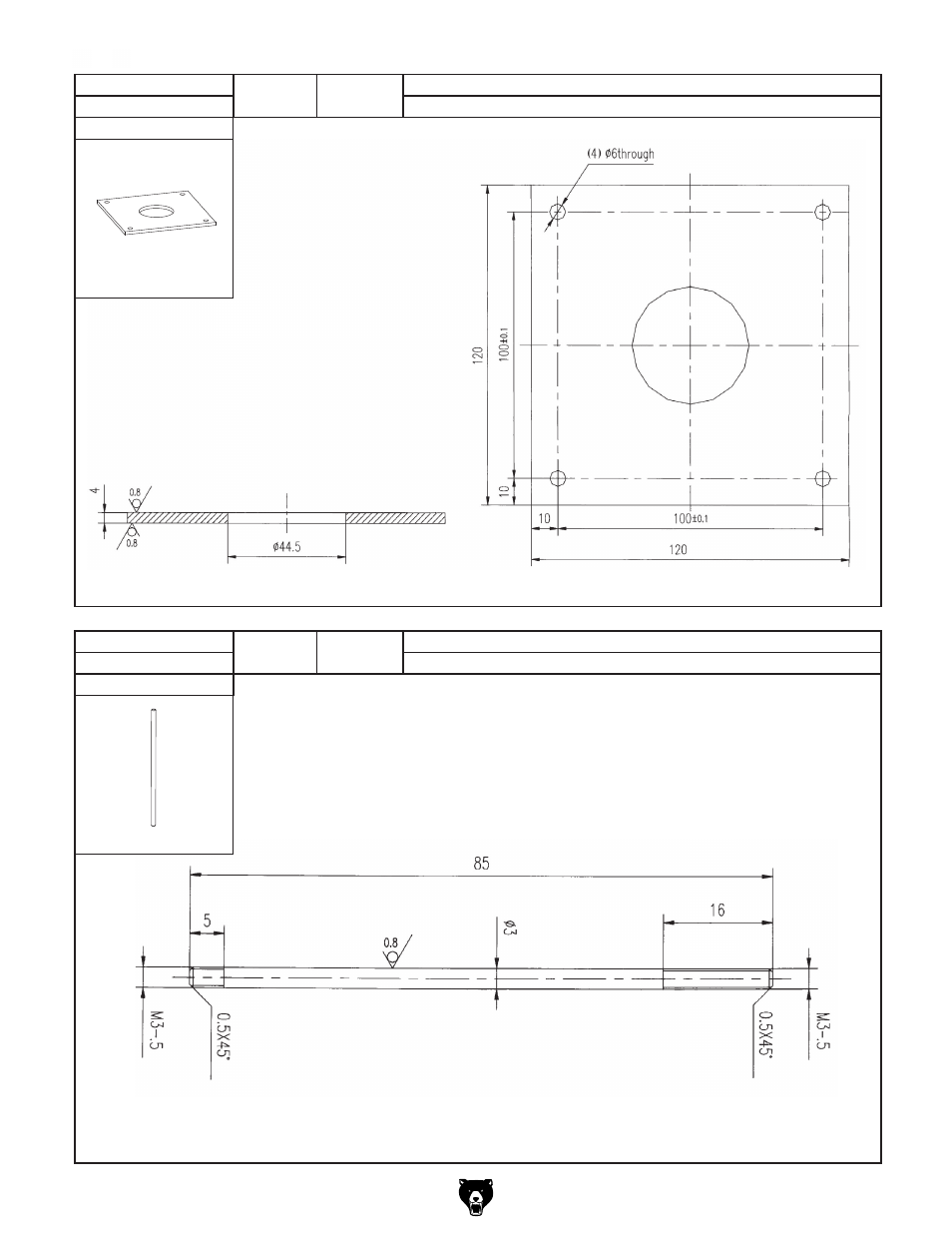

h8103 stirling Engine Kit 3

16-19

Ref No.:

Part No.:

Material

Blank Description:

Finished Part Description:

16

PH8103016 Aluminum

Aluminum Plate Blank 123 x 123 x 3.75mm

Base Plate

Qty To Make

1

Note: All dimensions are in millimeters.

Not To Scale

Part ID.:

HAE0311

Ref No.:

Part No.:

Material

Blank Description:

Finished Part Description:

19

PH8103019

Steel

Steel Rod Blank 3 x 87mm

Heating Piston Drive Rod 85mm

Qty To Make

1

Note: All dimensions are in millimeters.

Not To Scale

Part ID.:

HAE0209
