The family of Magnum 1000 Workgroup Hubs is comprised of Models 1008
(pronounced “ten oh-eight”), 1016 (“ten sixteen”) and 1024 (“ten twenty-four”). These
models are equipped with 8, 16 or 24 front-mounted, shielded RJ-45 ports, respectively.
Magnum 1000 Workgroup Hubs support full Ethernet segment lengths and operate in
compliance with the IEEE 802.3 specification for repeater functionality to perform
signal amplification, re-timing, and regeneration of preamble bits for each packet
received. Consistent with IEEE 802.3 specifications, Magnum 1000 Hubs will detect
collisions, generate jam signals, extend collision fragments, and automatically partition
and re-connect individual ports.
For models with optional 48V DC power supply built in, see Appendix B.
2.2.1 Magnum 1008 Workgroup Hub
The Magnum 1008 Workgroup Hub, shown in Figure 2.2.1a, has eight front-
mounted, shielded RJ-45 ports and one rear-mounted AUI port. The left-most RJ-45
port (port 1) is equipped with a slide switch to allow cascading or an up-link without a
crossover cable. Refer to section 3.3.1 for details about the up-link switch.

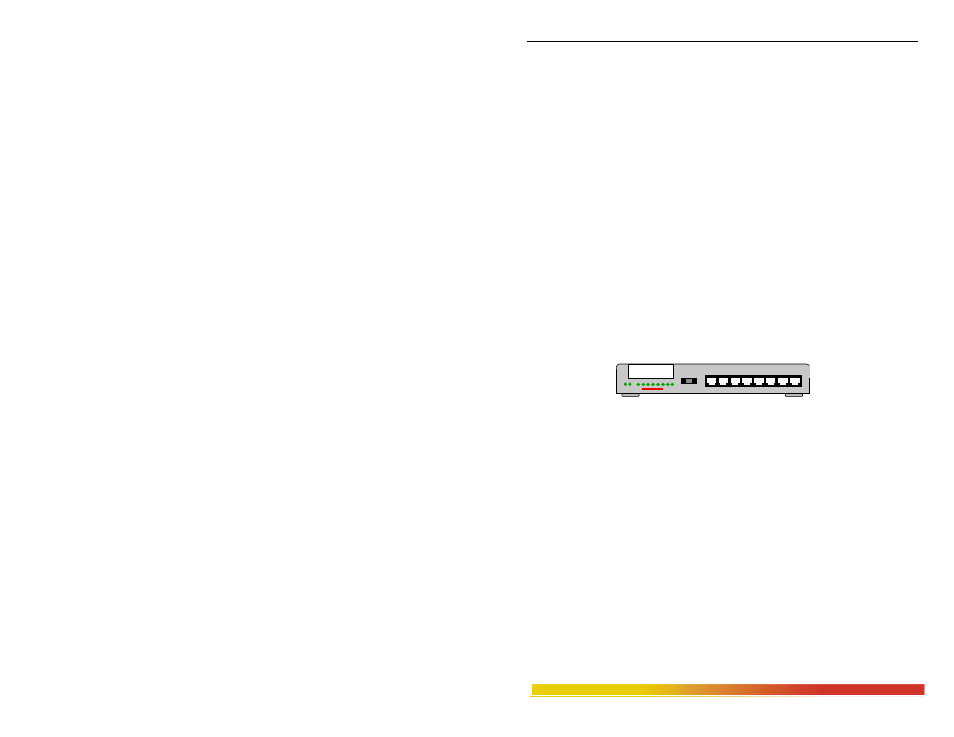

Figure 2.2.1a: Front view - Magnum 1008 Workgroup Hub
Status LEDs are located on the front panel of the Magnum 1008 for
convenient monitoring of PWR, ACT (Activity) and LINK (per port). Magnum 1008s
have an auto-ranging internal power supply, and are suitable for table-top-, wall-, or
rack-mounting. Optional rack-mount brackets may be ordered, part number 1008-RMB.
Figure 2.2.1b shows the rear-mounted AUI port. This is the base or default
configuration for the Magnum 1008. The basic AUI (standard female) port may be used
for a direct connection with an AUI drop cable or for connection to any media type via
an external mini-transceiver.
When using standard AUI cabling to connect to other Ethernet devices, it is
important to consider the AUI segment length, including any cascading. Refer to
Section 3.3.2 for detailed information on the AUI port, connector pins and standard
cable length requirements.
GARRETT
Magnum 1008
Workgroup Hub
