MODEL G8183

4

1

2

" Angle Grinder Stand

INSTRUCTION SHEET

To reduce the risk of property damage

or serious personal injury when using

this grinder stand, take the following

precautions:

Never attempt to start or run a grinder

on this grinder stand without using the

grinder blade guard.

Never use this grinder stand unless it is

fastened to a metal workbench.

Verify that the grinder is securely

mounted before every use.

All mounting studs must be secured

against the grinder. If any mounting

stud is loose, do not use the grinder

stand until the correct grinder can be

mounted. Otherwise the grinder could

work loose causing personal injury.

Always unplug the grinder before

loosening and repositioning the grinder

blade guard, or when making any other

adjustments or checks.

Never modify this grinder stand.

Never allow children to play with or

near the grinder stand.

Often inspect all stand bolts, framework,

the spring, and connections for

looseness, cracks, or other damage.

Never use this grinder at a location

where grinding sparks may ignite

flammable materials.

Always wear safety goggles, respirator,

and hearing protection when using this

grinder stand.

Never hold a workpiece by hand when

using this grinder stand. Always secure

the workpiece with the vise.

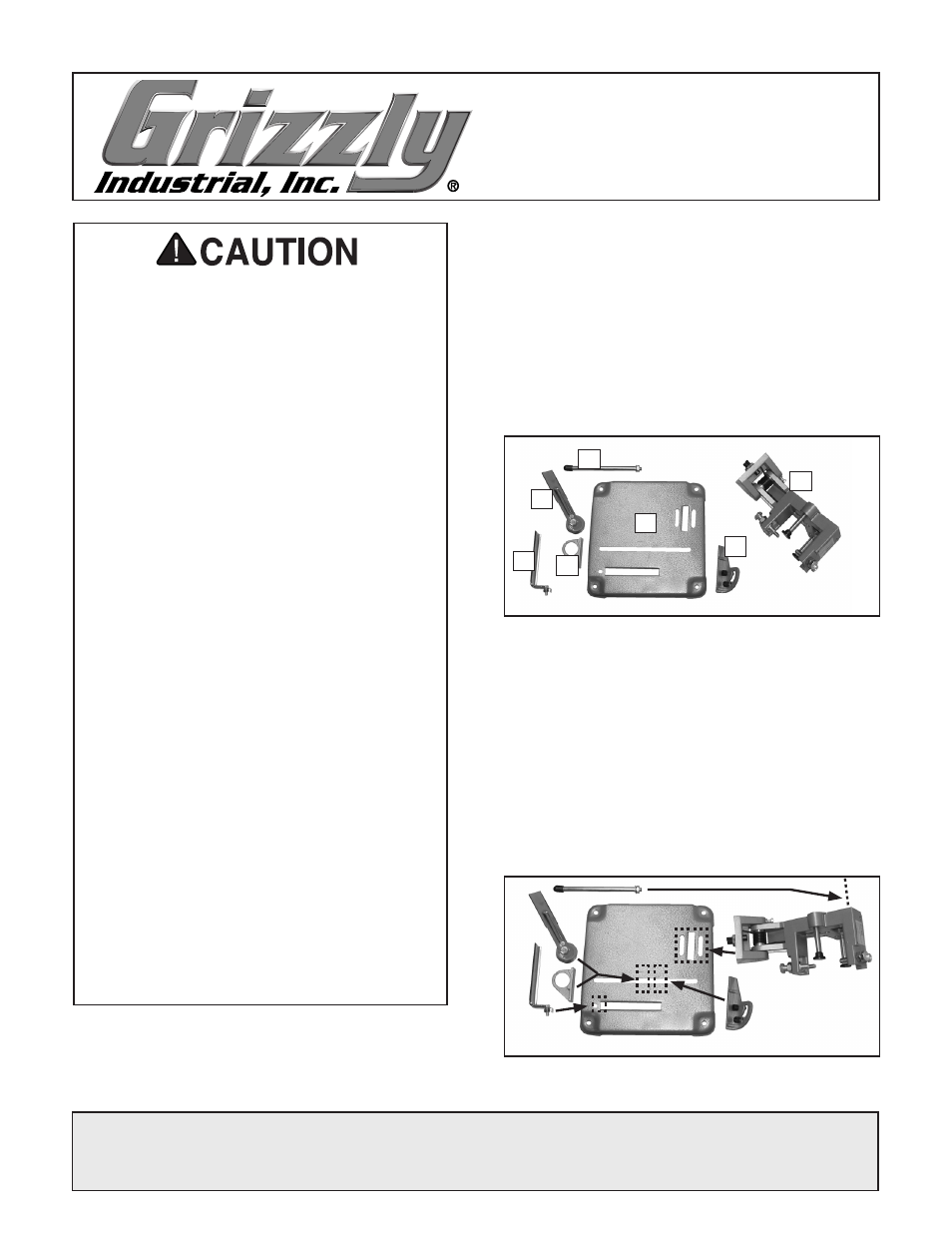

Inventory

Box 1: (Figure 1)

Qty

A. Lever Assembly .......................................... 1

B. Base ........................................................... 1

C. Grinder Mount Assembly ............................ 1

D. Angle Jaw Assembly .................................. 1

E. Cam Jaw .................................................... 1

F. Spark Shield Assembly .............................. 1

G. Lever ........................................................... 1

Figure 1. G8183 Inventory.

A

B

C

F

D

E

G

Specifications

Model: G8183 Angle Grinder Stand

Maximum Grinder Size: 4

1

2

" Dia. Wheel

Size: (L x W x H): 10" x 10" x 15"

Net Weight: 4.7 lbs.

Base Assembly

1. Assemble the grinder stand in the locations

shown in

Figure 2.

Figure 2. G8183 assembly locations.

CopyrIGHt © SEptEMBEr, 2008 By GrIzzLy INDuStrIAL, INC.

WARNING: NO pORTION OF THIS MANUAL MAy BE REpRODUCED IN ANy SHApE

OR FORM WITHOUT THE WRITTEN AppROVAL OF GRIzzLy INDUSTRIAL, INC.

#Cr10776 prINtED IN CHINA
