7
324mm[12.76"]
271mm[10.67"]
597mm[23.50"]
KNOCKOUT SUITABLE FOR
1", 1-1/4", 1-1/2" CONDUIT SIZE
3 PLACES
179.5mm[7.07"]
0A
0A6599tv
561mm[22.09"
34mm[1.34"]
KNOCKOUT SUITABLE
FOR 1", 1-1/4", 1-1/2" CONDUIT SIZE
KNOCKOUT SUITABLE
FOR 3/4" & 1" CONDUIT SIZE
MOUNTING HOLES
Ø6.3mm[Ø0.25"]
PADLOCK
(CUSTOMER SUPPLIED)
LOCATION
0A6599tv
26.5mm[1.04"]

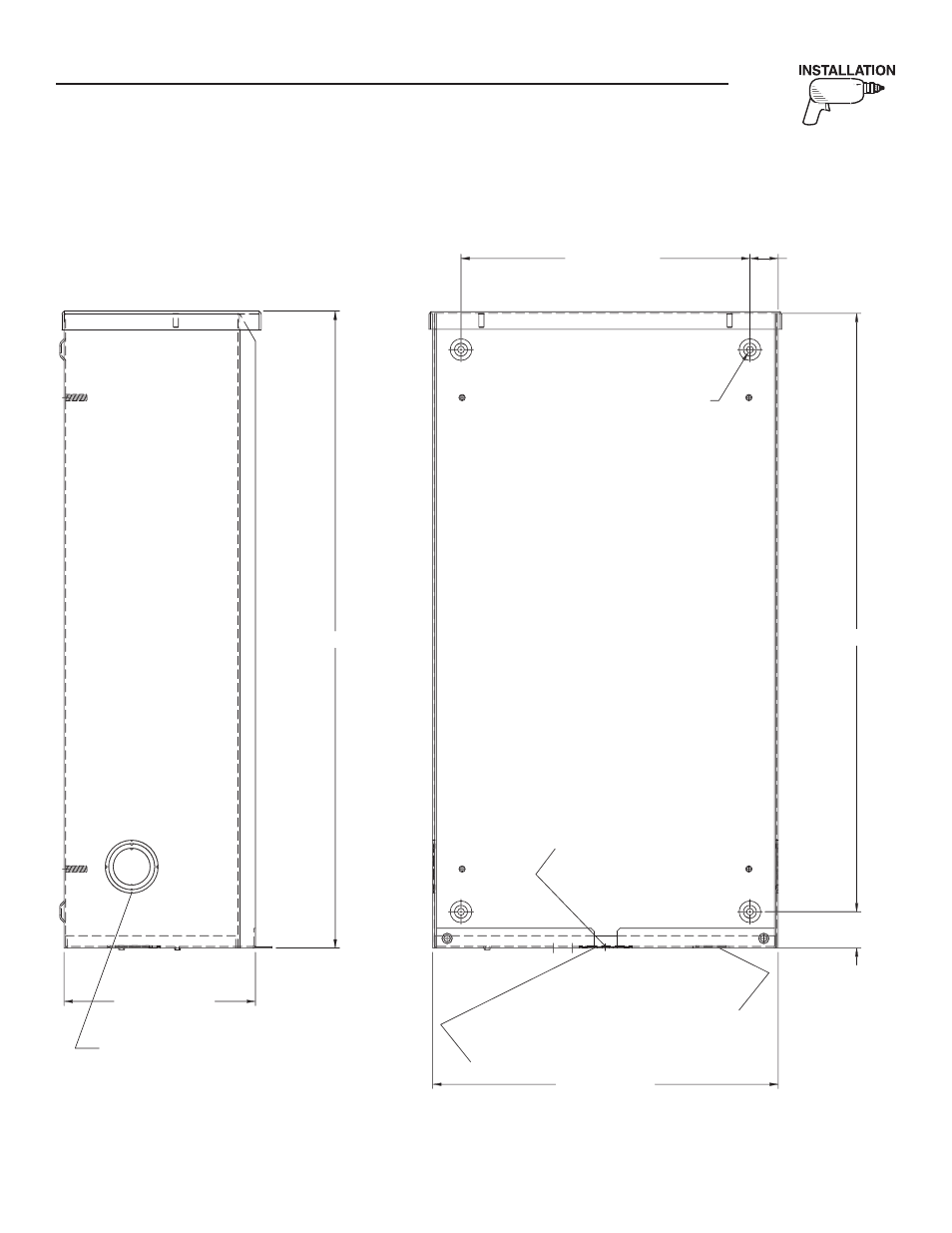

Section 4 — Installation Diagram
ATS “HS” Type Transfer Switch
Drawing No. 0F0016-B
