-86-
Model g0554z (Mfg 01/09+)

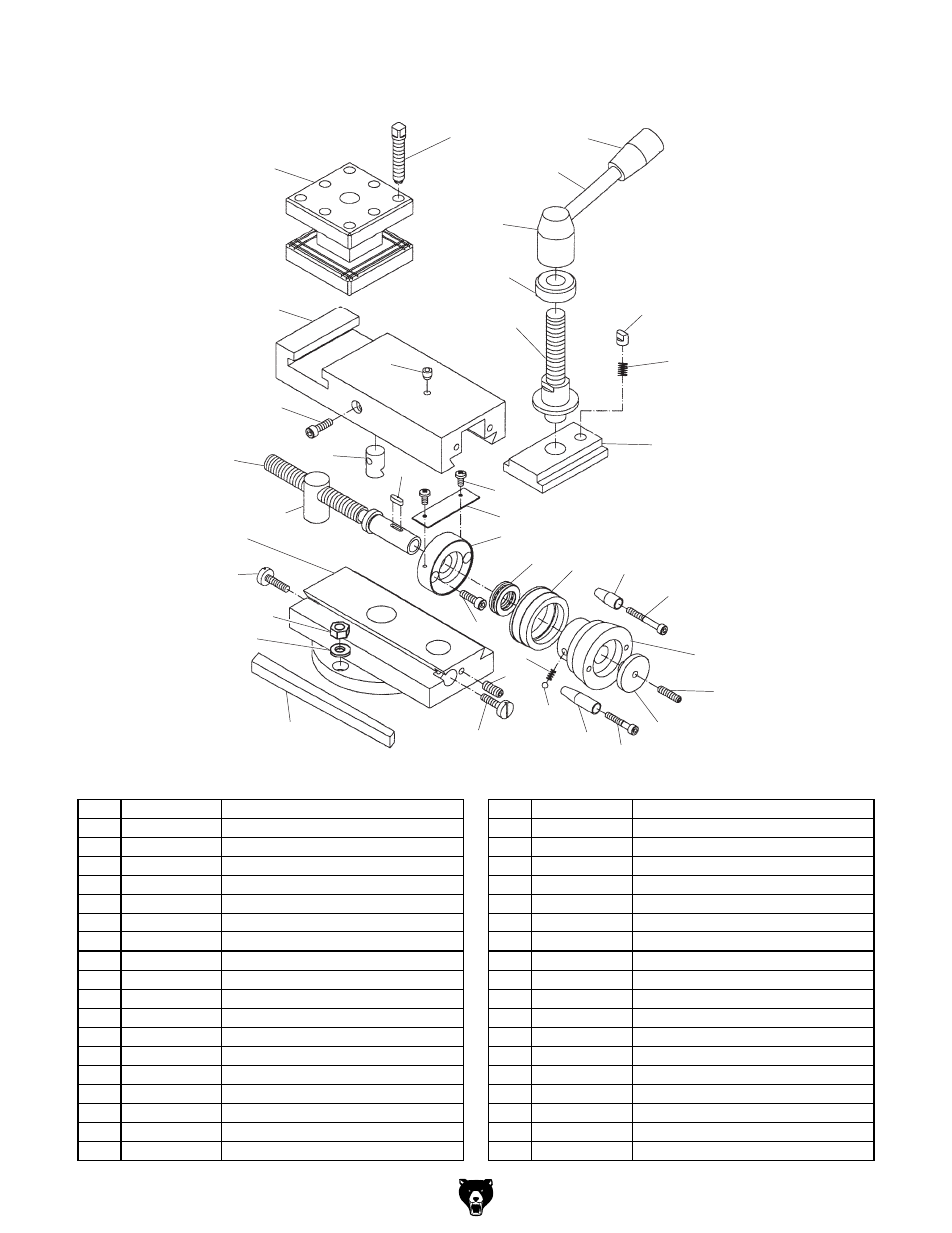

compound Slide & Tool post
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0554Z0601 TOOL POST BASE 620 P0554Z0620 BEARING HOUSING
602 P0554Z0602 TOOL POST LOCK SCREW 621 PSB02M CAP SCREW M6-1 X 20
603 P0554Z0603 HANDLE HUB 622 P8103 THRUST BEARING 8103
604 P0554Z0604 HANDLE LEVER 623 P0554Z0623 GRADUATED DIAL
605 P0554Z0605 HANDLE KNOB 624 P0554Z0624 HANDWHEEL
606 P0554Z0606 SPACER 625 P0554Z0625 HANDLE
607 P0554Z0607 TOOL POST STUD 626 PSB38M CAP SCREW M5-.8 X 25
608 P0554Z0608 TOOL POST POSITION PIN 627 P0554Z0627 HANDWHEEL SCREW
609 P0554Z0609 COMPRESSION SPRING 628 PSS12M SET SCREW M6-1 X 25
610 P0554Z0610 CLAMP BAR 629 PSB78M CAP SCREW M5-.8 X 40
611 P0554Z0509 BALL OILER 8MM 630 P0554Z0630 HANDLE
612 P0554Z0612 COMPOUND SLIDE 631 P0554Z0410 STEEL BALL 6MM
613 PSB02M CAP SCREW M6-1 X 20 632 P0554Z0632 COMPRESSION SPRING
614 P0554Z0614 POSITIONING PIN 633 PSS11M SET SCREW M6-1 X 16
615 P0554Z0615 LEADSCREW NUT 634 P0554Z0634 GIB ADJUSTMENT SCREW
616 P0554Z0616 COMPOUND SLIDE LEADSCREW 635 P0554Z0635 COMPOUND SLIDE GIB
617 PK134M KEY 4 X 4 X 14 636 PN03M HEX NUT M8-1.25
618 PS12M PHLP HD SCR M3-.5 X 6 637 P0554Z0637 SWIVEL SLIDE
619 P0554Z0619 INDEX PLATE 638 PW01M FLAT WASHER 8MM
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622 623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
634
638
