3.4.5 Port and SIM Settings
This chapter details port to SIM association as well as required and optional settings.
3.4.5.1 Dial Settings for the GSM Port

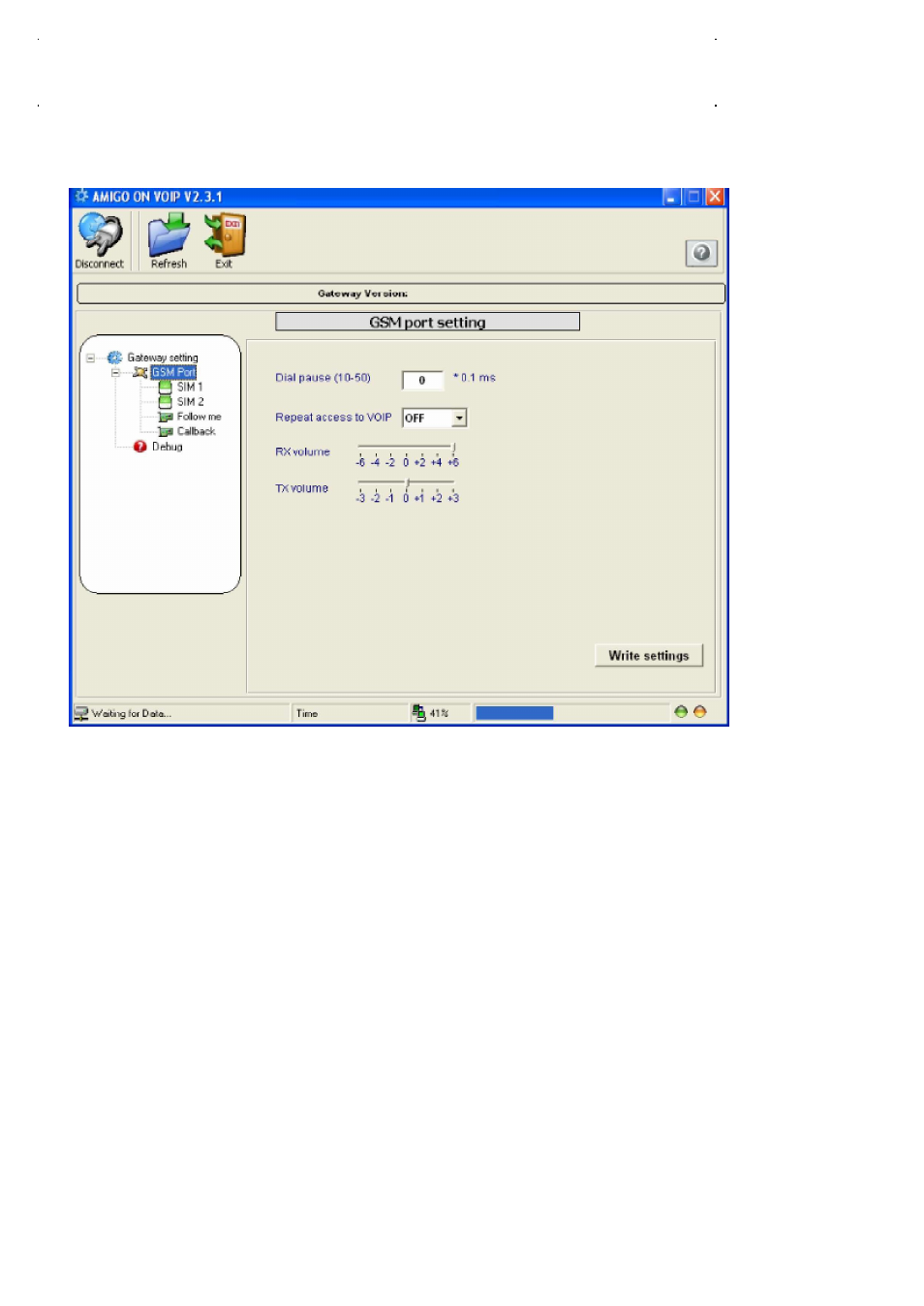

After defining the Comport, press GSM Port in the left pane. The Port Setting window is displayed.
Define dial settings in this window as follows:
1. In the Dial pause box, set the time interval, whereupon a dialed number is dispatched after the designated
delay time. Each unit is 0.1 second. For example, if you want the number to be dispatched 3 seconds after you
finish dialing, enter 30 in this box.
2. Upon completion of a call, if you want to remain connected to the GSM Network, set Repeat Access to
VoIP to On.
3. Set Receiving (Rx) and transmitting volumes in the Rx (receiving) and Transmitting (Tx) volume
settings.
4. Press
Write Settings.
