Care and Cleaning
Professional Dual Fuel Range
Oven lights CAUTION:
Before replacing a bulb,
disconnect electrical power to the oven at the
main fuse or circuit breaker panel.
Each oven is equipped with halogen light columns
located on the side walls of the oven. The lights
come on when the door is opened or when the
oven is in a cooking cycle.

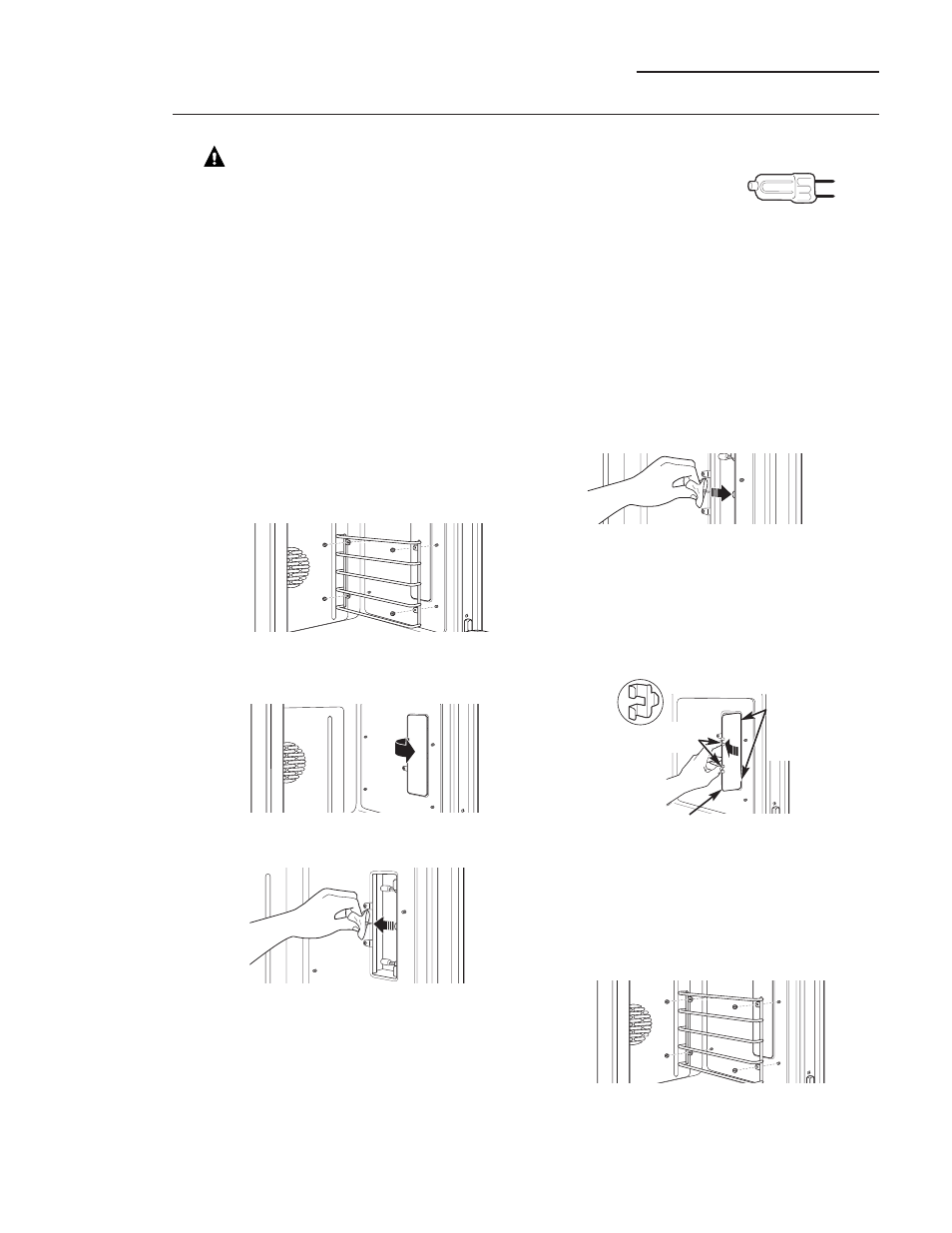

Each light assembly consists of a removable light
cover with two locking clips and a light compartment
with three halogen bulbs.
Be sure to let the light cover and bulb cool
completely. For your safety, do not touch a
hot bulb with bare hands or a damp cloth.
To remove:
1. Remove the racks from the oven. See the
Full extension oven racks section.
2. Using a 7/16 ″ nutdriver, remove the four nuts
holding the rack supports to the oven wall.
3. Remove the glass light cover by pulling its back
edge out and rolling it toward you. Do not
remove any screws.
4. Using gloves or a dry cloth, remove the
burned-out light bulb by pulling it straight out.
To replace:
Use a new 120-volt Halogen
bulb, with G8 pins, not to
exceed 25 watts.
Replacement bulbs may be purchased by calling
800.626.2002. Order Part Number WB25T10064.
NOTE: Higher wattage bulbs will damage your oven.
Using gloves or a dry cloth, remove the bulb
from its packaging. Do not touch the bulb with
bare fingers. Oil from bare fingers may cause hot
spots on the glass surface and lead to premature
failure of the bulb. If you do touch the glass, clean
it with alcohol prior to installation.
1. Push the bulb straight into the receptacle
all the way.
2. Replace the light cover, by placing its
front edge under the front two tabs in the light
compartment. Roll the back edge into place,
making sure that it is firmly seated.
NOTE: If the locking clips fell from the glass lens
cover, hold them on the cover, in the correct
position, while replacing the cover on the light
compartment.
The light cover must be in place when using
the oven.
3. Reinstall the rack support. Be sure to orient the
support so that the top tabs for the nuts are
closest to the top of the oven. Lightly secure
with the four nuts removed earlier, but do not
over-tighten or the enamel could be chipped.
4. Replace the racks. See the Full extension oven
racks section.
5. Reconnect electrical power to the oven.
Locking
clips
Press the light cover into place
Place front
edge of
lens cover
under
front two
tabs
