Design
information
Note: Not all features
are on all models.

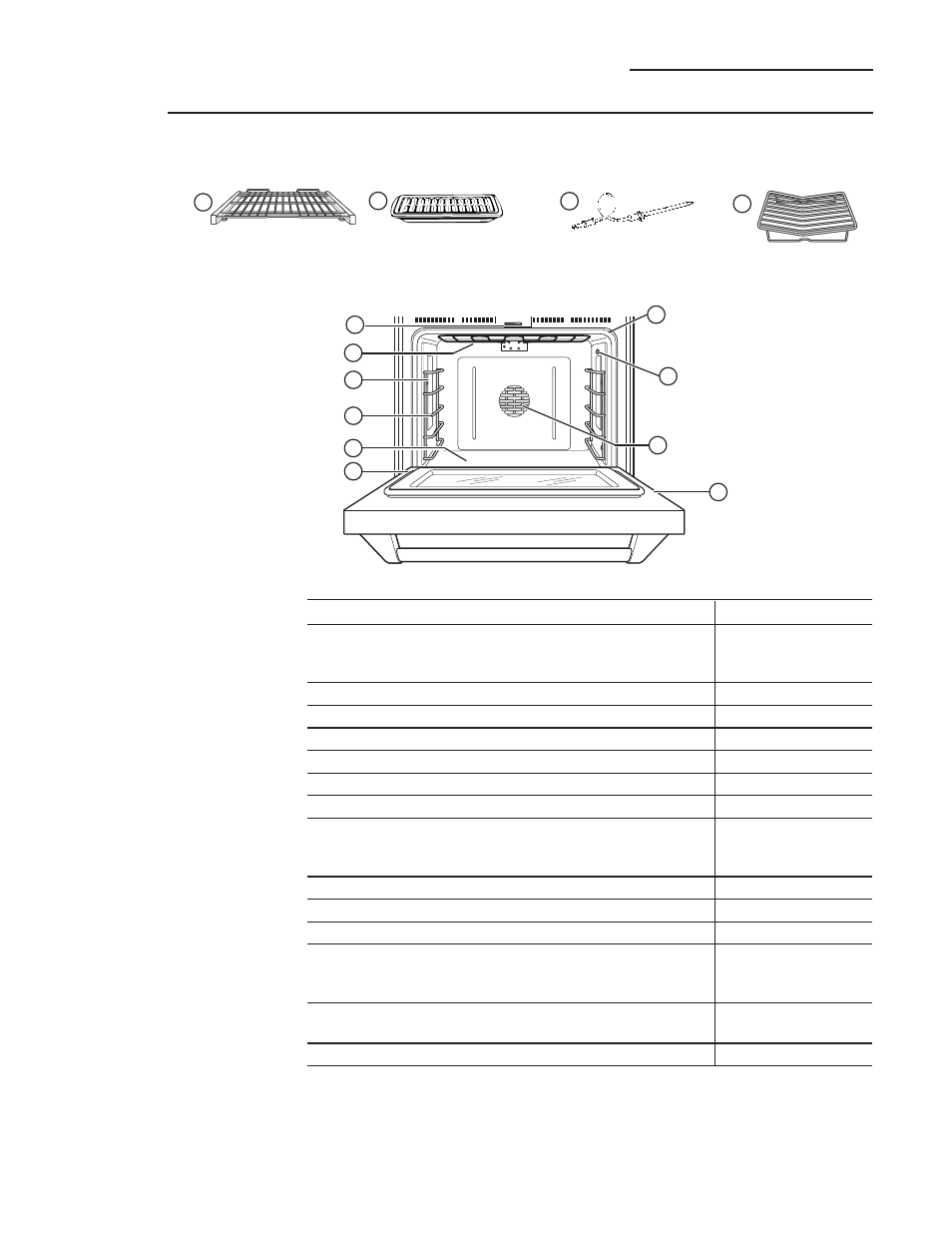

Features of Your Oven
Professional Dual Fuel Range
Feature Index Page
1 Full Extension Oven Rack(s) 18, 19, 23, 30
— 3 in large oven
— 2 in small oven
2 Broiler Pan and Grid 22, 29
3 Temperature Probe 24, 31
4 Roasting Rack 22, 29
5 Automatic Oven Door Latch 26
6 Broil Elements (2) 29
7 Halogen Oven Lights 32
8 Oven Rack Supports 32
— 5 positions in large oven
— 4 positions in small oven
9 Bake Elements (2) (under oven floor) 29
10 Oven Door Seal 33
11 Oven Frame Seal 33
12 Temperature Probe Outlet 24
— right side in large oven
— left side in small oven
13 Convection Fan and Convection Elements (2)
(operate during preheating and convection cooking)
22, 23
14 Oven Door 31, 33
2 3
7
14
8
5
9 13
6
11
12
1 4
Full Extension Oven Rack Broiler Pan and Grid
Temperature Probe
Roasting Rack
10
NOTE: On models equipped with 2 ovens, both ovens have same features.
