SERVICE MISCELLANEOUS
Service Miscellaneous

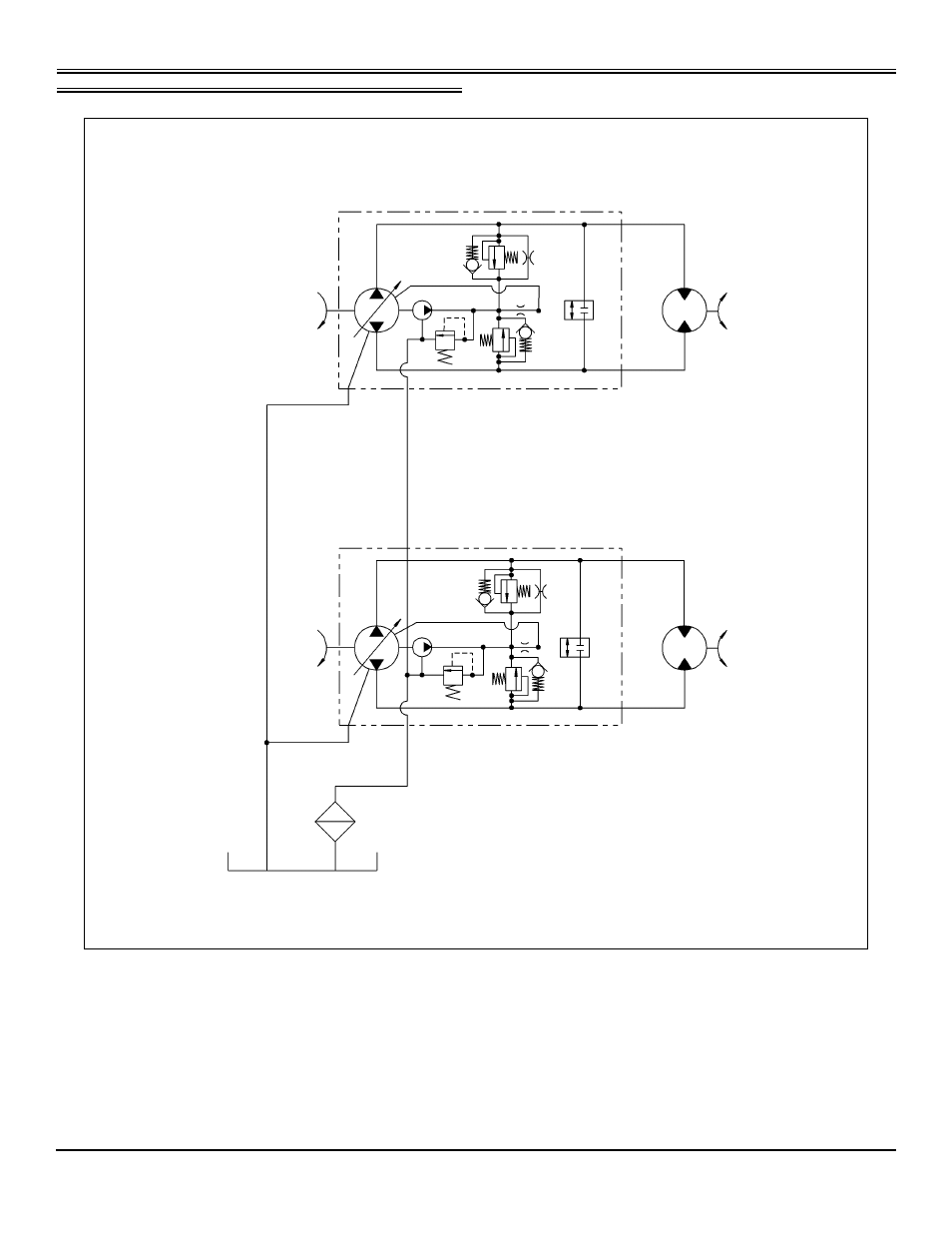

Hydraulic Schematics
c
Left Hydrostatic Pump Assembly
Pump Block
Charge Pump
System Charge Check Shock Valve (Reverse)
Manual Bypass
Left Wheel Motor
Cooling Orifice
System Charge Check Shock Valve (Forward)
Charge Relief Valve
Right Hydrostatic Pump Assembly
Right Wheel Motor
Inlet Filter
Hydraulic Reservoir
