Grizzly Industrial Die H6193 - Manual (Page 2)

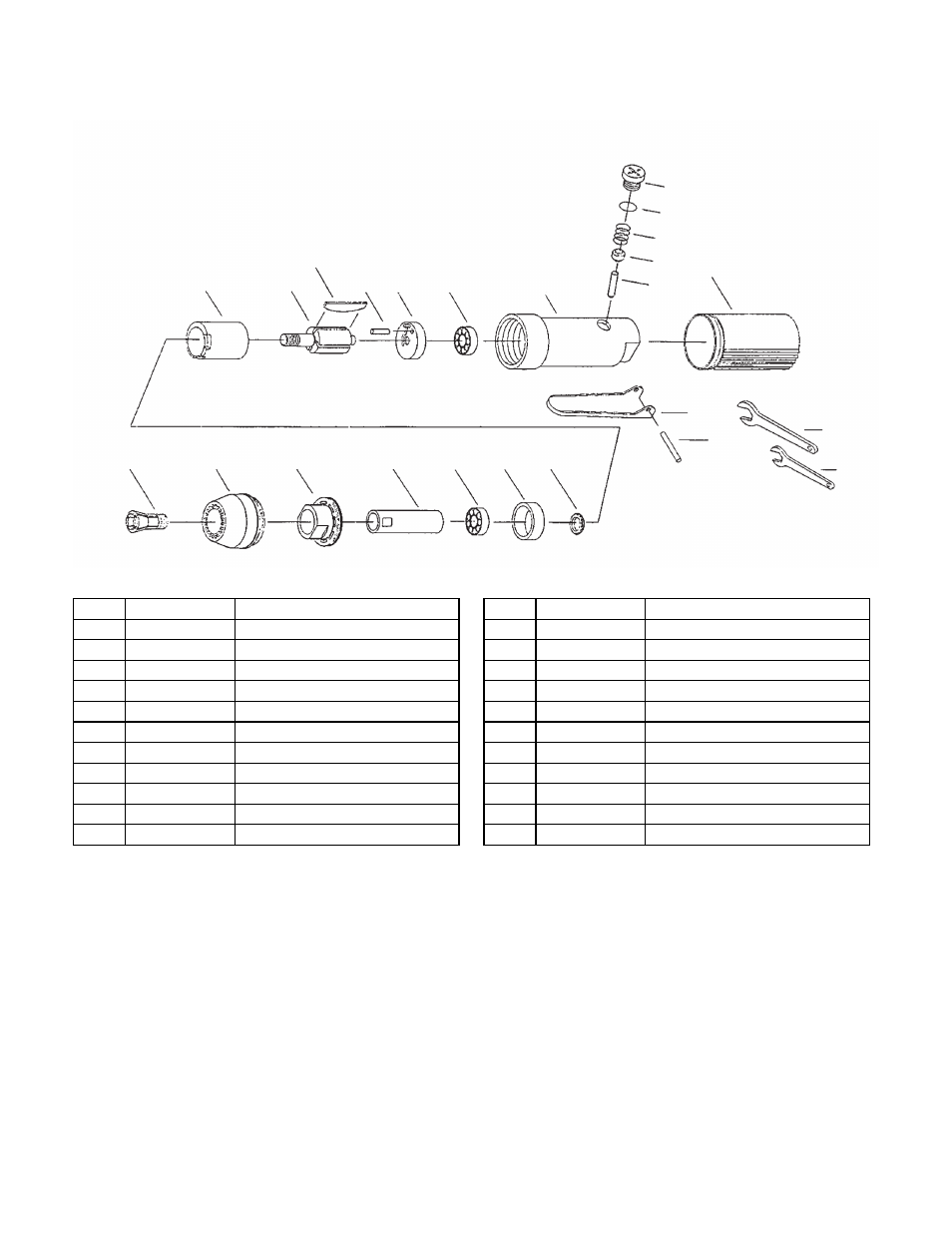

H6193 parts Breakdown and List
&* &)
&(
&' && &% '
&+
)
(
'(
')
&
*
+
,
-
.
&, &- &. '% '& ''
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PH6193001 HOUSING COVER 13 PH6193013 ROTOR BLADE
2 PH6193002 HOUSING 14 PH6193014 ROTOR
3 PH6193003 THROTTLE LEVER 15 PH6193015 CYLINDER
4 PH6193004 LEVER PIN 16 PH6193016 BEARING SPACER
5 PH6193005 VALVE PIN 17 PH6193017 FRONT END PLATE
6 PH6193006 VALVE 18 PH6193018 BEARING
7 PH6193007 COMPRESSION SPRING 19 PH6193019 SPINDLE
8 PH6193008 O-RING 20 PH6193020 RETAINER
9 PH6193009 VALVE CAP 21 PH6193021 HOUSING CAP
10 PH6193010 BALL BEARING 22 PH6193022 COLLET
11 PH6193011 REAR END PLATE 23 PH6193023 WRENCH 12MM
12 PH6193012 PIN 24 PH6193024 WRENCH 11MM
