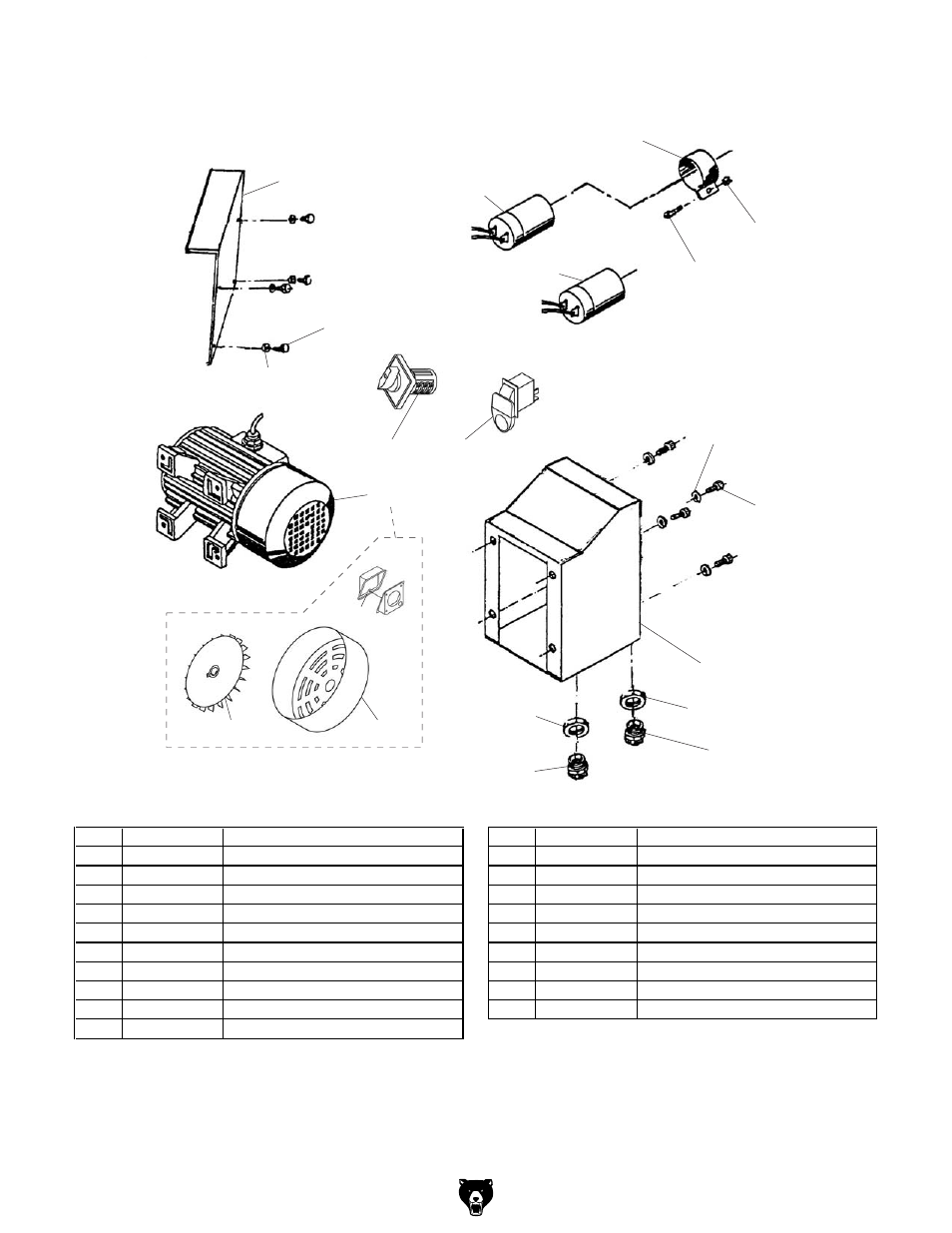

Electrical Components Breakdown
&&%&
&&%'
&&%(
&&%)
&&%*
&&%+
&&%+"&
&&%,
&&%-
&&&%
&&&&
&&&&"& &&&&"'
&&&&"(
&&&'
&&&(
&&&)
&&&*
&&&+
&&&. &&'%
REF PART # DESCRIPTION REF PART # DESCRIPTION
1101 P9972Z1101 ELECTRICAL CABINET 1111-1 P9972Z1111-1 MOTOR FAN
1102 PSB06M CAP SCREW M6-1 X 25 1111-2 P9972Z1111-2 MOTOR FAN COVER
1103 PLW03M LOCK WASHER 6MM 1111-3 P9972Z1111-3 MOTOR WIRING JUNCTION BOX
1104 P9972Z1104 ELECTRICAL CABINET COVER 1112 PLW01M LOCK WASHER 5MM
1105 P9972Z1105 CAPACITOR COVER W/CLIP 1113 PN04M HEX NUT M4-.7
1106 P9972Z1106 S CAPACITOR 150M 1114 PS52M PHLP HD SCR M4-.7 X 20
1106-1 P9972Z1106-1 R CAPACITOR 20M 1115 P9972Z1115 STRAIN RELIEF 3/4"
1107 P9972Z1107 STRAIN RELIEF NUT 1/2" 1116 P9972Z1116 STRAIN RELIEF NUT 3/4"
1108 P9972Z1108 STRAIN RELIEF 1/2" 1119 P9972Z1109 ON/OFF SWITCH W/COVER
1110 PS09M PHLP HD SCR M5-.8 X 10 1120 P9972Z1109-1 ROTARY SWITCH 3-POSITION
1111 P9972Z1111 MOTOR 1HP 110V 1-PH
