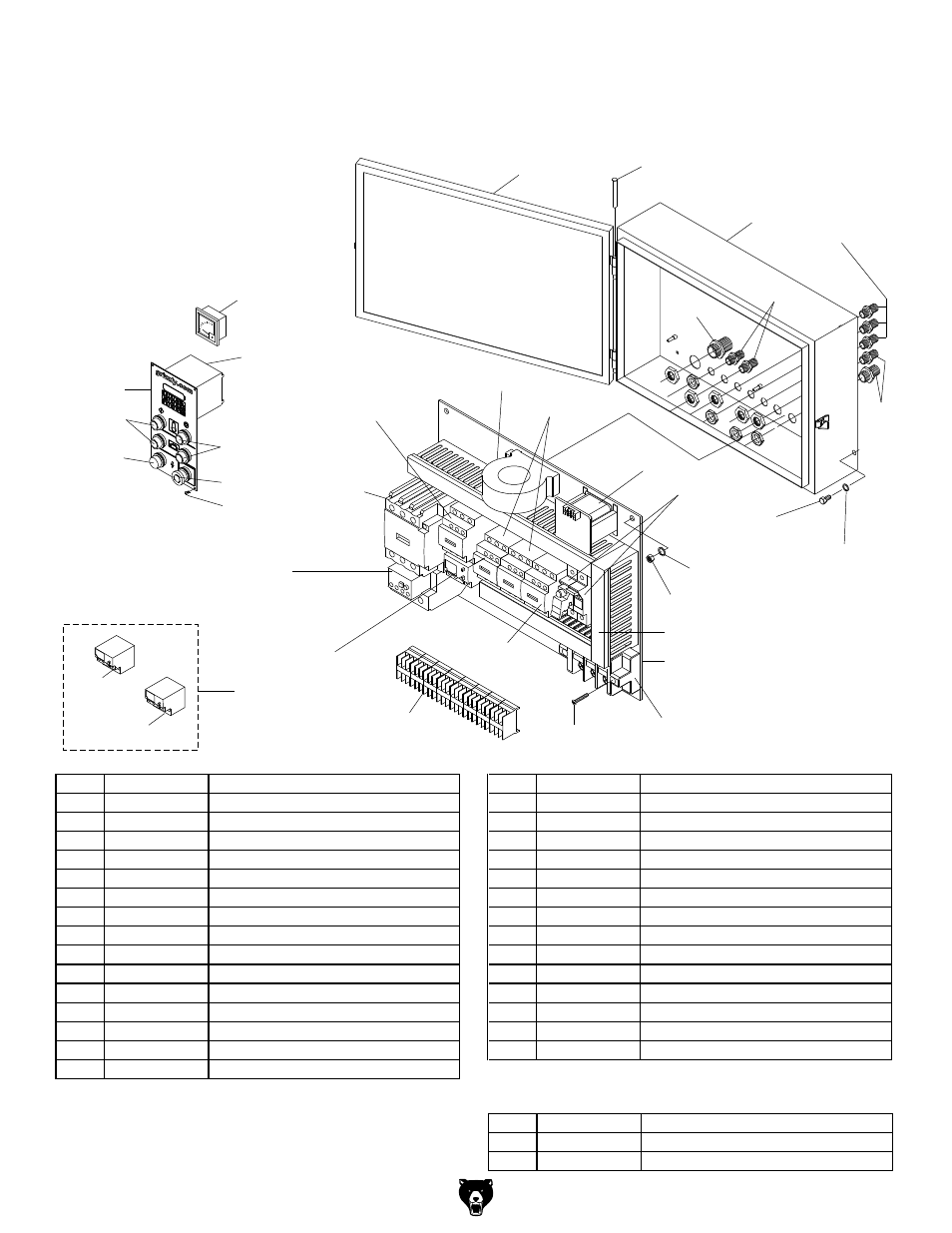

Main Wiring Panel & Controls Breakdown
8000 Series Parts
&&&
&&'
&&)
&&-
&&,
&%*
&%+
&%(
&%&
&%'
&'+
&((
&%,
&'-
&(%
&(&
&'.
&%-
&%.
&&*
&&%
&%)
&')
&''
&''
&'(
&'&
&'%
&('
&&*"&
&&+
&&(
&&*"&
&()
&()"&
))%K
&()"'
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
101
PH29338101
ELECTRICAL CONTROL BOX
116
PH29338116
POWER WIRE TERMINAL
102
PH29338102
HINGE
117
PS51M
PHLP HD SCR M4-.7 X 30
103
PH29338103
DOOR
118
PH29338118
TERMINAL PLATE
104
PH29338104
BASE PLATE
120
PLW02
LOCK WASHER 1/4
105
PN05
HEX NUT 1/4-20
121
PB19
HEX BOLT 1/4-20 X 1/2
106
PLW02
LOCK WASHER 1/4
122
PH29338122
PU CONNECTOR 1/2"
107
PH29338107
CONTROL PANEL
123
PH29338123
PU CONNECTOR 1/4"
108
PS07M
PHLP HD SCR M4-.7 X 8
124
PH29338124
CABLE CONNECTOR 1"
109
PH29338109
CURRENT SENSOR
126
PH29338126A DIGITAL AMP METER V2.02.06
110
PH29338110
TRANSFORMER
128
PH29338128
START SWITCH
111
PH29338111
CONTACTOR LC1-D40
129
PH29338129
STOP SWITCH
112
PH29338112
RELAY LR3D-3355 220V (30-40A)
130
PH29338130
POWER INDICATION LIGHT
113
PH29338113
FUSE TE10.3 X 38 & 500V/4A X 2
131
PH29338131
EMERGENCY STOP SWITCH
114
PH29338114
RELAY LR3D-086 220V (2.5-4A)
132
PH29338132
WIRE COLUMN
115
PH29338115
CONTACTOR LC1-D096 (WITH LOCK)
133
PH29338133
COMPUTER
115-1 PH29338115-1 CONTACTOR LC1-D096
REF
PART #
DESCRIPTION
134
P06778134
440V CONVERSION KIT
134-1 PH29338134
RELAY LR3D-3322 440V (17-25A)
134-2 PH29338135
RELAY LR3D-076 440V (1.6-2.5A)
