tracer2000 Network DVR Hardware User’s Manual

Version 3.1

Page 18 of 31

3.2

P/T/Z Setting
The P/T/Z Setting complies with LILIN or PELCO. Protocol has been previously
attached to the COM ports. You may control the camera via arrow buttons.
In this case, you don’t need to buy dedicated P/T/Z controller.

3.3

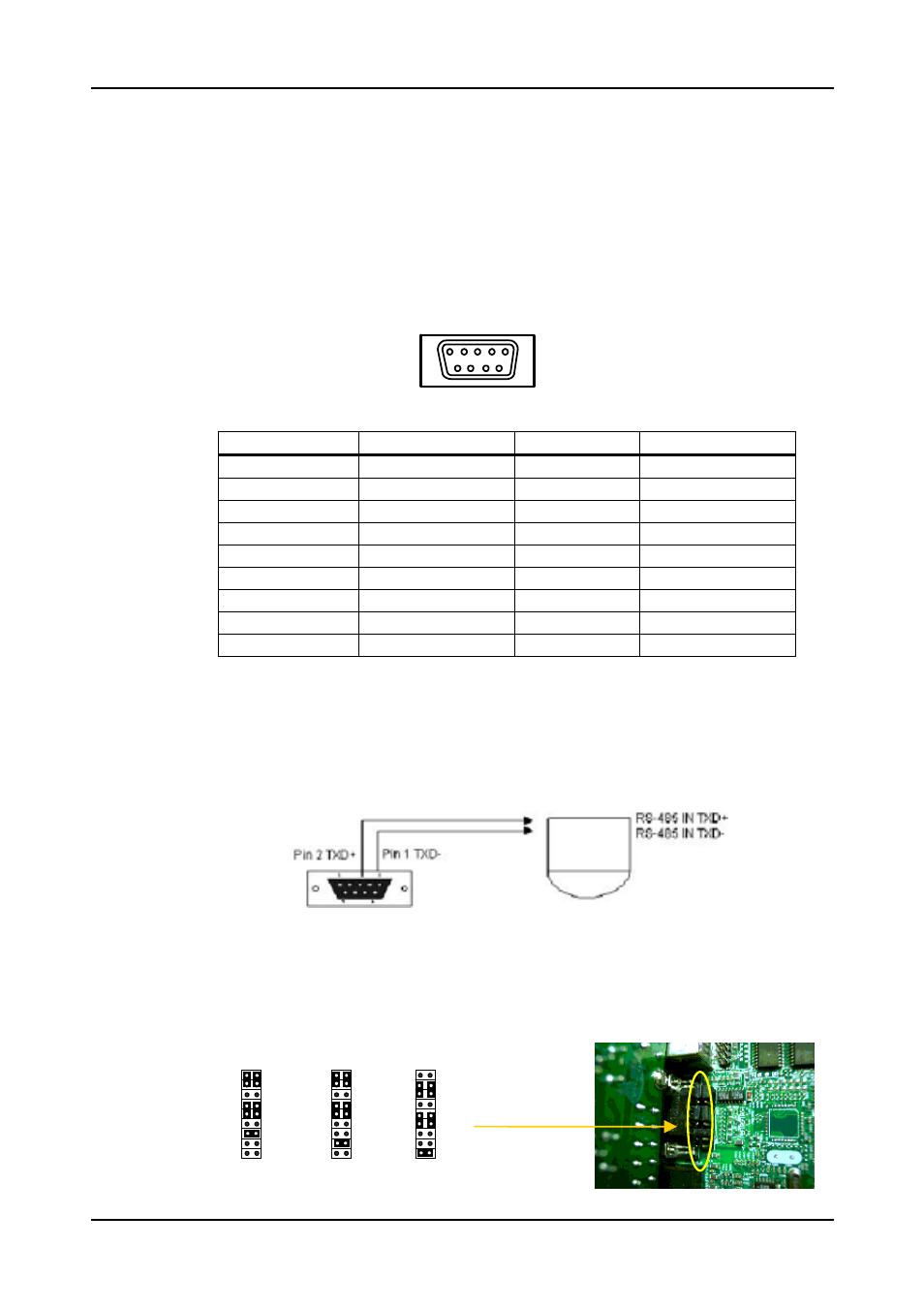

Pin Assignment of COM2
Connect 9 PIN Female D_SUB to COM2 (Pin defines as below).

RS232 / RS422 / RS485 Connector (COM2)

Pin

No. RS232 RS422 RS485

1 DCD

TX-

DATA-

2 RX

TX+

DATA+

3 TX

RX+

4 DTR

RX-

5 GND GND GND
6 DSR

RTS-

7 RTS

RTS+

8 CTS

CTS+

9 RI

CTS-

Note: Please setup mode type by JP3.

3.4

Cable Connection
Camera input jack to COM2 for PIH-7000/7600. For example:

3.5

Jumper 3 Setting of COM2
The system default of COM2 is RS485. Adjust jumper JP3 in system for RS422,
RS232 signals as show below.
