tracer2000 Network DVR Hardware User’s Manual
Version 3.1 Page 12 of 31
1
2
43
44

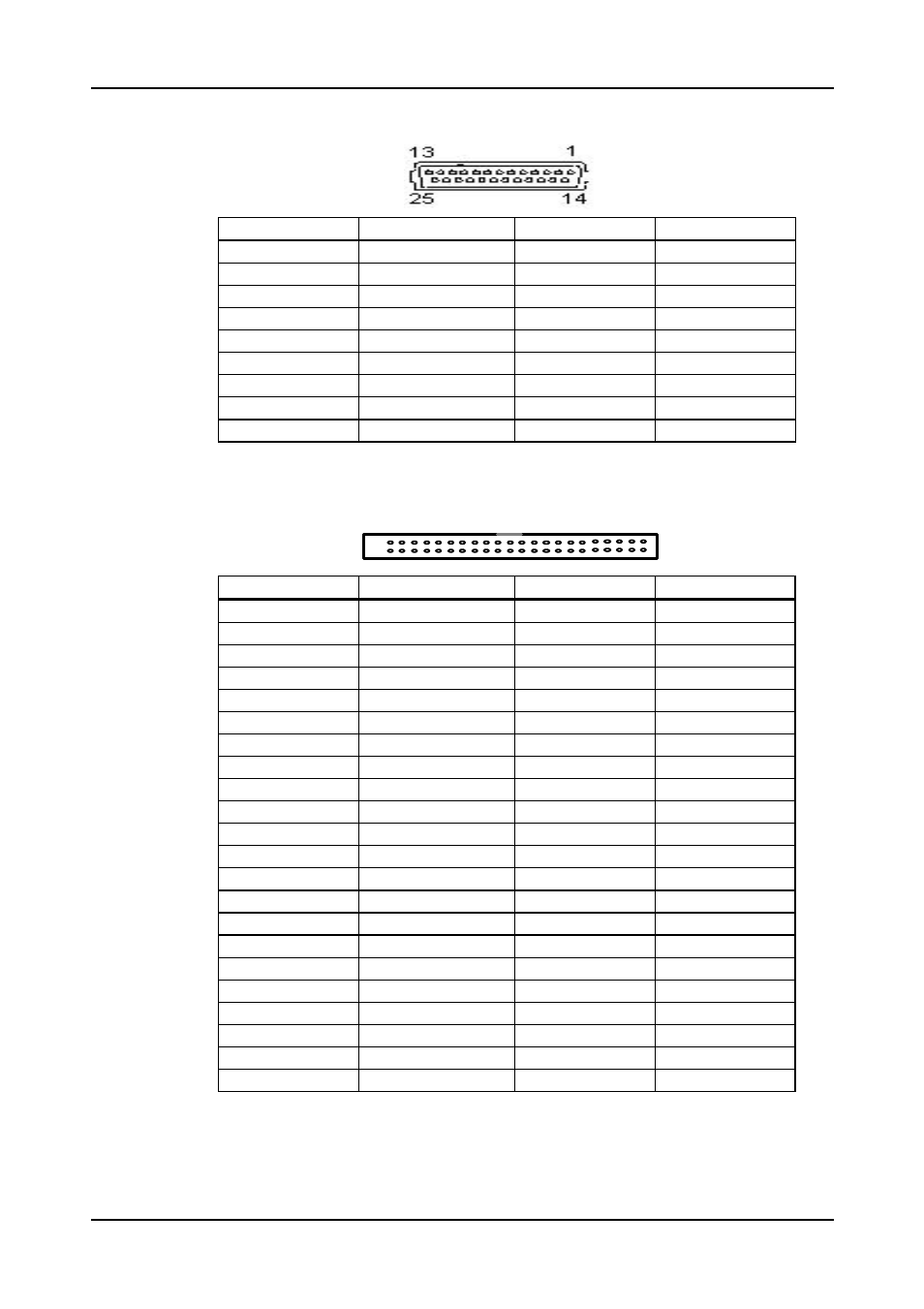

1.10 Parallel / Printer Connector (PRN)
Pin No. Signal Pin No. Signal
1 Strobe 10 -Acknowledge
2 Data 0 11 Busy
3 Data 1 12 Paper Empty
4 Data 2 13 +Select
5 Data 3 14 -Auto Feed
6 Data 4 15 -Error
7 Data 5 16 -INIT Printer
8 Data 6 17 -Select Input
9 Data 7 18-25 Ground
1.11 Video Input (J2)
Note: VIN xx is analog video input channel xx.
V-I-OExx is Odd / Even field information of video input channel xx.
Pin No. Signal Pin No. Signal
1 VCC 2 V-I-OE00
3 GND 4 V-I-OE01
5 VIN00 6 V-I-OE02
7 VIN01 8 V-I-OE03
9 VIN02 10 AGND
11 VIN03 12 V-I-OE30
13 AGND 14 V-I-OE31
15 VIN30 16 V-I-OE32
17 VIN31 18 V-I-OE33
19 VIN32 20 AGND
21 VIN33 22
V-I-OE20
23 AGND 24 V-I-OE21
25 VIN20 26 V-I-OE22
27 VIN21 28 V-I-OE23
29 AGND 30 AGND
31 VIN22 32
V-I-OE10
33 VIN23 34 V-I-OE11
35 AGND 36 V-I-OE12
37 VIN10 38 V-I-OE13
39 VIN11 40 AGND
41 VIN12 42 GND
43 VIN13 44 VCC
