Grizzly T23092 User Manual
Page 15
Model t23092 high-pressure spray gun
-14
-

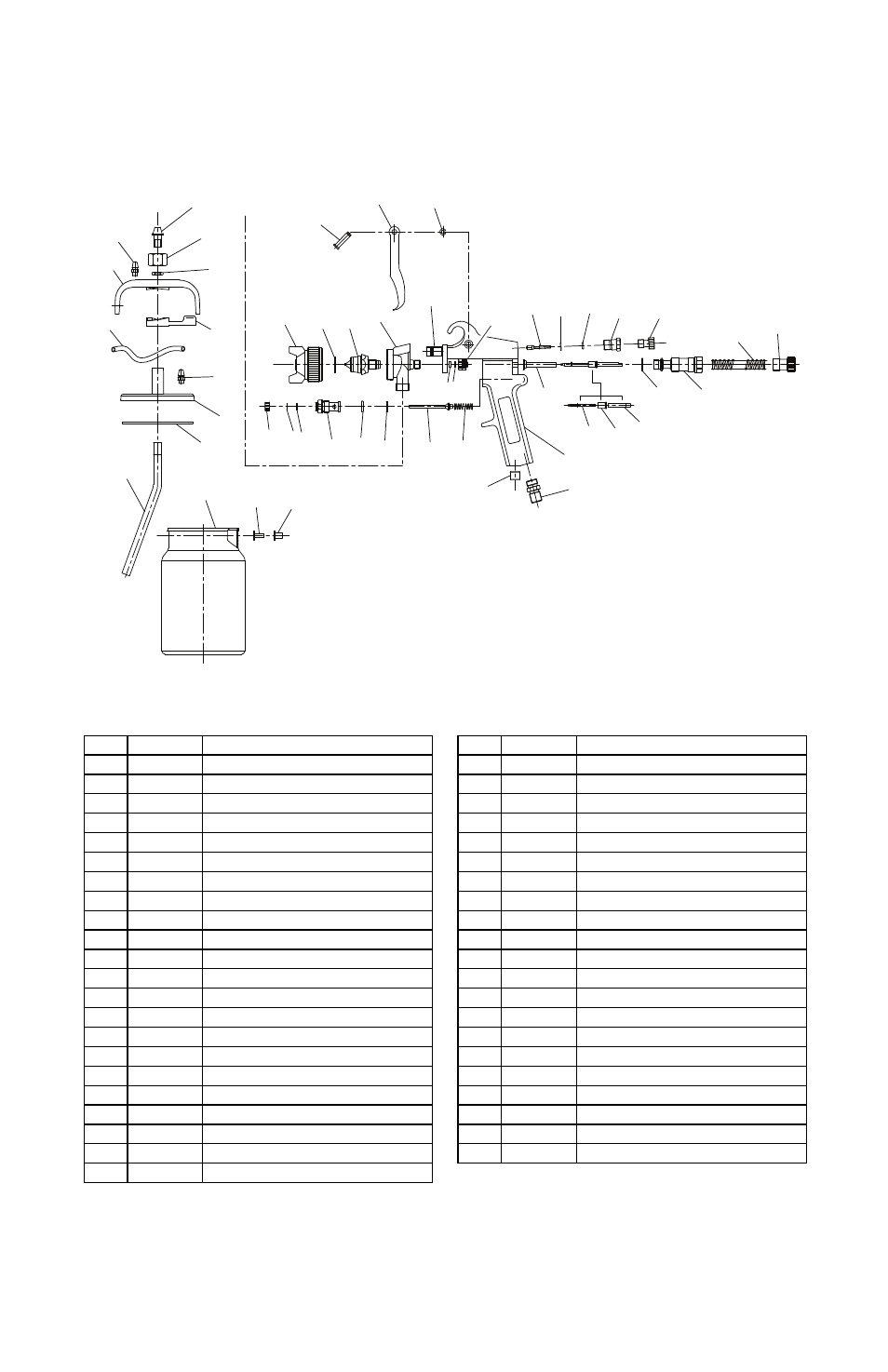

t23092 parts breakdown
1
2
3
4
5 6 7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44 45
Parts breakdown provided for reference only. Not all parts shown are available for purchase.
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
N/A
AIR INLET CONNECTOR 1/4" NPT
24
N/A
WASHER
2
N/A
SCREW
25
N/A
DIRECTION SCREW
3
N/A
GUN BODY
26
N/A
TRIGGER COMPRESSION SPRING
4
N/A
NEEDLE HOUSING
27
N/A
TRIGGER STEM
5
N/A
FLUID ADJUSTMENT NEEDLE
28
N/A
STEM WASHER
6
N/A
NEEDLE SLEEVE
29
N/A
O-RING 9 X 1.8
7
N/A
SPRING CORE
30
N/A
STEM SEAT
8
N/A
O-RING
31
N/A
WASHER
9
N/A
SPRING HOUSING
32
N/A
STEM SEAT NUT
10
N/A
NEEDLE COMPRESSION SPRING
33
N/A
FLUID INLET NOZZLE
11
N/A
FLUID CONTROL KNOB
34
N/A
INLET HEX NUT
12
N/A
PATTERN CONTROL KNOB
35
N/A
INLET THIN NUT
13
N/A
PATTERN NEEDLE SEAT
36
N/A
LOCK ARM
14
N/A
O-RING 4.5 X 1.8
37
N/A
LOCK LEVER
15
N/A
RETAINING RING
38
N/A
FLUID HOSE
16
N/A
PATTERN NEEDLE
39
N/A
HOSE CONNECTOR
17
N/A
TRIGGER
40
N/A
CUP LID
18
N/A
TRIGGER PIN
41
N/A
LID GASKET
19
N/A
CONNECTOR SCREW
42
N/A
SYPHON TUBE
20
N/A
HEAD
43
N/A
FLUID CUP
21
N/A
NOZZLE
44
N/A
CUP SCREW
22
N/A
WASHER
45
N/A
CUP PIN
23
N/A
ATOMIZING CAP
