REAR P
ANEL

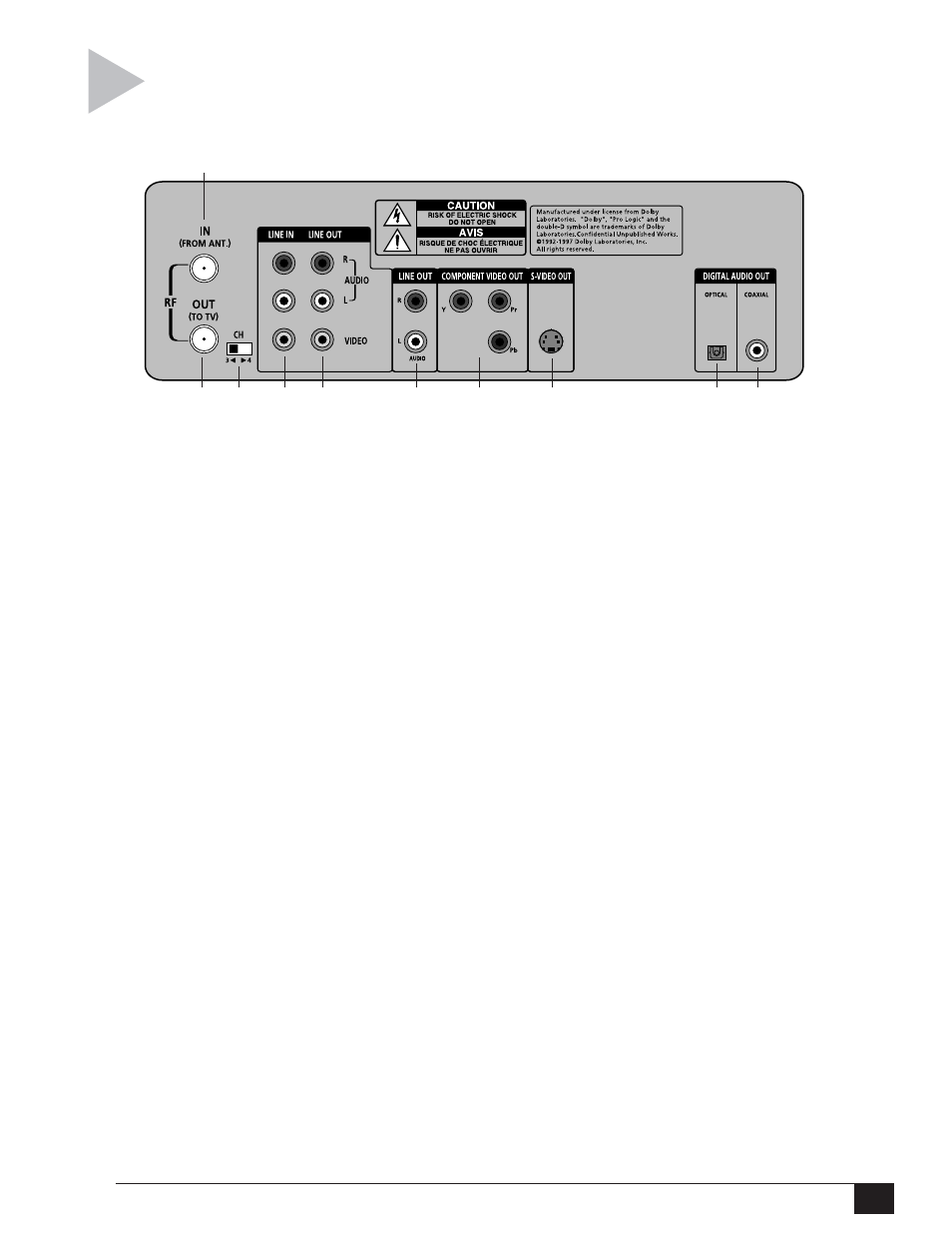

The following is an overview of the
DVD+VCR rear panel.
1
2
3
5
4
6
7
8
9
10
1
R F A N T E N N A I N P U T
Connect to your antenna, cable TV, or cable
box with an RF coaxial cable.
2
R F O U T T O T V
Connect to your television with an RF coaxial
cable.
3
V C R T U N E R C H A N N E L S W I T C H
Set to channel 3 or 4 (whichever channel
your television is tuned to).
4
L I N E 2 I N P U T
Connect from the outputs of an external
audio/video device.
5
L I N E O U T T O T V ( C O M P O S I T E )
Connect to your television with standard
RCA cables. Use these audio outputs ONLY
with the composite video output (yellow).
6
L I N E O U T T O T V ( S - V I D E O O R
C O M P O N E N T )
Connect to your television with standard
RCA cables. Use these audio outputs ONLY
with the Component or S-Video outputs.
7
C O M P O N E N T V I D E O O U T
Connect to your television with component
video cables (Y, Pb, Pr). For audio, use the
Line Out or Digital Audio Out (optical or
coaxial).
8
S - V I D E O O U T
Connect to your television with an S-Video
cable. For audio, use the Line Out or Digital
Audio Out (optical or coaxial).
9
D I G I T A L A U D I O O U T
( O P T I C A L )
Connect to your AV receiver with a digital
optical cable.
1 0 D I G I T A L A U D I O O U T
( C O A X I A L )
Connect to your AV receiver with a digital
coaxial cable.
