zūmo 200 Series Owner’s Manual
Getting Started

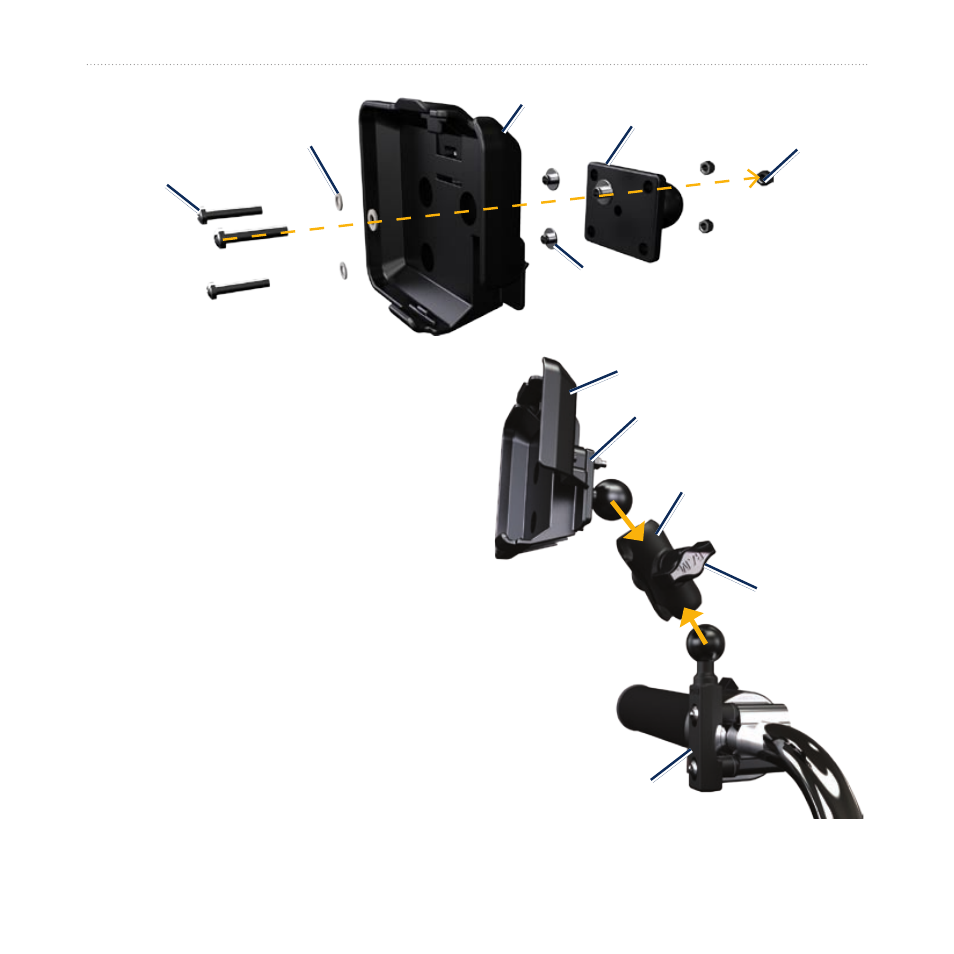

Base plate
Cradle
Panhead screws
Washers
Spacers
Nuts
Attaching the Base Plate to
the zūmo Mount
1. Thread the M4 × 40 mm panhead
screws through the washers, the
cradle, the spacers, and base plate.
2. Tighten the nuts to secure the base
plate.
Attaching the Base Plate to
the Handlebar Base
1. Align the ball of the handlebar base
and the ball of the base plate with the
double‑socket arm.
2. Tighten the knob slightly.
3. Adjust for better viewing and
operation.
4. Tighten the knob to secure the mount.
Cradle
Base plate
Double-socket arm
Knob
Handlebar base
