Gold's Gym Maxx Crosswalk 650 User Manual

Page 27

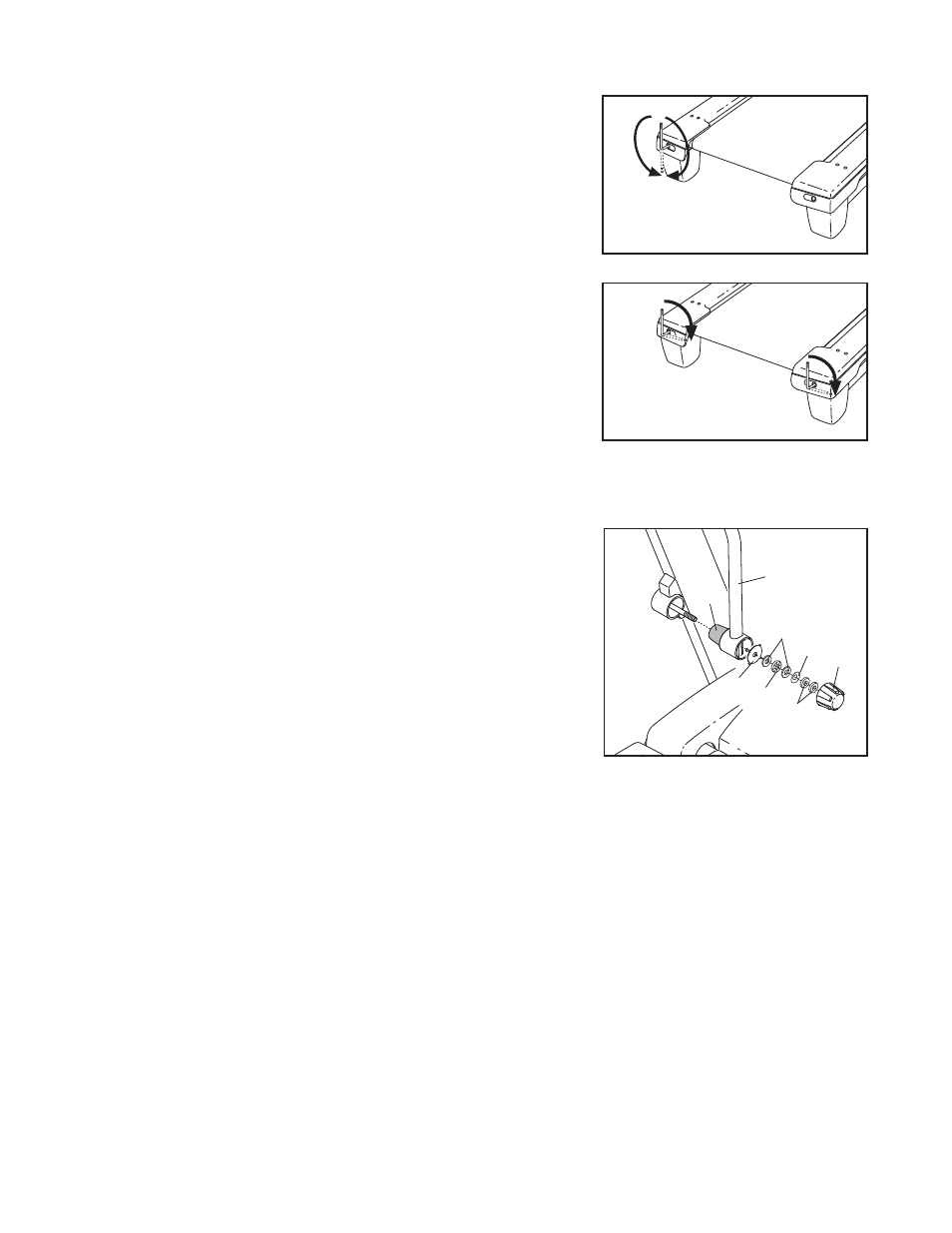

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the hex key to turn

the left rear roller bolt clockwise 1/2 of a turn; if the

walking belt has shifted to the right, turn the left

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Then, plug in the power

cord, insert the key, and run the treadmill for a few

minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both rear roller bolts clock-

wise, 1/4 of a turn. When the walking belt is correctly

tightened, you should be able to lift each edge of the

walking belt 3 to 4 in. (8 to 10 cm) off the walking plat-

form. Be careful to keep the walking belt centered.

Then, plug in the power cord, insert the key, and care-

fully walk on the treadmill for a few minutes. Repeat

until the walking belt is properly tightened.

PROBLEM: The upper body arms squeak during use

SOLUTION: a. (Note: Correcting this problem requires a small amount

of white marine grease, available at hardware stores.)

If the Left Upper Body Arm (97) squeaks, turn the

Resistance Knob (A) counterclockwise and remove it.

Next, remove the Resistance Cone (B) and the Left

Upper Body Arm, along with the Resistance Plate (C),

Washers (D), Spring Washer (E), Thrust Washers (F),

and Thrust Bearing (G). (Note: If the Resistance Plate

[C] comes out of the Resistance Cone [B], press it

back in.) Apply a thin layer of white marine grease to

the outer surface of the Resistance Cone (B). Then,

reattach all parts in the order shown at the right.

Repeat this procedure for the Right Upper Body Arm

(not shown) if necessary.
