Gold's Gym Maxx Crosswalk 650 User Manual

Page 25

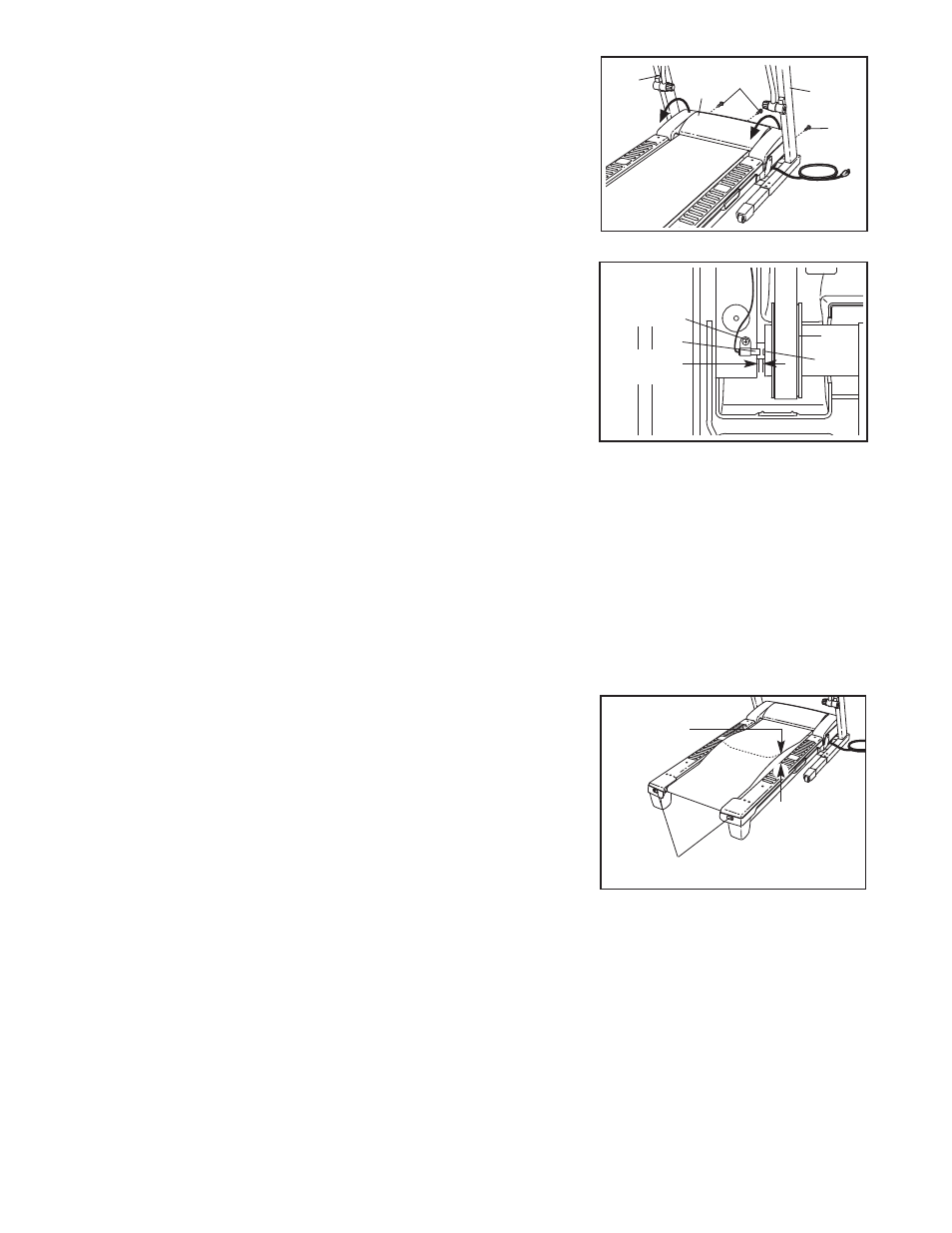

Raise the Uprights (84, 107) to the vertical position.

Remove the three #8 x 3/4" Hood Screws (7) from the

Motor Hood (41), and carefully pivot the Motor Hood

off.

Locate the Reed Switch (63) and the Magnet (46) on

the left side of the Pulley (47). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8 in. (3 mm). If necessary, loosen

the #8 x 1/2" Screw (33), move the Reed Switch

slightly, and then retighten the Screw. Reattach the

Motor Hood (not shown); make sure that the #8 x 3/4"

Hood Screws and the #8 x 3/4" Screws (not shown)

are inserted into the same holes from which they were

removed. Run the treadmill for a few minutes to check

for a correct speed reading.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the hex key, turn both rear

roller bolts counterclockwise, 1/4 of a turn. When the

walking belt is properly tightened, you should be able

to lift each edge of the walking belt 3 to 4 in. (8 to 10

cm) off the walking platform. Be careful to keep the

walking belt centered. Then, plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please see the front cover of this manual.

Rear Roller Bolts

3–4 in.

Top

View

107

1/8 in.
