Model G5354 Airbrush -7 -
SECTION 3: SETUP
Your airbrush left our warehouse in a care-
fully packed box. If you discover the air-
brush is damaged after you have signed for
delivery, please immediately call Customer
Service at (570) 546-9663 for advice.
Save the containers and all packing materi-
als for possible inspection by the carrier or
its agent. Otherwise, filing a freight claim
can be difficult.
After you have unpacked the carton you
should find the following:

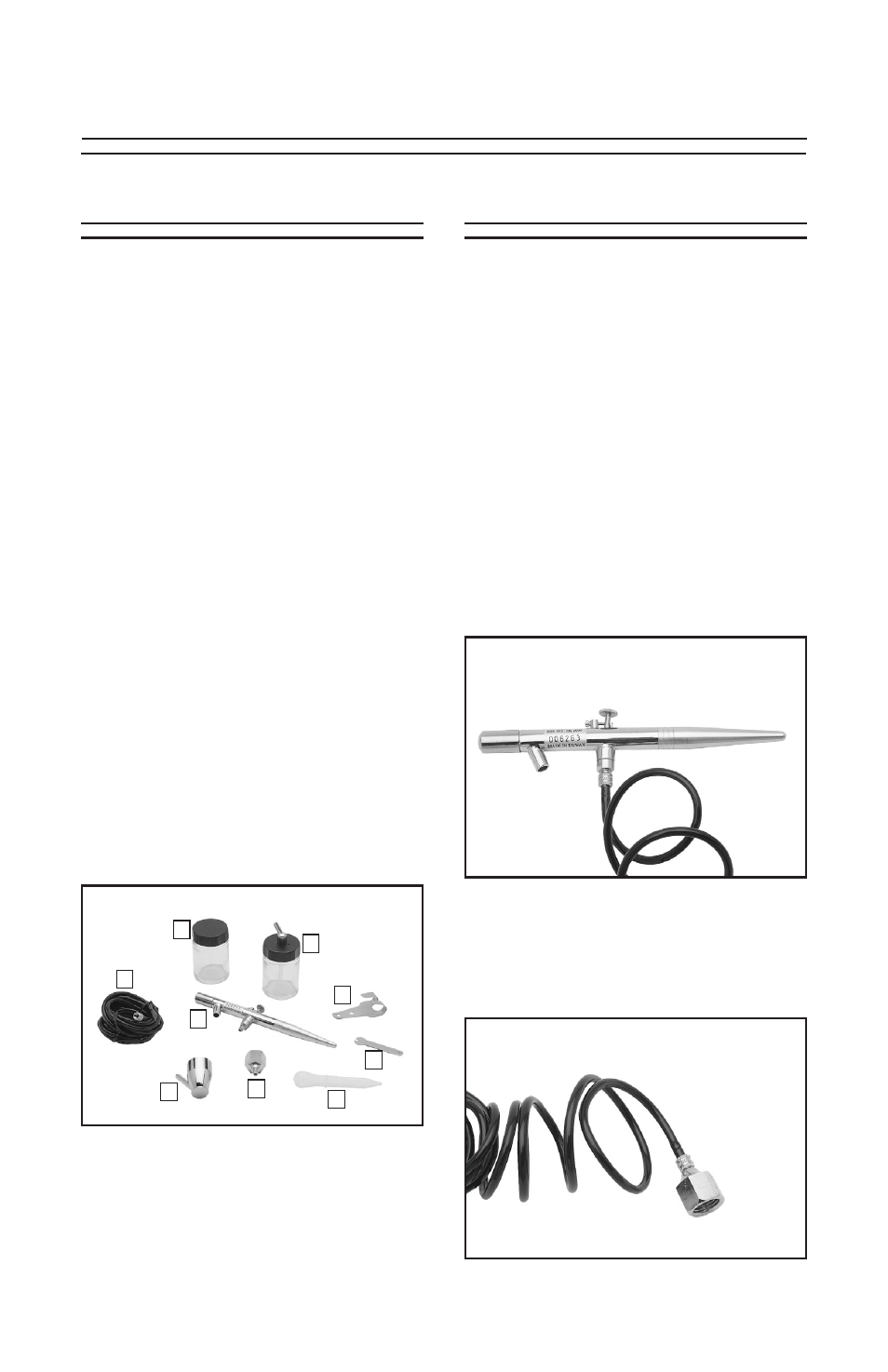

Model G5354 Inventory (Figure 1)
A. Glass Jar w/Enclosed Lid .................. 1
B. Glass Jar w/Suction Lid ..................... 1
C. Air Hose ............................................. 1
D. Airbrush .............................................. 1
E. Airbrush Hanger ................................. 1
F. Metal Jar ............................................ 1
G. Adapter .............................................. 1
H. Nozzle Tip Wrench 2mm ................... 1
I. Eyedropper ........................................ 1
Inventory
Prior to assembly and use of the air-
brush, it is essential that all parts be thor-
oughly cleaned and dried. Please refer to
Cleaning in the MAINTENANCE section
on
Page 11 for more detailed instructions.
During assembly, make sure all connec-
tions are tight enough to prevent air leaks
but not so tight as to cause damage.
To assemble the airbrush:
1. Attach one end of the air hose to the
airbrush body, as shown in Figure 2.
Assembly
Figure 2. Air hose attached to airbrush.
Figure 1. Model G5354 inventory.
A
B
C
D
E
F G
I
2. Attach the adapter to the air hose, as
shown in Figure 3.
Figure 3. Adapter attached to air hose.
H
