1) The system fuses are 20 amp SB, 250V for 115 VAC operation and 10
amp ST, 250 V for 230 VAC operation.
2) The power cord is rated at 115 VAC, 20 amps. (230 VAC, 10 amps op-
tional.)
3) A drain plug is provided for ease of removing the fluid media from the
bath. Always use a container of adequate size to hold the FULL LOAD
of fluid. Some oils are more easily drained at higher temperatures.
Caution: Do not exceed a 100°C fluid temperature for draining. The valve
could be damaged if 100°C is exceeded. Insulate the container from the
floor and other objects.
4) The serial RS-232 interface attaches to the back of the bath at the con-
nector labeled "RS-232".
5) The removable vent panel can be removed to access the condensor for
cleaning. See Section 12, Maintenance.
25
7 Parts and Controls
RS-232
DRAIN
FUSE
POWER
FUSE
FU
S
E
FU SE
F
U
S
E
FU
S
E
FU SE
F
U
S E
1
2
3
4
5

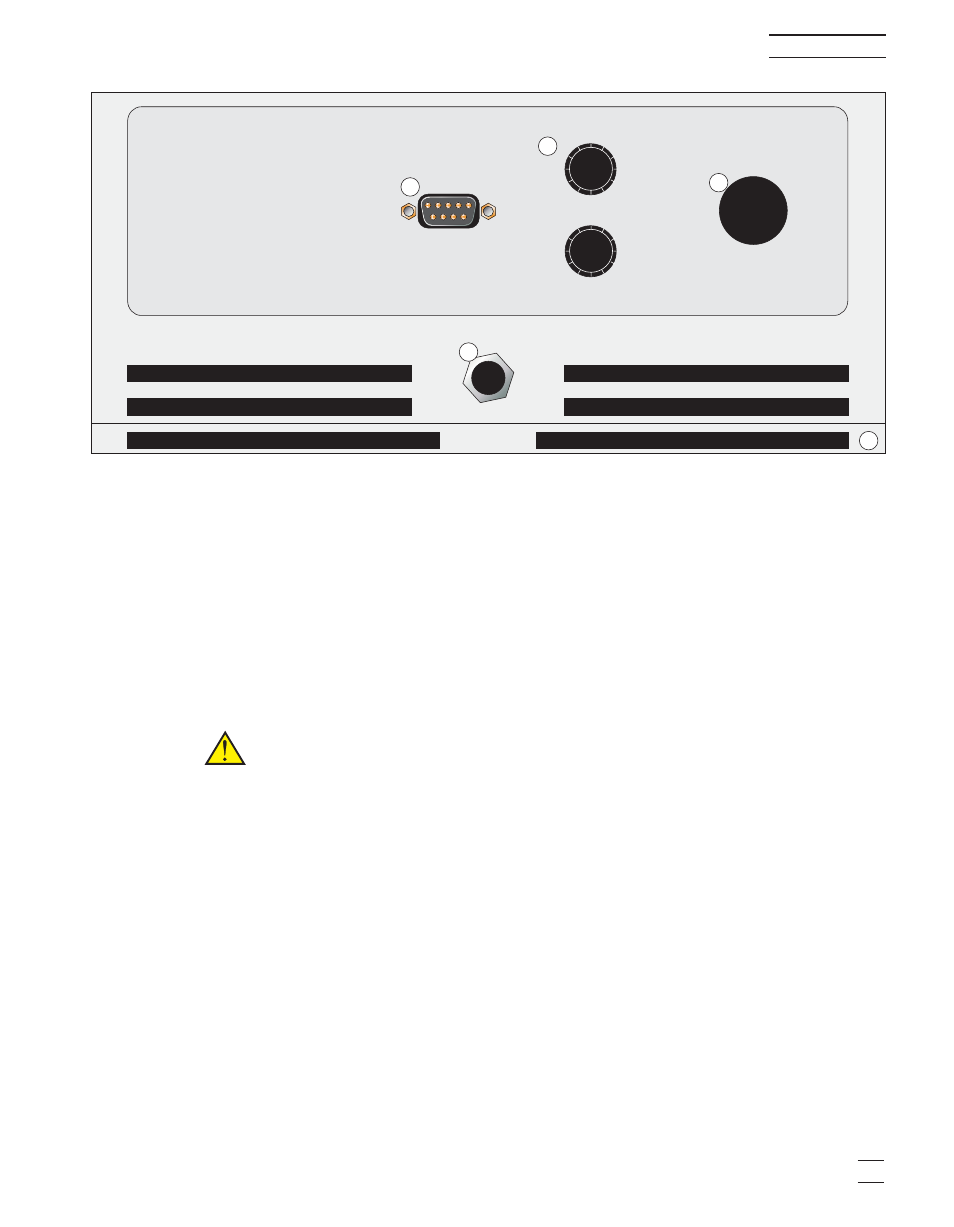

Figure 3 Back Panel
