Exploded view and parts list – alternator – Generac 9801-7 User Manual
Page 23
23
10000EXL Extended Life Generator

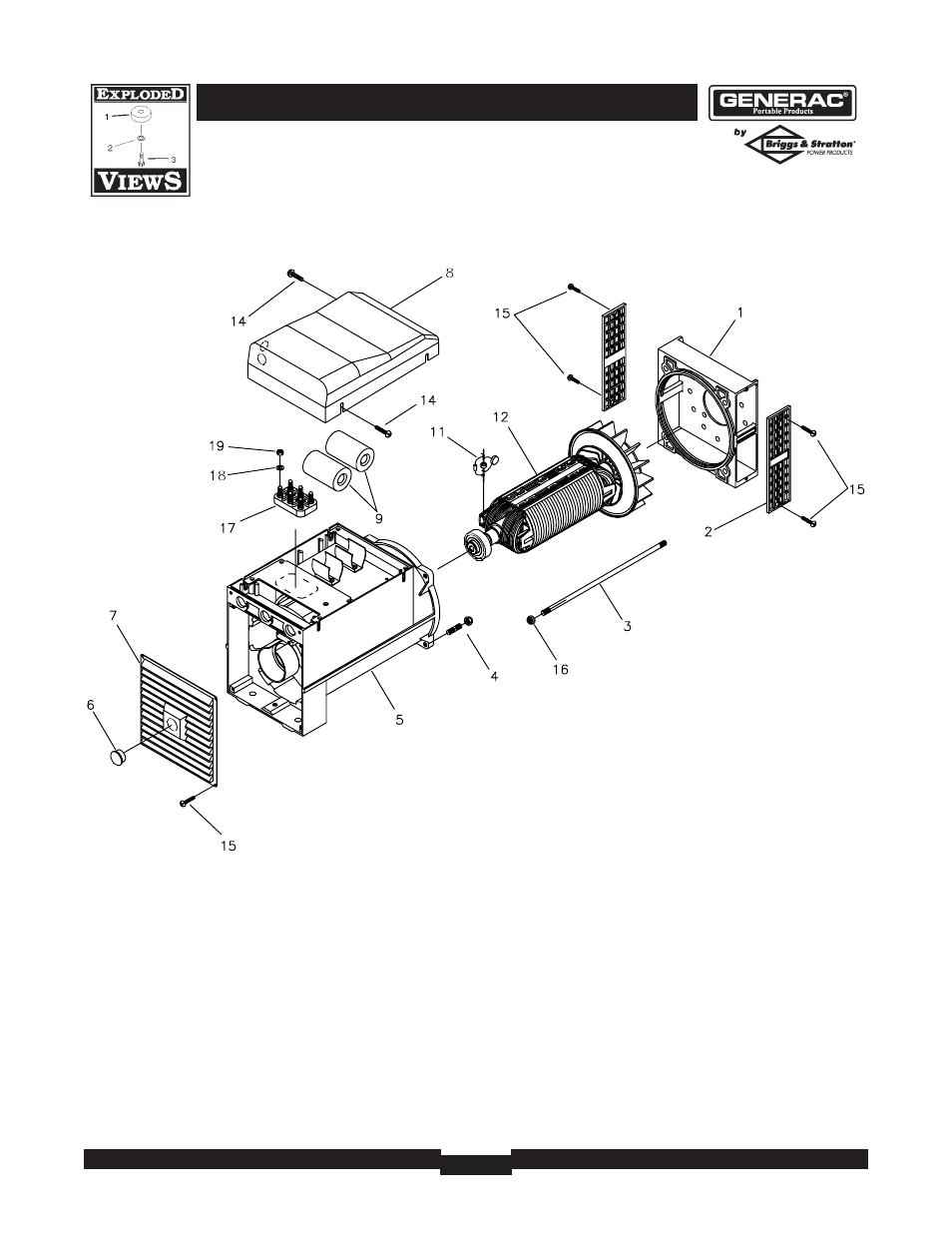

EXPLODED VIEW AND PARTS LIST – ALTERNATOR
Item Part #
Qty Description
1
B4906GS
1 SHIELD, Front
2
B4907GS
2 GRID, Front
3
B4908GS
1 BOLT, Shaft Stay
4
B4909GS
4 BOLT, Stay
5
B4910GS
1 ASSY, Housing
6
B4911GS
1 CAP
7
B4912GS
1 COVER, Blind End
8
B4913GS
1 COVER,Top Black
9
B4914GS
2 CAPACITOR
11
B4916GS
1 CAPACITOR, Diode + Varistor + EMC
12
191297GS
1 ASSY, Rotor (Includes Item 11)
14
B4919GS
2 SCREW
15
B4920GS
8 SCREW
16
49820GS
1 NUT, Lock
17
188928GS
1 CONNECTOR, 6-Pin
18
22473GS
6 WASHER
19
49813GS
6 NUT
