10000EXL Extended Life Generator

22

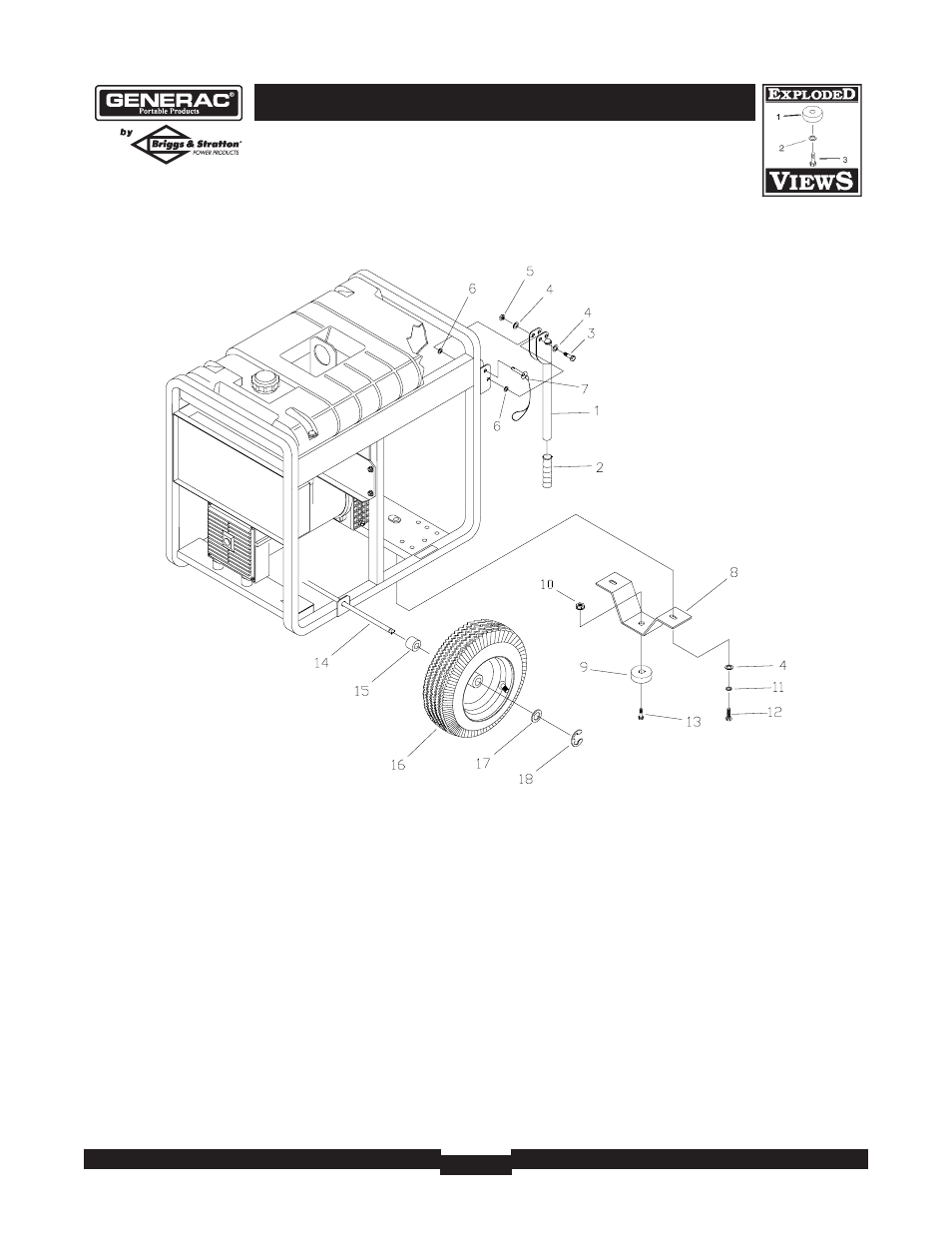

EXPLODED VIEW AND PARTS LIST – WHEEL KIT

Item Part #

Qty Description

1

BB5586GS

2 HANDLE (Includes Item 2)

2

B4605GS

2 GRIP

3

39287GS

2 SCREW

4

22145GS

6 WASHER

5

49820GS

2 NUT, Nylok

6

187104GS

4 WASHER, Nylon

7

B4135GS

2 PIN, with Lanyard

8 B93394GS

1 LEG, Mounting

Support

9

191413GS

1 VIBE MOUNT, with Washer

10

52858GS

1 NUT, Lock

11

22129GS

2 WASHER, Lock

12

39253GS

2 SCREW

13

42909GS

1 SCREW

14

191267BGS

1 AXLE

15

B89635GS

2 SPACER,Wheel

16

89742GS

2 WHEEL

17

22247GS

2 WASHER,Wheel

18

191265GS

2 E-RING
