Page 22
- 22 -
GA-K8NS Pro Motherboard
English

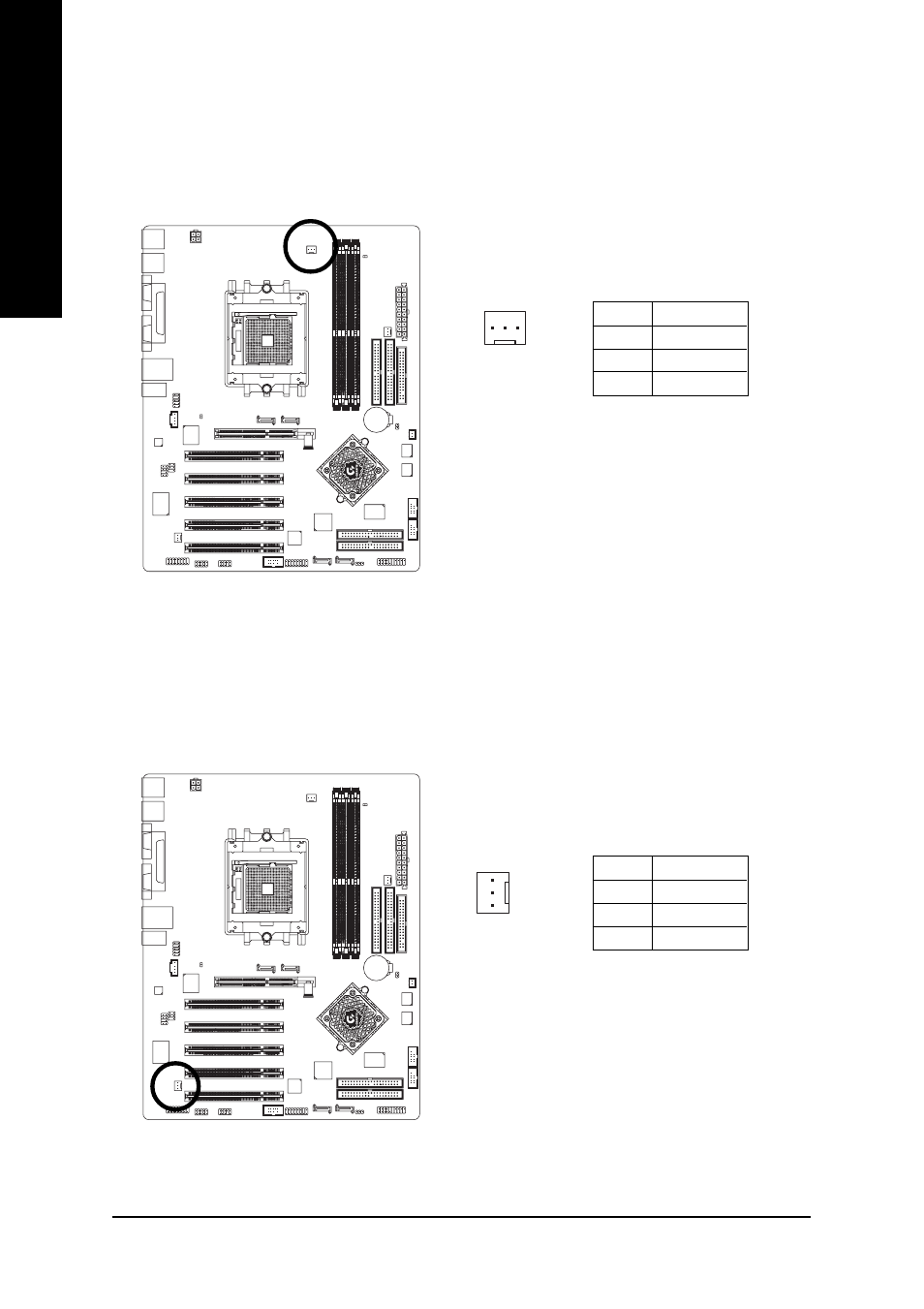

3) CPU_FAN (CPU Fan Connector)
Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running
under abnormal condition or damaged by overheating. The CPU fan connector supports Max.
current up to 600 mA.
4) SYS_FAN (System Fan Connector)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
Pin No.
Definition
1
GND
2
+12V
3
Sense
Pin No.
Definition
1
GND
2
+12V
3
Sense
1
1
