Grizzly G9731 - Manual (Page 117)

BdYZa<.,(%$<.,(&B[\#H^cXZ.$%%
"&%."

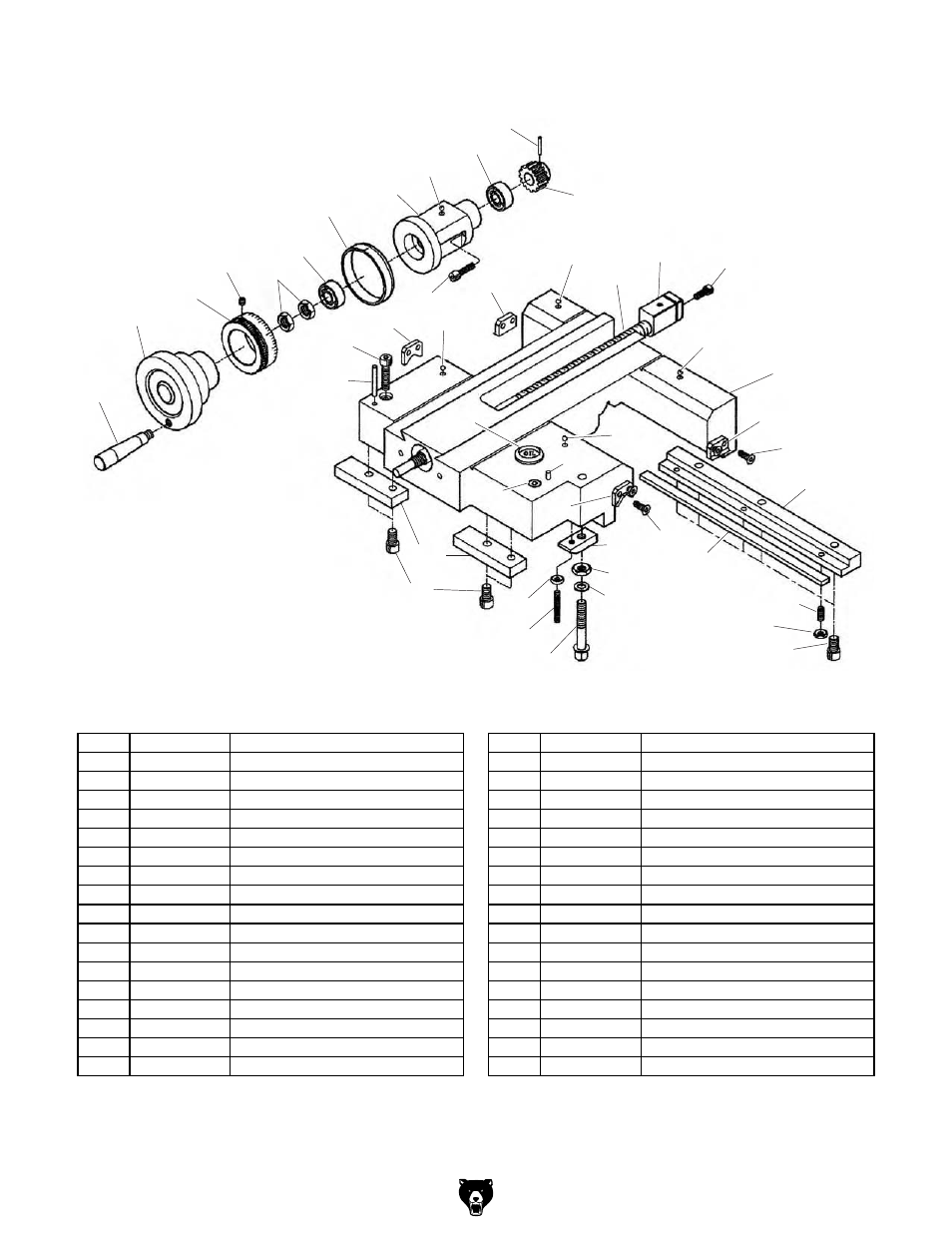

Carriage
'&%&
'&%'6
'&%(6
'&%)
'&%*
'&%+
'&%,
'&%-8
'&%.
'&&%
'&&&
'&&'
'&&(
'&&)
'&&*
'&&+
'&&,
'&&-
'&&.
'&'%
'&'&
'&''
'&'(
'&')
'&'*
'&'+
'&',
'&'-
'&'.
'&(%
'&(&
'&('
'&((
'&'*
'&&.
'&&.
'&&.
'&(%
'&''
'&&.
'&&+
'&&*
'&',
'&'%
'&()
.'+·;daadlGZhi6hhZbWanCdiH]dlc
.',·HiZVYnGZhi6hhZbWanCdiH]dlc
REF PART # DESCRIPTION REF PART # DESCRIPTION
926 P9730926 FOLLOW REST ASSEMBLY 2117 P97302117 LOCK BOLT M6-1 X 40
927 P9730950 STEADY REST ASSEMBLY 2118 PW03M FLAT WASHER 6MM
2101 P97302101 CARRIAGE CASTING 2119 PLUBE001 TAP-IN BALL OILER 1/4
2102A P97302102A CROSS LEADSCREW 16-10 X 423 2120 PN01M HEX NUT M6-1
2103A P97302103A CROSS FEED NUT 16-10 INCH 2121 PN01M HEX NUT M6-1
2104 P97302104 CROSS FEED PINION 2122 PRP30M ROLL PIN 5 X 50
2105 P97302105 CROSS FEED KEEPER 2123 PRP06M ROLL PIN 5 X 24
2106 P97302106 COLLAR 2124 P97302124 OIL CAP
2107 P97302107 THRUST NUT 1/2-20 2125 P2902 THRUST BEARING 2902
2108C P97302108C INDEX RING DUAL 2126 PSS90M SET SCREW M6-1 X 40
2109 P97302109 HANDWHEEL 2127 PS09M PHLP HD SCR M5-.8 X 10
2110 P97302110 HANDLE 2128 PSS02M SET SCREW M6-1 X 6
2111 P97302111 FRONT GUIDE BAR 2129 PSS25M SET SCREW M6-1 X 20
2112 P97302112 CLAMP PLATE 2130 PCAP05M CAP SCREW M8-1.25 X 50
2113 P97302113 REAR GUIDE BAR 2131 PCAP10M CAP SCREW M5-.8 X 15
2114 P97302114 REAR SADDLE GIB 2132 PCAP06M CAP SCREW M6-1 X 25
2115 P97302115 FLAT WIPER 2133 PCAP11M CAP SCREW M8-1.25 X 16
2116 P97302116 V-WIPER 2134 PCAP14M CAP SCREW M8-1.25 X 20
