Gold's Gym 550 - Manual (Page 9)

9

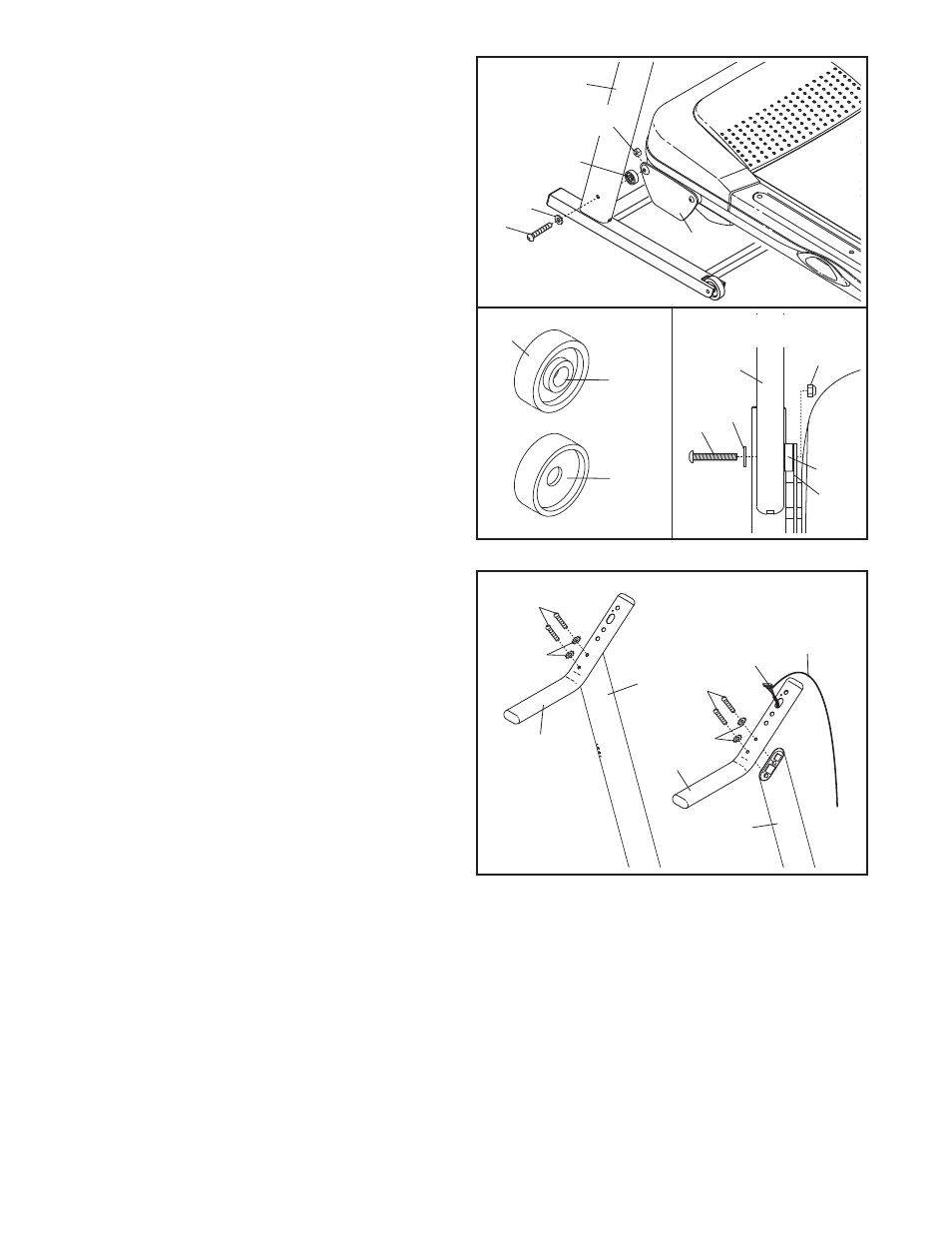

7. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (34).
Hold the Frame Spacer (34) between the Left
Upright (31) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a 3/8" x 3" Bolt (32), a 3/8" Flat
Washer (33), and a 3/8" Locknut (47); do not
fully tighten the Bolt yet.
7
31
32
32
34
34
33
47
47
59
33
59
Outer
Side
Inner
Side
34
31
8. Route the Upright Wire (28) through one of the
Handrails (18) as shown. If necessary, use
needlenose pliers to help pull out the Upright
Wire. Remove the wire tie from the Upright Wire.
Attach the Handrail (18) to the Right Upright (36)
with two 5/16" x 2 1/4" Bolts (20) and two 5/16"
Star Washers (19). Be careful not to pinch the
Upright Wire (28).
Attach the other Handrail (18) to the Left Upright
(31) with two 5/16" x 2 1/4" Bolts (20) and two
5/16" Star Washers (19).
31
28
Wire Tie
20
19
18
20
19
18
8
36
Top View
