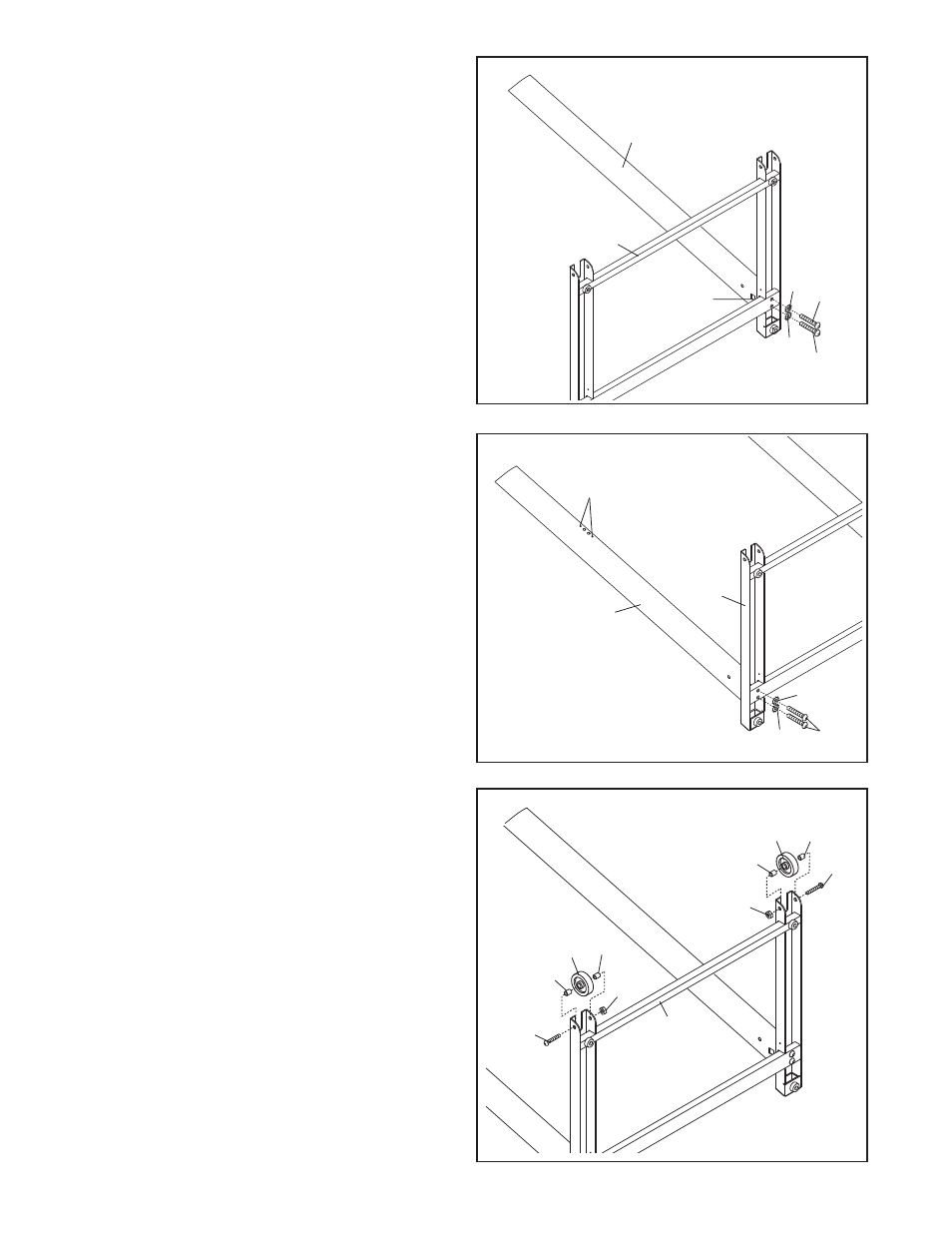

3. Orient the Left Upright (31) as shown, and attach
it to the Base (48) with two 3/8" x 2 1/4" Bolts
(40) and two 3/8" Star Washers (7); do not fully
tighten the Bolts yet.
48
31
7
7 40
Latch
Holes
3
2. Orient the Base (48) as shown.
Identify the Right Upright (36), which has a
square hole near the lower end.
Orient the Right Upright (36) as shown, and
attach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (40) and two 3/8" Star Washers (7); do not
fully tighten the Bolts yet.
48
Square
Hole
40
40
7
7
36
2
4. Attach a Wheel (45) to each side of the Base
(48) with a 3/8" x 3" Bolt (32), two Wheel
Spacers (44), and a 3/8" Locknut (47) as shown.
Do not overtighten the Bolts; the Wheels
should turn freely.
48
45
47
44
44
32
45 44
44
32
47
4
