6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re-
quires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose
of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, lubricant may be transferred to the top of the walking
belt or to the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lu-
bricant on top of the walking belt, wipe it off with a soft cloth and mild, non-abrasive cleaner.

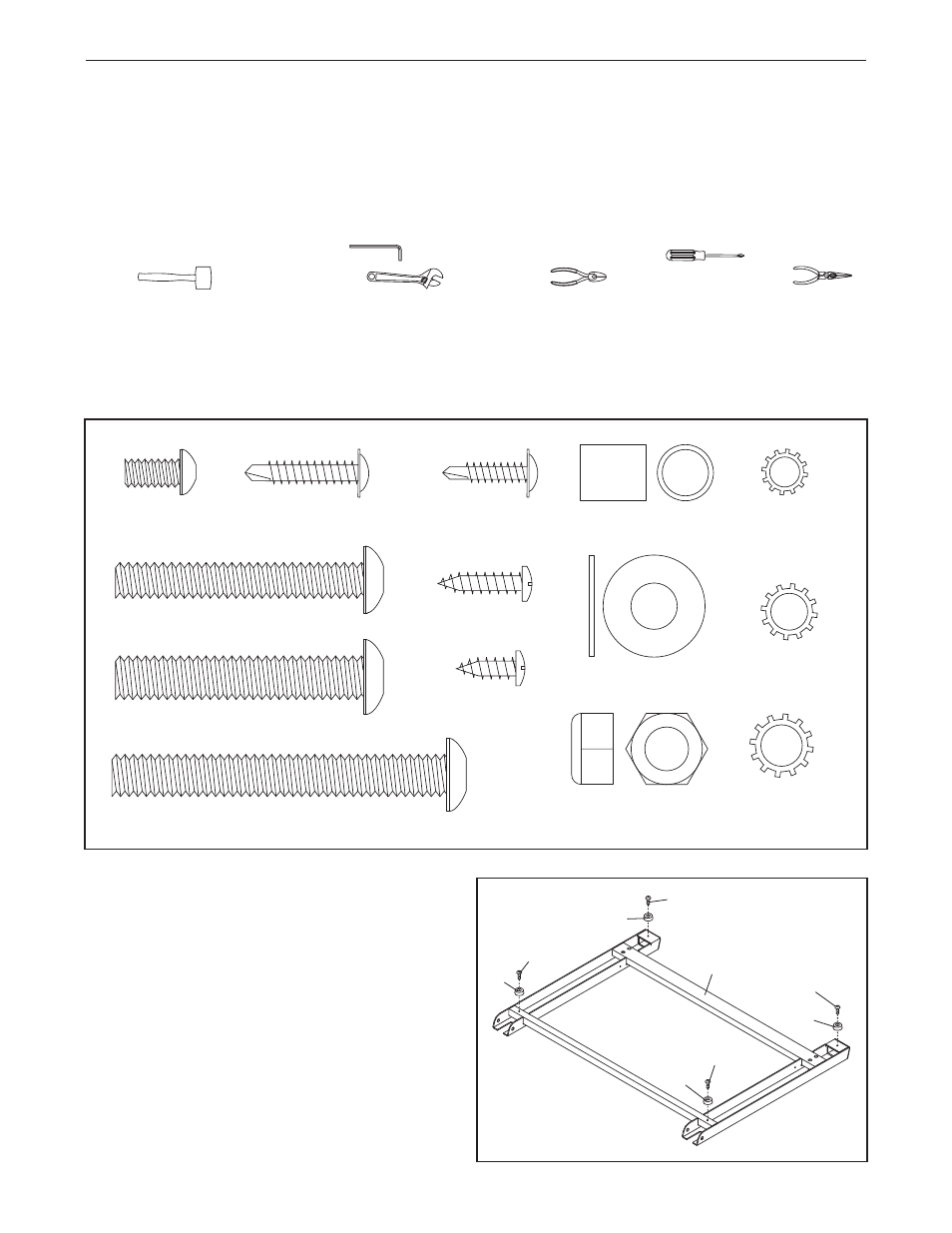

Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , wire cutters , and needlenose pliers .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
#8 x 1/2" Ground
Screw (11)–2
3/8" Locknut
(47)–4
#8 x 3/4" Screw (2)–4
3/8" x 2 1/4" Bolt (40)–4
3/8" Flat Washer
(33)–2
5/16" x 2 1/4" Bolt (20)–4
Wheel Spacer
(44)–4
1/4" x 1/2"
Bolt (22)–2
#8 x 3/4"
Tek Screw (38)–4
#10 x 1" Tek
Screw (27)–2
3/8" Star Washer
(7)–4
1/4" Star Washer
(21)–2
5/16" Star
Washer (19)–4
3/8" x 3" Bolt (32)–4
1. Orient the Base (48) as shown. Attach the four
Base Pads (37) to the Base with four #8 x 3/4"
Tek Screws (38).
37
37
37
38
37
38
38
48
38
1
