11
14. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 24). To protect the floor or carpet, place a mat under the treadmill.

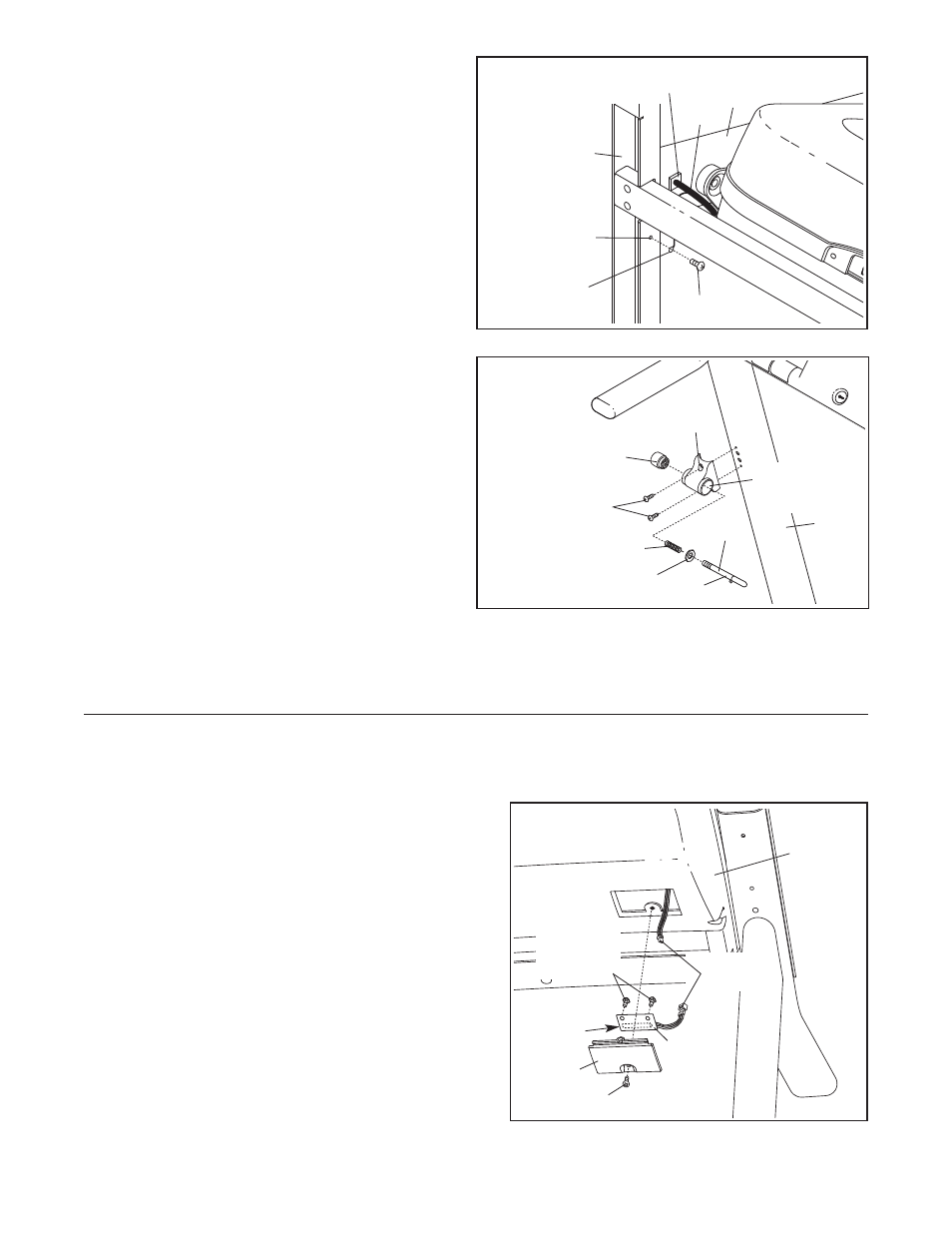

13. Attach the Latch Housing (30) to the Left Upright
(31) with two #10 x 1" Tek Screws (27). Make
sure that the large hole in the Latch Housing
is on the side shown. Do not overtighten the
Tek Screws.
Locate the Latch Pin Assembly (29). Remove
the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert
the pin into the Latch Housing (30), and tighten
the knob onto the pin.
27
30
31
13
Knob
Pin
Collar
Spring
12. Attach the ground wire on the Upright Wire (28)
to the indicated hole in the Base (48) with a #8 x
1/2" Ground Screw (11).
Press the indicated grommet into the Right
Upright (36).
Raise the Uprights (31, 36).
48
28
36
12
11
Ground
Wire
Grommet
If you purchase the optional chest pulse sensor (see page 20), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screw (2) and the
Access Door (6) from the Console Base (26).
2. Connect the wire on the receiver to the indicated wire
extending from the Console Base (26). Hold the re-
ceiver so that the small cylinder is oriented as
shown and is facing the Console Base. Attach the
receiver to the plastic posts on the Access Door (6)
with the two included small screws.
3. Make sure that no wires are pinched. Reattach the
Access Door (6) with the #8 x 3/4" Screw (2). Discard
the other wires included with the receiver. Receiver
6
Small
Cylinder
2
26
Small
Screws
Wires
Hole
29
Large
Hole
