1 INTRODUCTION
1.1 FEATURES
Each SNMP/Web adapter provides the following features:
• 10/100 Mpbs connection speed
• Use of DHCP / BOOTP or manual configuration for the TCP/IP network settings
• SNMP Agent
• Web server
• Console interface
• UPS status / alarms / readings, alarm logging over different interfaces
• Digital outputs (open-collector outputs for relay drive) – 1-ph plug-in version only
• SNMP Traps and E-mail notification upon UPS alarm
• Advanced security features
1.2 OVERVIEW
3-ph SNMP/Web plug-in adapter (P/N 1018959)

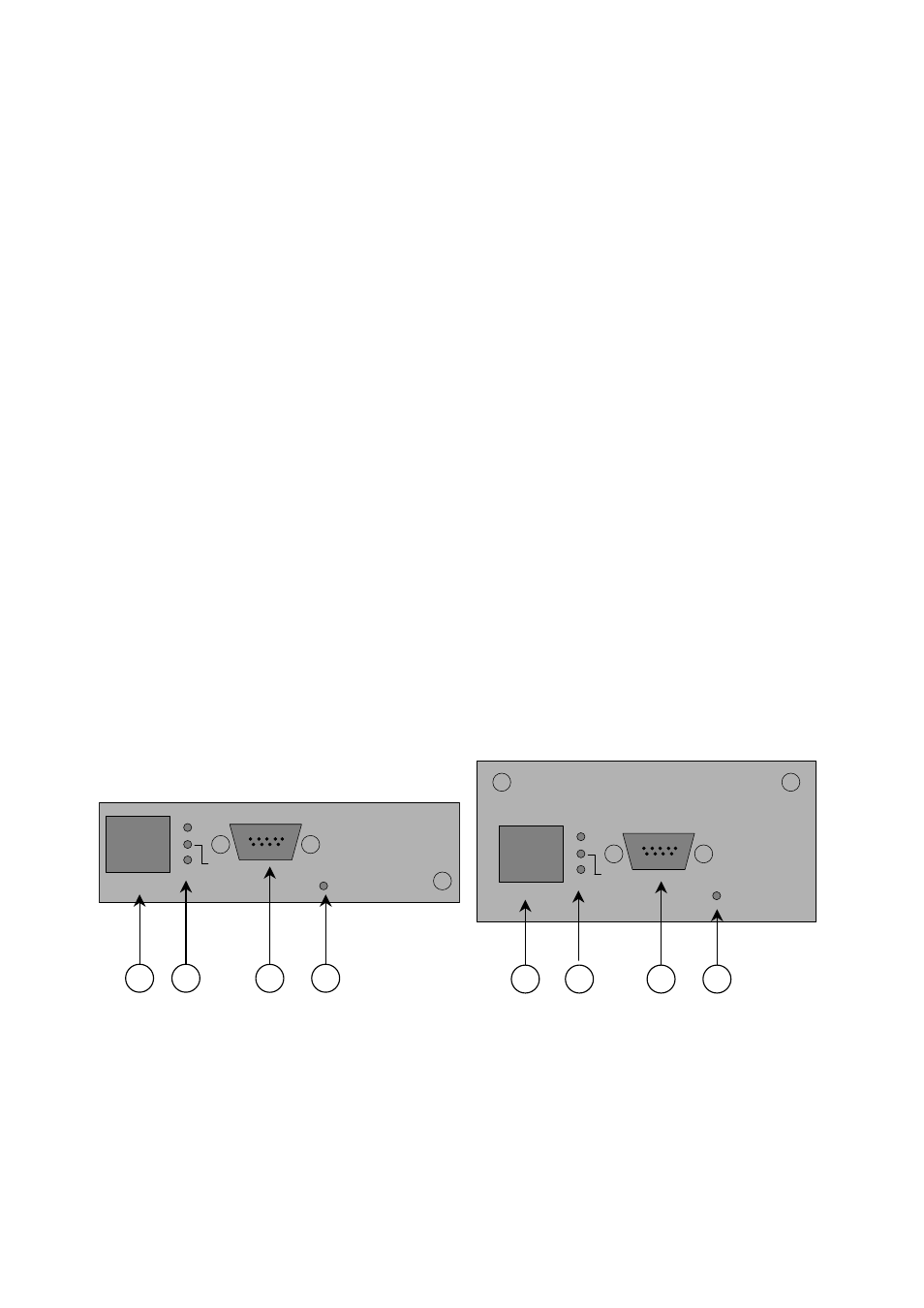

Front panel / User interface view
Site Pro / SG Series
LP33 Series
Reset
RS-232
UTP 10/100
Active
LAN
UPS
Reset
RS-232
UTP 10/100
Active
LAN
UPS
1
Reset
RS-232
UTP 10/100
Active
LAN
UPS
Reset
RS-232
UTP 10/100
Active
LAN
UPS
1
4
3
2
2
3
4
•
1 – RJ45 Connector
Ethernet connection, 10Base-T or 100Base-TX
•
2 – LEDs
Ref. specific section
•
3 – RS-232 port
Local console connection (115200-N-8-1)
•
4 – Reset button
HW reset
