Grizzly Jointer/ G0634Z - Manual (Page 11)

model g0634z manual insert (mfg. 5/09+)
-11-
)%)
)%*
)&&
)%'
)%(
)%.
)%,
)%&
)%+
)&*
)%-"&
)&.
)&%
)&,
)&-
)'%
)'&
)'' )'(
)') )'*
)&)
)'&
)&'
)&(
)(,
)(-
)',
)'-
)'.
)(%
)()
)'&
)((
)'+
)(+
)(&
)('
)&)
)'%
)(*
)()
)%-"'
)%-

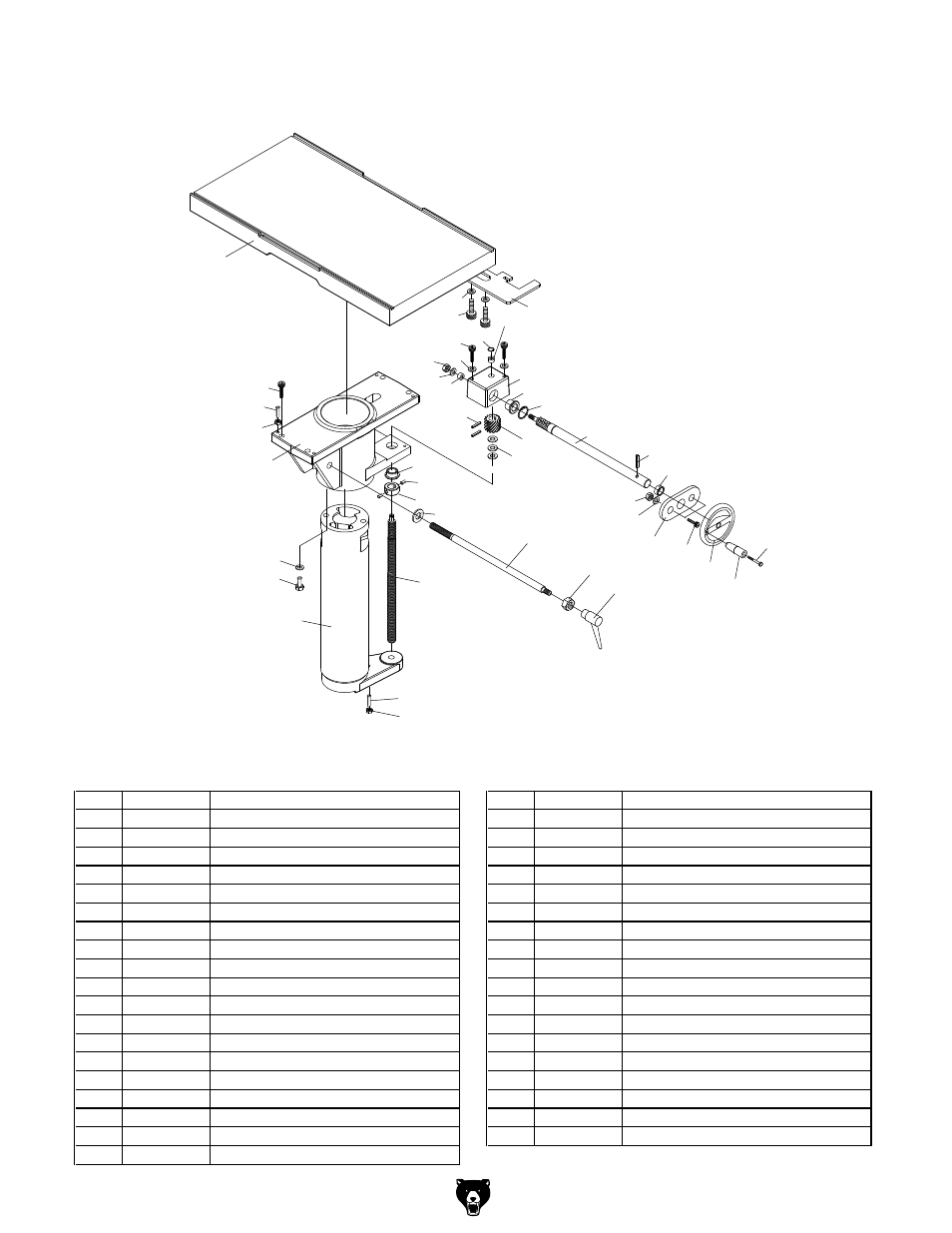

planer table
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0633401 PLANER TABLE 420 P0633420 BUSHING
402 P0633402 COLUMN 421 PW07 FLAT WASHER 5/16
403 P0633403 CYLINDER LINER 422 PLN03 LOCK NUT 5/16-18
404 P0633404 LOCK SCREW 423 PLW02 LOCK WASHER 1/4
405 P0633405 COLLAR 424 PCAP56 CAP SCREW 1/4-20 X 2-1/4
406 P0633406 THICKNESS POINTER 425 PR88M INT RETAINING RING 8MM
407 P0633407 GEAR BOX 426 PRP05M ROLL PIN 5 X 30
408 P0633408 BUSHING 427 PSS05 SET SCREW 5/16-18 X 1/4
408-1 P0633408-1 SELF-LUBRICATION BUSHING 428 P0633428 SPECIAL FLAT WASHER
408-2 P0633408-2 SELF-LUBRICATION BUSHING 429 PLW04 LOCK WASHER 3/8
409 P0633409 GEAR 430 PB16 HEX BOLT 3/8-16 X 1-1/2
410 P0633410 WORM SHAFT 431 PSS01 SET SCREW 5/16-18 X 1
411 P0633411 ELEVATION LEAD SCREW 432 PCAP19 CAP SCREW 3/8-16 X 1-1/4
412 P0633412 SHIELD PLATE 433 PB09 HEX BOLT 5/16-18 X 1/2
413 P0633413 HANDWHEEL 434 PN08 HEX NUT 3/8-16
414 PN02 HEX NUT 5/16-18 435 PSS36 SET SCREW 3/8-16 X 2
415 P0633415 UNIVERSAL LOCK LEVER 436 PS35 PHLP HD SCR 5/16-18 X 3/4
417 P0633417 ROLL PIN 437 P0633437 HANDLE
418 P0633418 THRUST BEARING NTB1528 +2AS 438 P0633438 SPECIAL SCREW 3/8-16 X 3-3/8
419 PR79M INT RETAINING RING 19MM
