13
12. Adjust the 0° bevel adjustment screw (30) with the 6mm
hex key to bring the saw blade into alignment with the
square (Fig. T).

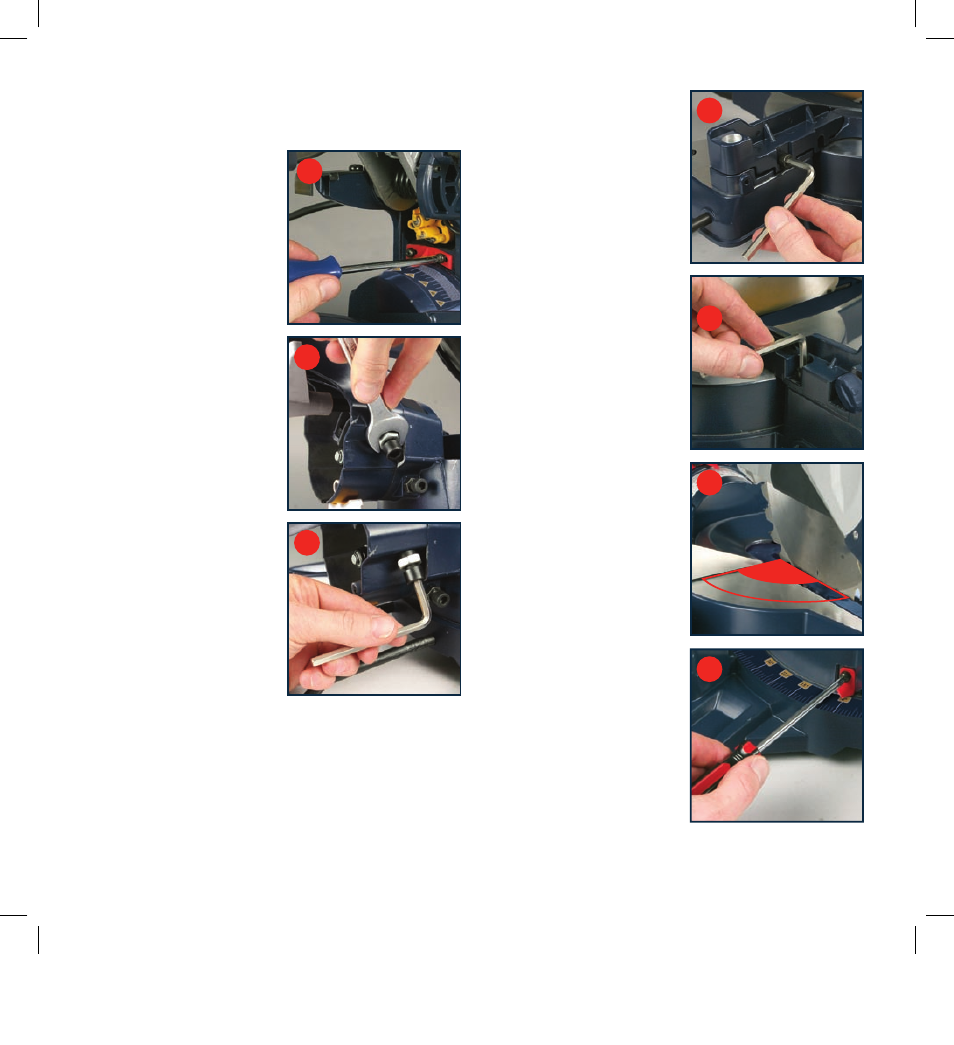

13. Loosen the 2 Phillips
head screws holding
the pointer of the bevel
scale (17) and adjust the
position of the pointer so
that it accurately indicates
zero on the scale (Fig. U).
Retighten the screw.
14. Retighten the bevel lock
(16) and the lock nut
securing the 0° bevel
adjustment screw (30).
Note. The above procedure
can also be used to check the
angle of the saw blade to the
table at either 45º bevel angle
to the left or to the right. The
45° bevel adjustment screws
(28 & 29) are on opposite
sides of the saw arm. You
will require a 13mm wrench
or adjustable wrench (not
supplied) for the lock nut
(Fig. V) and the 6mm hex key
for the set screws (Fig. W).
Setting the fence
square with the table
1. Make sure that the
electrical plug is removed from the power point.
2. Push the saw arm (5) down to its lowest position and
engage the release knob (6) to hold the saw arm in the
transport position.
3. Loosen the mitre lock (25).
4. Rotate the table (21) until the pointer is positioned at 0º.
5. Tighten the mitre lock (25).
6. Using the 6mm hex key
loosen the hex screw
securing the top piece of
the right hand side fence
(Fig. X) and remove this
top section.
7. Using the 6mm hex key
provided, loosen the four
screws securing the fence
(19) to the base (Fig. Y).
8. Place a square against the
fence (19) and alongside
the blade (Fig. Z).
9. Adjust the fence (19) until it
is square with the blade.
10. Tighten the screws
securing the fence (19).
11. Loosen the Phillips head
screw holding the pointer
of the mitre scale (22)
and adjust it so that it
accurately indicates the
zero position on the mitre
scale (Fig. a).
12. Retighten the screw
securing the mitre
scale pointer.
13. Replace the top section
of the fence and secure
the hex screw using the
6mm hex key.
Changing a blade
DANGER! Never try to use a
blade larger than the stated
capacity of the saw. It might
come into contact with the blade guards. Never use a blade
U
V
W
X
Y
Z
90°
a
