11
WARNING. Be sure to tighten
the bevel lock before making
a cut. Failure to do so could
result in the saw arm moving
during the cut and cause
serious personal injury.

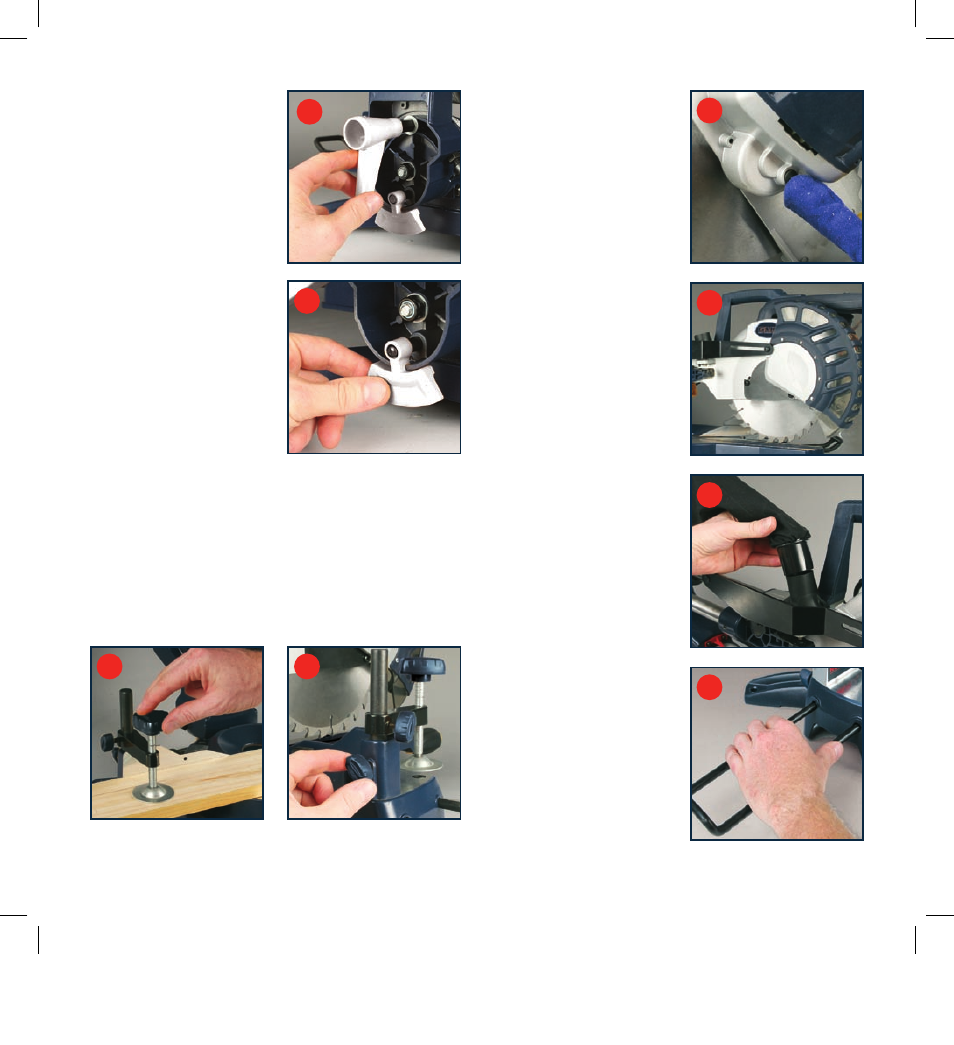

Bevel adjuster
The bevel adjuster (18) needs
to be pulled out before the
bevel angle can be adjusted
(Fig. F).
To return the saw arm to
the vertical (0° bevel)
position move the saw arm
to the left and push in the 0°
bevel adjuster.
Return the saw blade to
the vertical position, it will
automatically stop at the 0° bevel position.
Tighten the bevel lock.
Clamp assembly
The clamp assembly (10) can be mounted to the fence,
either side of the saw blade, to suit the task at hand (Fig. G).
Use the clamp assembly lock (11) at the back of the fence
to secure the clamp assembly in position (Fig. H).
Spindle lock button
The spindle lock button
(26) prevents the blade in
the saw from rotating (Fig. I).
Depress and hold the
spindle lock button while
installing, changing, or
removing the blade.
Rotating lower blade
guard
The rotating lower blade
guard (12) provides
protection from both sides of
the blade (Fig. J). It retracts
over the upper blade guard
(9) as the saw is lowered into
the workpiece.
Dust bag
The dust bag (15) fits over
the dust extraction port (27).
For more efficient operation,
empty the dust bag when it
is no more than half full. This
allows better air flow through
the bag (Fig. K).
Attaching the
side bars
The side support bars (37)
help to support the material
when working with long
workpieces. There are two
location holes (33) for a
support bar on either side of
the table. Loosen the lock
screws (34) with the 6mm
hex key. Ensure the side bars
are fully inserted before using
G H
E
F
I
J
K
L
