Model H8218 Mini Die Grinder
-6
-

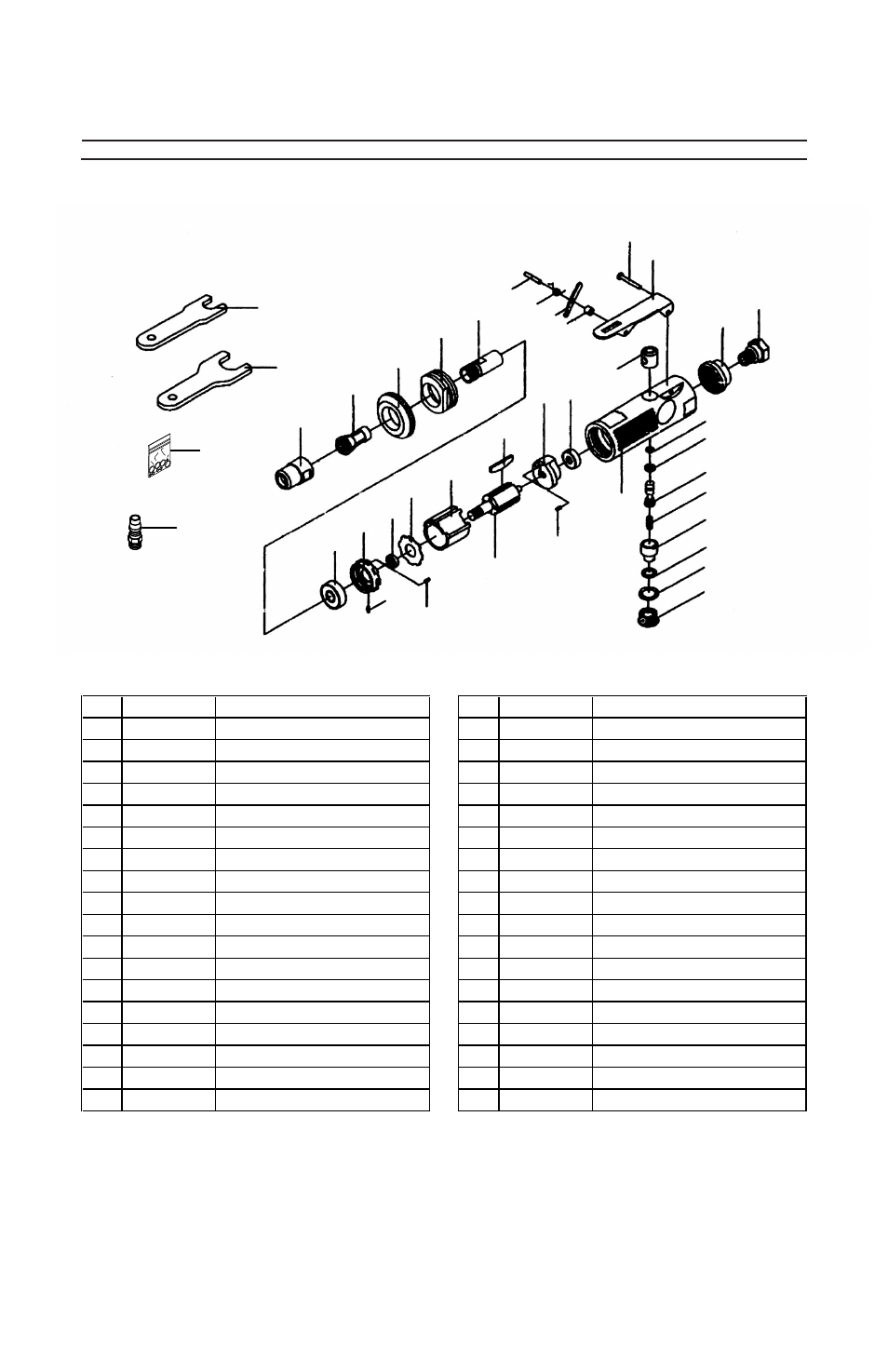

PARTS LIST
�
�
�
�
�
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PH8218001 HOUSING
20
PH8218020 END PLATE
2
PH8218002 VALVE STEM SEAT
21
PH8218021 PIN 2 X 6
3
PH8218003 TRIGGER
22
PH8218022 ROTOR
4
PH8218004 TRIGGER THROTTLE
23
PH8218023 ROTOR BLADE
5
PH8218005 TORSION SPRING
24
PH8218024 CYLINDER
6
PH8218006 TRIGGER RING
25
PH8218025 SPECIAL WASHER
7
PRP64M
ROLL PIN 3 X 18
26
PH8218026 BUSHING
8
PRP16M
ROLL PIN 3 X 25
27
PH8218027 FRONT PLATE
9
POR5004
O-RING 3.5 X 1.5
28
PRP54M
ROLL PIN 1.5 X 4
10
POR0004
O-RING 4 X 2
29
P608
BALL BEARING 608Z
11
PH8218011 VALVE STEM
30
PH8218030 CHUCK SEAT
12
PH8218012 COMPRESSION SPRING
31
PH8218031 LOCK RING
13
PH8218013 AIR REGULATOR
32
PH8218032 PROTECTING RUBBER
14
PH8218014 O-RING 7 X 2
33
PH8218033 COLLET
15
PORP011-2 O-RING 11 X 2.4
34
PH8218034 COLLET NUT
16
PH8218016 SCREW CAP
35
PH8218035 12MM WRENCH
17
PH8218017 MUFFLE COVER
36
PH8218036 17MM WRENCH
18
PH8218018 AIR INLET PLUG
37
PH8218037 O-RING KIT
19
P625
BALL BEARING 625Z
38
PH8218038 1/4" NPT MALE AIR FITTING
