g0484 gear head Mill/drill

-19-

To determine and set the mill to the needed

cutting RpM:

1. select the cutting speed required for the

material of your workpiece using the table in

figure 15.

NOTICE

failure to follow RpM and feed Rate

Guidelines will shorten cutter life and give

poor workpiece results and may threaten

operator safety from ejected parts or broken

tools.

choosing Spindle

RpM

Never shift gears while mill/drill or mill is

running; otherwise, the gear teeth will be

chipped or broken.

NOTICE

cutting Speeds for High Speed Steel

(HSS) cutting tools:

Workpiece Material

Cutting speed (sfm)

Aluminum & alloys

300

Brass & Bronze

150

Copper

100

Cast iron, soft

80

Cast iron, hard

50

Mild steel

90

Cast steel

80

Alloy steel, hard

40

tool steel

50

stainless steel

60

titanium

50

plastics

300-800

Wood

300-500

2. Measure the diameter of your cutting tool in

inches.

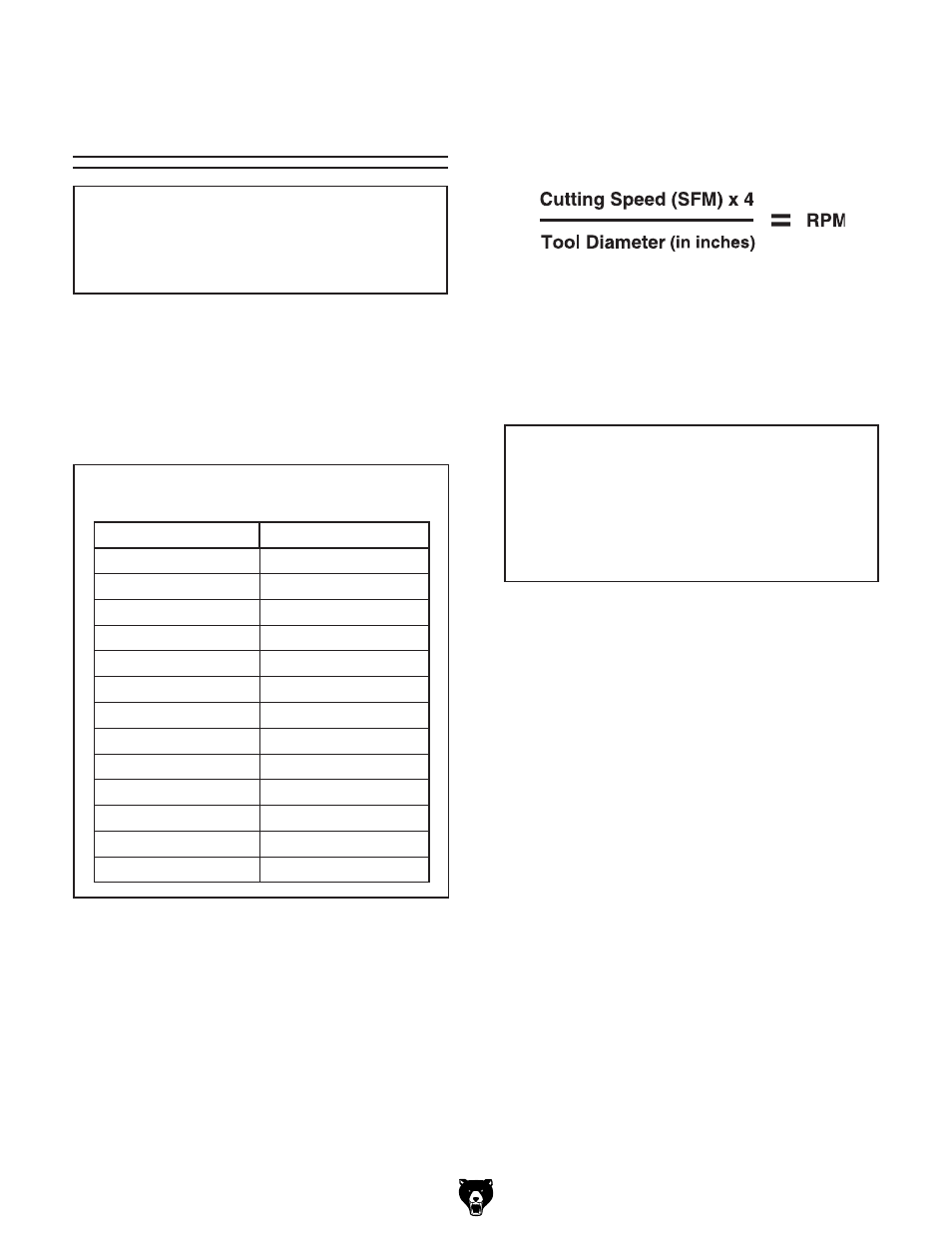

3. use the following formula to determine the

needed rpM for your operation:

Note: You will only be able to get an approxi-
mate rpM value with the gearbox range and
reduction levers.

4. Move the mill gearbox levers to the nearest

milling speed rpM.

figure 15. high speed steel cutting chart.

Note: Double the cutting speed for carbide
cutting tools. These values are a guideline
only. refer to the MACHINErY'S HANDBOOK
for more detailed information.
