Inventory
After all the parts have been removed from the
crate, you should have the following items with
your machine:
Inventory: (figure 3) Qty
A. downfeed handles ..................................... 3
b. Face Mill Assembly r8 ............................... 1
c. Adapter r8 - Jt3 ........................................ 1
D. headstock Elevation Crank ........................ 1
E. Wrench 24mm ............................................ 1
f. hex Wrenches, 4, 5, 6 mm ....................1 Ea
G. handwheels ................................................ 2
H. Chuck 1–16mm Jt3.................................... 1
I. Chuck Key .................................................. 1
J. handwheel handles ................................... 2
if any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
Some hardware/fasteners on the inventory
list may arrive pre-installed. check mount-
ing locations before assuming that any
items from the inventory list are missing.
Inventory
A
B
C
d
E
F
g
h
i

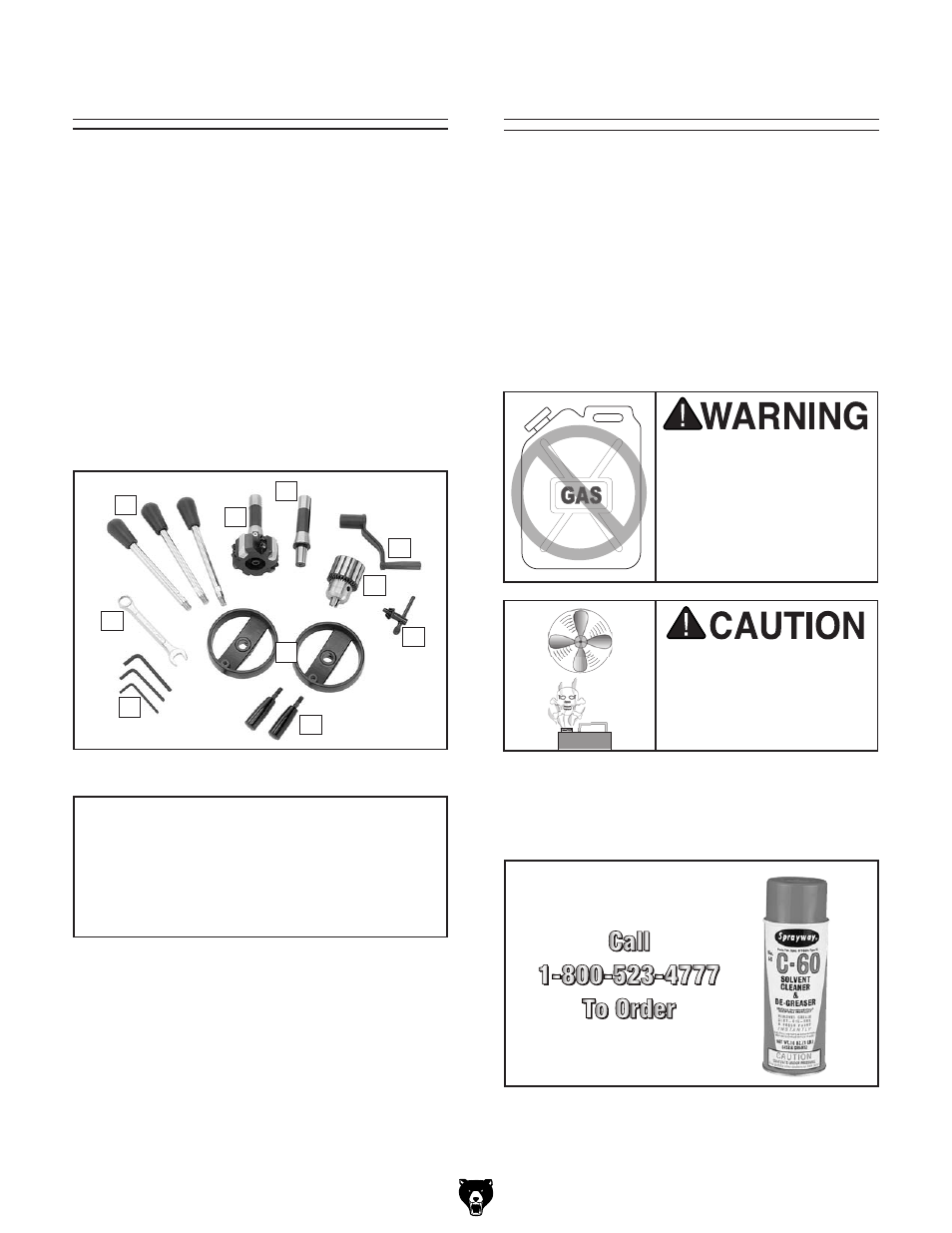

figure 3. Model g0484 inventory.
J
Clean up
the unpainted surfaces are coated with a waxy
oil to prevent corrosion during shipment. remove
this protective coating with a solvent cleaner or
degreaser, such as shown in
figure 4. For thor-
ough cleaning, some parts must be removed.
for optimum performance, clean all moving
parts or sliding contact surfaces. Avoid chlo-
rine-based solvents, such as acetone or brake
parts cleaner that may damage painted surfac-
es. Always follow the manufacturer’s instructions
when using any type of cleaning product.
clean up
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. DO
NOT use these products
to clean the machinery.
Many cleaning solvents
are toxic if inhaled.
Minimize your risk by only
using these products in a
well ventilated area.
G2544—Solvent cleaner & Degreaser
A great product for removing the waxy shipping
grease from your machine during clean up.
figure 4. Cleaner/degreaser available from
grizzly.
